Heating 20l rotary evaporator with vacuum pump and chiller from china factory

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

vacuum rotary evaporator with chiller and vacuum pump for lab distillation from china factory

Application for vacuum rotary evaporator with chiller and vacuum pump for lab distillation from china factory：

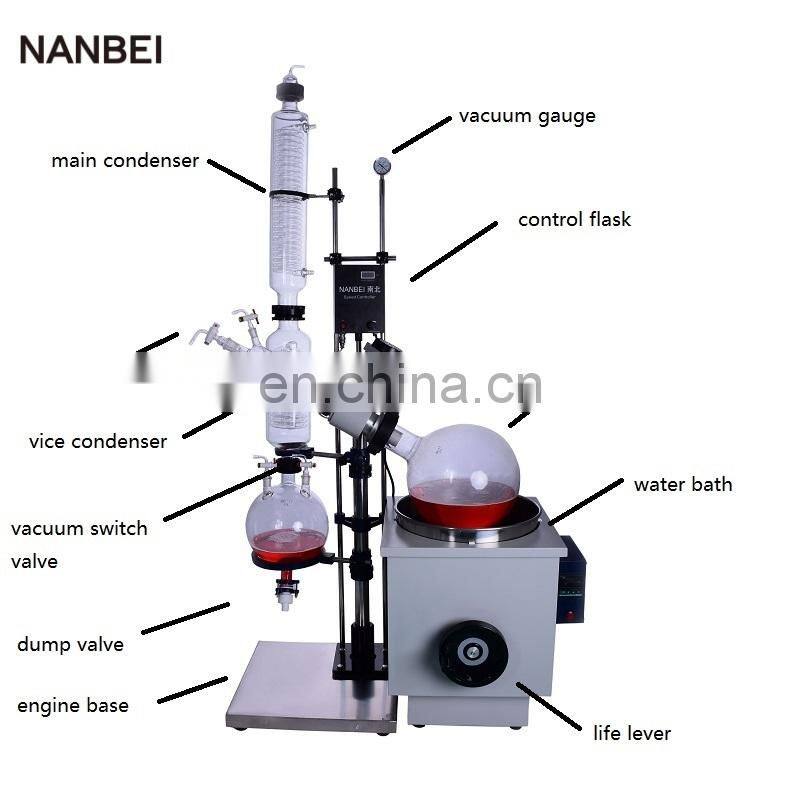

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.

Characters for vacuum rotary evaporator with chiller and vacuum pump for lab distillation from china factory:

Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad.

1, Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .

2, USES the main and secondary efficient double condenser to ensure high recovery rate.

3, Rotating bottle with nut connection, it is easy to load and unload.

4, There is tap valve under the collection bottle mouth, recycled solvent is very fast.

5, Feeding continuously.

6 Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.

7, Water bath with digital and continuous temperature controlling.

8, Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.

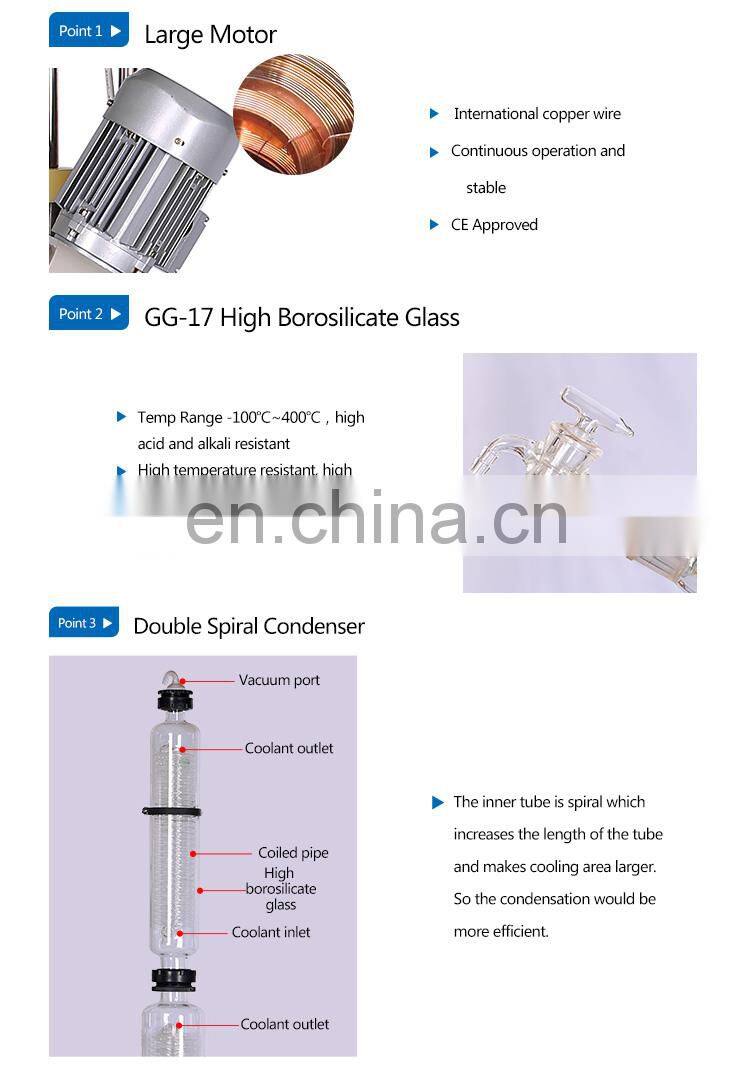

More Details Photos

Specification

Model	NBRE-1002	NBRE-2002	NBRE-3002
Glass material	GG-17	GG-17	GG-17
Holder material	Stainless steel	Stainless steel	Stainless steel
Pot shell Material	Spray anti-corrosion 490430540mm	Spray anti-corrosion 630534638mm	Spray anti-corrosion 710620700mm
Pot bravery	Stainless steel 350*220mm	Stainless steel 450*250mm	Stainless steel 000*280mm
Plate size	474*474	534*504	804*574
Evaporator flask	10L flange mouth:Φ95mm	20L flange mouth:Φ95mm	30L flange mouth:Φ125mm
Collect flask	5L flange mouth:Φ50mm	10L flange mouth:Φ60mm	20L flange mouth:Φ60mm
Vacuum degree	0.098Mpa	0.098Mpa	0.098Mpa
Rotary speed	0-110RPM	0-110RPM	0-110RPM
Rotary power	120W	120W	180W 220V/50HZ
Heating power	3KW	5KW	8KW 380V/50HZ
Heating temp.	0-400℃	0-400℃	0-400℃
Temp. accuracy	±1℃	±1℃	±1℃
Lifting stroke	180mm	180mm	180mm
Voltage	220V/50HZ	220V/50HZ	220V/50HZ
Dimension	9704801950	11705402200	15206202470mm
Packing size	1350350400 1280570660mm	1370700680 700680740mm	1450390440 1150840660 790730790mm
Packing weight	100kg	123kg	170kg
Configuration list
Speed mode	Frequency Control speed	Frequency Control speed	Frequency Control speed
Speed Display	digital	digital	digital
Temp. display	K type sensor digital display	K type sensor digital display	K type sensor digital display
Temp. control	intelligent temp. control	intelligent temp. control	intelligent temp. control
Sealing method	PTFE	PTFE	PTFE
Condenser	Vertical efficiency three reflux condenser Main:120640mm Deputy:135470mm	Vertical efficiency three reflux condenser Main:130680mm Deputy:160530mm	Vertical efficiency three reflux condenser Main:160840mm Deputy:160530mm
Continuous collection	non-return valve control	non-return valve control	non-return valve control
Lifting mode	Manual lifting	Manual lifting	Manual lifting
Temp. measurement methods	19#	19#	19#
Continuous feed	34# Standard mouth feed valve	34# Standard mouth feed valve	40# Standard mouth feed valve
Discharge mode	PTFE Discharge valve flange mouth:Φ50mm	PTFE Discharge valve flange mouth:Φ60mm	PTFE Discharge valve flange mouth:Φ60mm
Vacuum Display	Vacuum gauge	Vacuum gauge	Vacuum gauge
Option
Lifting mode	Automatic electric lifting
Collection device	Double collect bottle
Explosion-proof	Explosion-proof motor&Explosion-proof inverter EX120W
Frame portion	Spray PTFE
Bath pot Material	Full 304SUS
