Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines

Nanbei Instrument Limited
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines thumbnail-1
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines thumbnail-2
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines thumbnail-3
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines thumbnail-4
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines thumbnail-5
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines photo-1
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines photo-2
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines photo-3
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines photo-4
Industrial Large Capacity Vacuum Rotary Evaporator 50l Brushless Motor Plant Rotating Electric With Supporting Mahines photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2015
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Large Capacity Vacuum Rotary Evaporator 50l brushless Motor Power Support Plant Rotating Electric with supporting mahines

Application for Large Capacity Vacuum Rotary Evaporator 50l brushless Motor Power Support Plant Rotating Electric with supporting mahines ：

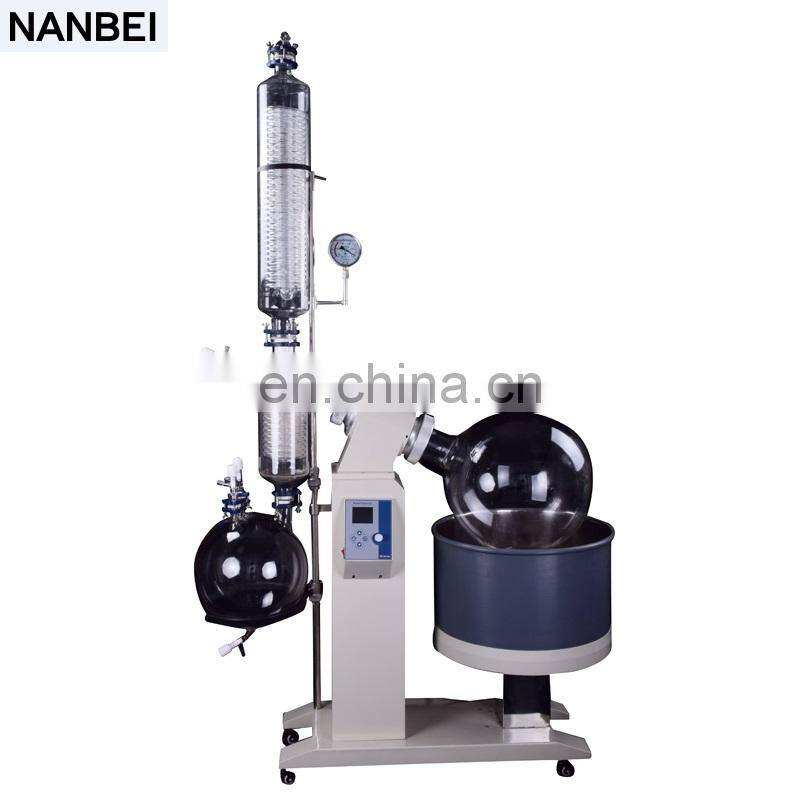

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
Characters for Large Capacity Vacuum Rotary Evaporator 50l brushless Motor Power Support Plant Rotating Electric with supporting mahines :

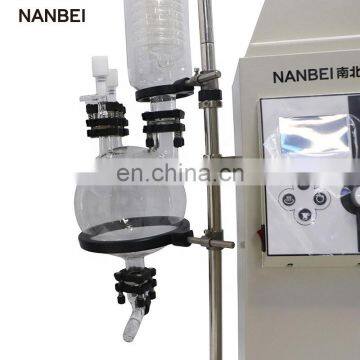

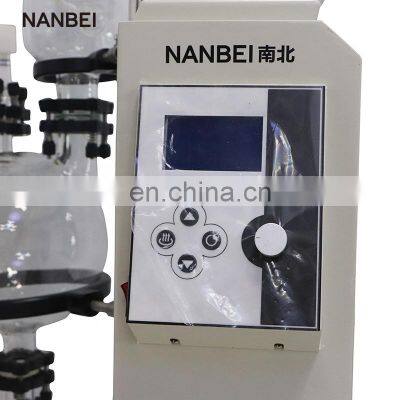

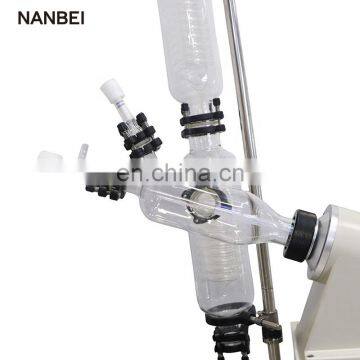

1.The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials. 2.All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion. 3.Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain a high degree of vacuum. 4.Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics. 5.Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery. 6.Continuous feeding for customer's convenience, valve type feeding valve socket tube. 7.Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts. 8.Check valve control, continuous discharge, the machine in working condition, the vacuum switch. 9.All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient Microprocessor-based power switch control. 10.LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature. 11. Brushless DC motor, stable rotation, no spark, slow down by force. 12.Bath electric lift, lift part of the deceleration by force motor, lifting process more stable. 13. The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature. 14.Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically power-off heating. 15.anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off. 16. If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.
More Details Photos
Specification
Model
NBR-1005
NBR-1000
NBR-1020
NBR-1050
power supply
220V/50HZ（various power supply and plug can be customized)
380V/50HZ
Rotating motor power
40W
60W
60W
100W
Lifting motor power
30W
40W
40W
60W
Heating power
3kw
4.5kw
5KW
8kw
Rotating flask(mm)
5L
10L Flange mouth:Φ280mm/Φ95mm
20L Φ355mm/Φ95mm flange mouth
50LFlange mouthΦ470mm/Φ125mm
collecting flask(mm)
3L
5L Flange mouth:Φ230mm/Φ50mm
10L Φ280mm/Φ60mm flange mouth
20L Flange mouthΦ355mm/Φ60mm
Vacuum degree
0.098Mpa
0.098Mpa
0.098Mpa
0.098Mpa
Rotary speed
0-120rpm/min
0-120rpm/min
0-120rpm/min
0-120rpm/min
Heating temp.
0-400C
0-400C
0-400℃
0-400C
Glass temp range
-80C to 250C
-80C to 250C
-80-250℃
-80C to 250C
Condenser size(mm)
Vertical double serpentine tube
MainΦ130*640H
DeputyΦ130*410H
mainΦ130×680H
DeputyΦ130×410H
MainΦ160*840H
DeputyΦ160*480H
Feed valve
Φ35 flange mouth
Φ35 flange mouth
Φ35 flange mouth
Φ35 flange mouth
Release valve
Φ35 flange mouth*2pcs
Φ35 flange mouth*2pcs
Φ35 flange mouth*2pcs
Φ35 flange mouth*2pcs
Lifting Distance
0~150mm
0-180mm
0-180(mm)
0-180mm
Temp controlling accuracy
±1C
±1C
±1C
±1C
Didcharge valve
15mm glass and lean discharge port
10mm glass and lean discharge port
￠10mm glass and lean discharge port
15mm glass and lean discharge port
Bath size/volume(mm)
Φ250*120H
Φ350*220H
about 21L
Φ450×250H about39L
Φ550×320H about76L
Dimension(mm)
700*335*1009
1000*480*1780
1200*500*2000
1400*600*2250
packing size(mm)
1040*620*410
1070*520*1210
about 0.67m3
1070L×520W×1210H  about0.67m3
1270L×620W×1440H about1.133m3
gross weight
38kg
95kg
102KG
118KG
