Product Description

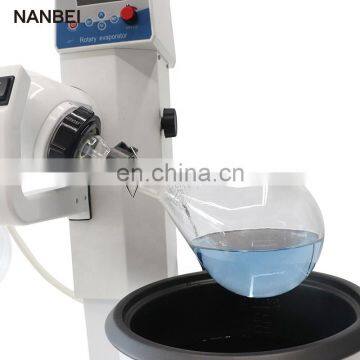

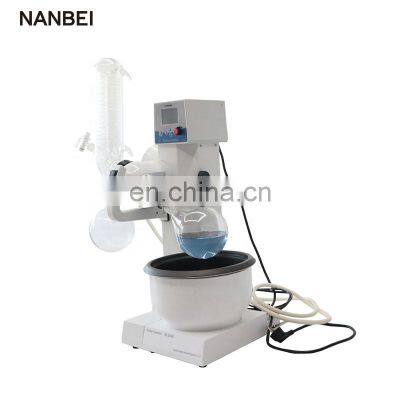

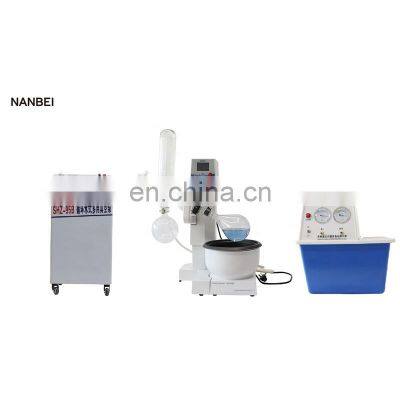

1L Small laboratory distillation equipment rotary evaporator with vacuum pump & chiller

Application for 1L Small laboratory distillation equipment rotary evaporator with vacuum pump & chiller：
Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.
Characters for 1L Small laboratory distillation equipment rotary evaporator with vacuum pump & chiller:

Rotators consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-180 RPM range, it has reached the advanced level at home and abroad.
1,the move up and down lift system adopts motor revolved lifting structure.
2,the condenser adopted two kinds of optional structure , one is double line convection principle, the other one is a single line with interlayer water, ice, and dry ice container. Used in organic solvent evaporation. And the vertical condenser saves space.
3, the axis of rotation use high temperature high borosilicate glass, heat resistant and good sealing. Sealing parts use +two-way sealing, and the effect is good.
4, it is equipped with heating trough, and built-in resistance wire heater, heating temperature is from room temperature to 99 ℃.
5, the device is equipped with temperature indicator, intelligent temperature controlling, digital display, temperature control implemented by PT100 sensors. When the water temperature reaches primary temperature, the controller automatically cut off the heater power; When is lower than the water, temperature controller automatically turn on the heater power; To realize the tank water temperature be constant.
6, B type, E type is equipped with speed display, can accurately display rotation speed, E type is LCD screens.
More Details Photos
Specification
Model
NRE-3000A
NRE-3000B
NRE-3000E
Glass meterial
GG-17
Holder material
aluminium alloy
Pot shell Material
aluminium alloy
Pot bravery
Stainless steel     250*130mm
Evaporator flask
3L    Flange mouth:Φ50mm
Collect flask
2L 35#
Rotary speed
0-180RPM
Rotary power
40W
40W Brushless motor
Heating power
1.5KW
Heating temp.
0-99℃
Temp. accuracy
-1
Lifting power
15W
Lifting stroke
120mm
Voltage
220/110V 50/60HZ
Dimension
660*420*830
Packing size
630*560*540
Packing weight
30kg
Configuration list
Speed mode
No
Digital
LCD
Speed Display
Digital
Temp. display
Digital
Temp. control
Intelligent temp. control
Sealing method
PTFE
Condenser
Vertical 100*510
Lifting mode
Electric automatic lifting
Continuous feed
19# Standard mouth feed valve
Option
Splash device
Transparent cover for heating bath
