Mini vacuum evaporation machine
•Feature and Description
Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set
of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed,
it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display

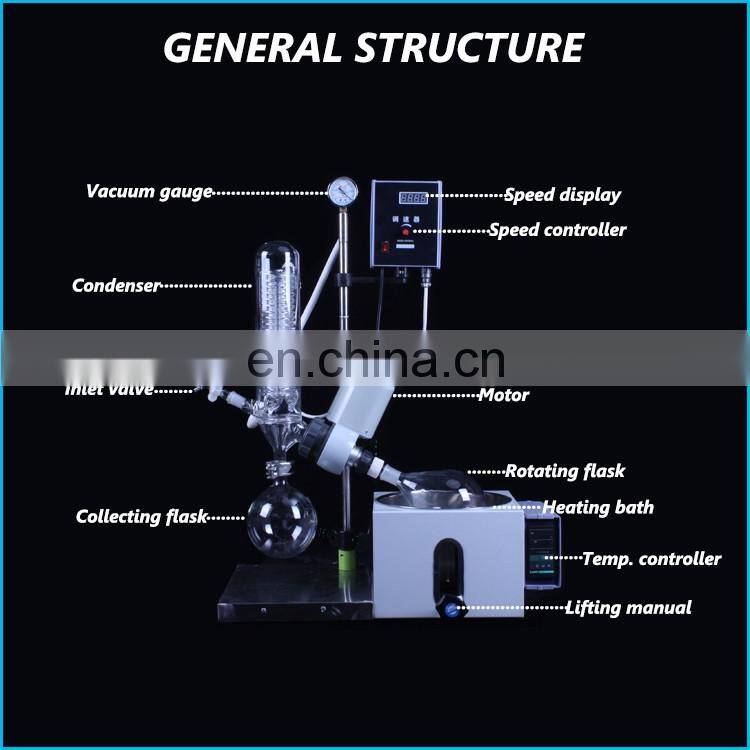

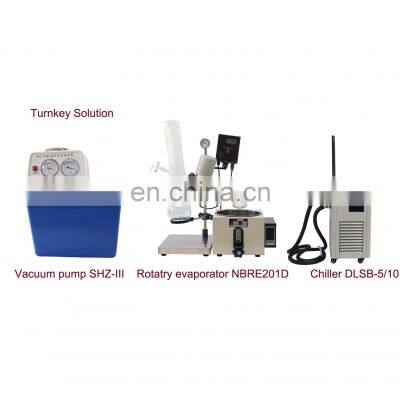

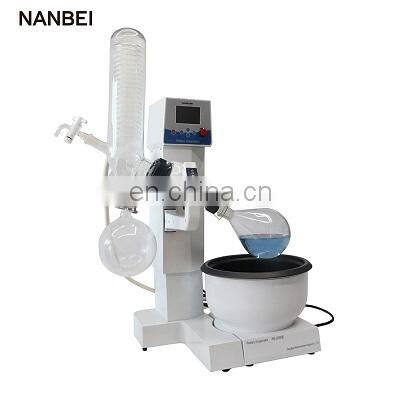

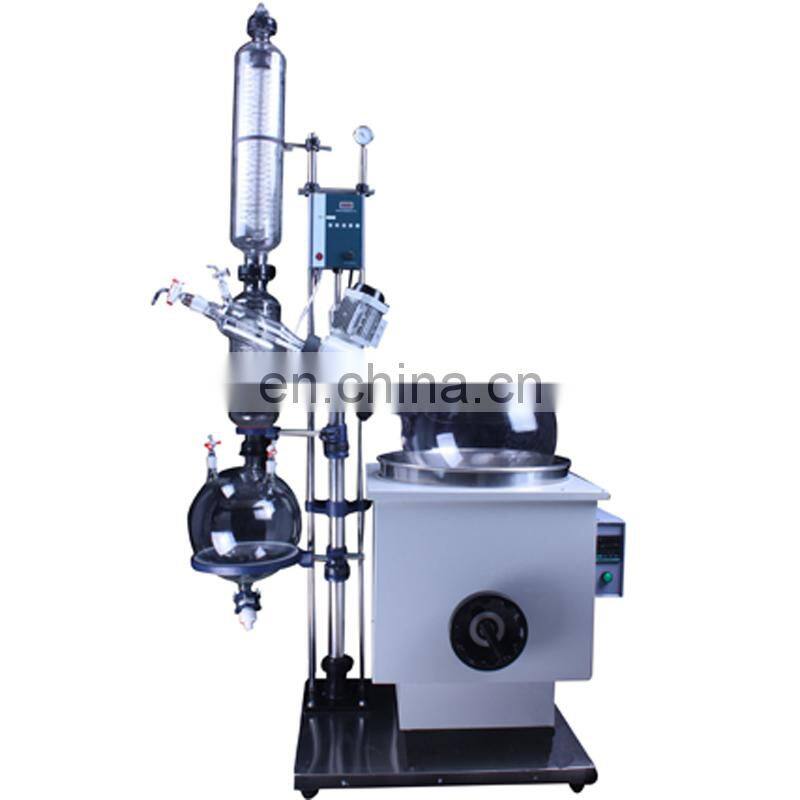

•Picture for Our product
•Usage and Application
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher
learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing
experiments when they do extraction and concentration.
•Technical data
|
Model |
NBRE-201D |
NBRE-301 |
NBRE-501 |
|
Glass meterial |
GG-17 |
||
|
Holder material |
Stainless steel |
||
|
Pot shell Material |
aluminium alloy 270*270*195mm |
aluminium alloy 270*296*240mm |
aluminium alloy 310*320*240mm |
|
Pot bravery |
Stainless steel 250*140mm |
Stainless steel 255*170mm |
Stainless steel 280*170mm |
|
Plate size |
280*330 |
350*330 |
350*330 |
|
Evaporator flask |
2L 24# |
3L flange mouth:Φ50mm |
5L flange mouth:Φ50mm |
|
Collect flask |
1L 24# |
2L 35# |
3L 35# |
|
Vacuum degree |
0.098Mpa |
||
|
Rotary speed |
0-120RPM |
||
|
Rotary power |
30W |
40W |
40W |
|
Heating power |
1.5KW |
2KW |
2KW |
|
Heating temp. |
0-400℃ |
||
|
Temp. accuracy |
-1℃ |
||
|
Lifting stroke |
120mm |
||
|
Voltage |
220/110V 50/60HZ |
||
|
Dimension |
700*440*885mm |
660*330*970 |
700*335*1009 |
|
Packing size |
590*460*460mm |
1000*460*450 |
1040*620*410mm |
|
Packing weight |
21kg |
38kg |
38kg |
•Packing and Shipping
•Related Product
| New type automatic rotary evaporator | 10-50L rotary evaporator |
![]() |
![]() |
1.Company Show
2.Factory Show
1.Certification
2.Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
