Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator

Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator thumbnail-1
Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator thumbnail-2
Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator thumbnail-3
Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator thumbnail-4
Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator thumbnail-5
Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator photo-1

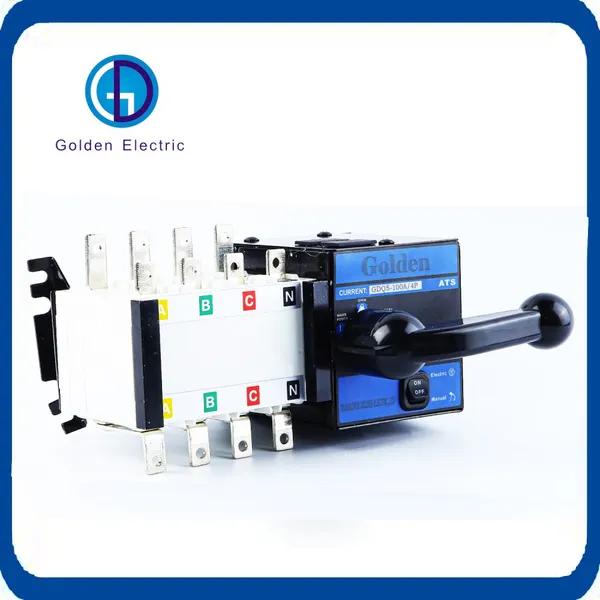

Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator photo-2

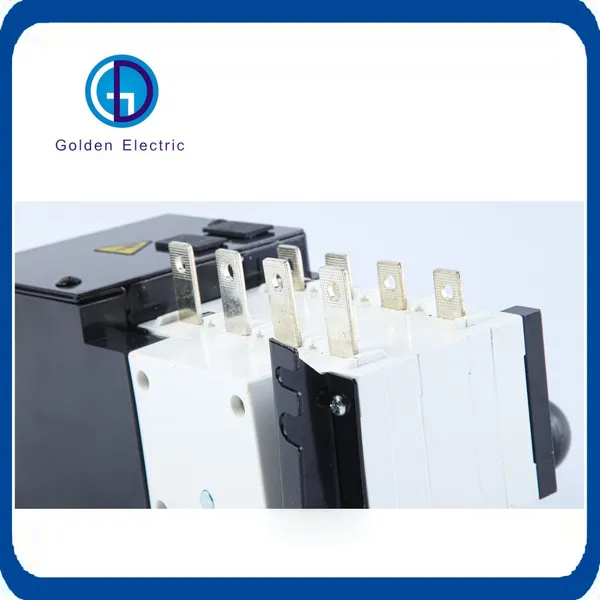

Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator photo-3

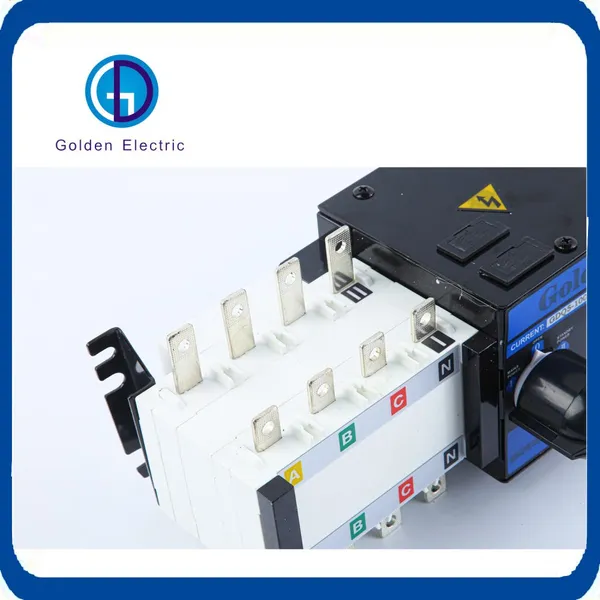

Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator photo-4

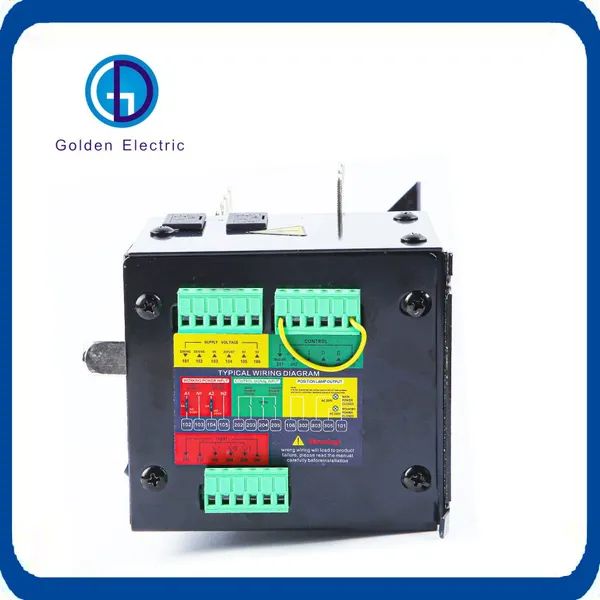

Automatic Transfer Switch 100A 250A 400A 630A 1000A 3200A Changeover Switch for Ganerator photo-5
US$ 25 - 1000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Golden electric or customize
Place of Origin:
China
Model Number:
GDQ5
Contact Supplier Request Quote Chat Now
Guangzhou Golden Electric Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
6 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Golden electric or customize
Place of Origin China
Model Number GDQ5


Product Description

GDQ5 Dual Power Automatic Transfer Switch Series is a kind of new automatic transfer switch gathered switch and logic controller,achieve mechanic and electricity turn into a integral whole. It is suitable for using in the distribution equipment in industry and business with rated insulating voltage up to 690V, rated frequency 50Hz/60Hz, rated voltage 380V, conventional heating current up to 3200A ,supplying for switch automatically of Normal power and reserve power in power system or switch automatically and safety isolation of two sets load device etc. It can be used for hospital, shop, bank, high building, coal mine, telecommunication, iron mine, superhighway, airport, industrial flowing water line and installation etc.important situation where disallow power supply failure.
The switch can achieve full-automatic, compulsory "0", remote control, urgent manual-operation;while have lack phase examination and protection, under/over voltage examination and protection, frequency examination and protection and delay regulation, electric mechanism interlock etc.


Product Details


Item Specification PCS/CTN Item Size(CM) Carton Size(CM) K.W.(KG) N.W.(KG)
GDQ5-100-4P 16-100A 6 25*15*14 38*30*36 25 24
GDQ5-160-4P 125-160A 4 45*36.5*48 45*36.5*48 25.2 24.2
GDQ5-250-4P 180-250A 2 46.3*44.2*29.5 46.3*44.2*29.5 19.25 18.25
GDQ5-400-4P 315-400A 1 50.5*30.5*33 50.5*30.5*33 17.85 16.85
GDQ5-630-4P 500-630A 1 50.5*30.5*33 50.5*30.5*33 18.75 17.75
GDQ5-1000-4P 800-1000A 1 71*40*37 71*40*37 46.5 44.5
GDQ5-1250-4P 1250A 1 71*40*37 71*40*37 50 48
GDQ5-1600-4P 1600A 1 71*40*37 71*40*37 55 53
GDQ5-2000-4P 2000A 1 71*50*60 71*50*60 91 89
GDQ5-2500-4P 2500A 1 71*50*60 71*50*60 101 99
GDQ5-3200-4P 3200A 1 71*50*60 71*50*60 111 102





Product Parameters

Frame Class 100 250 630 1600 3200
Rate current In(A) 16 20 25 32 40 50 63 80 100 125 160 200 225 250 315 350 400 500 630 800 1000 1250 1600 2000 2500 3200
Rated insulation voltage(Ui) 690V 800V
Rated concussion withstand
voltage(Uimp)		 8KV
Rated working voltage(Ue) AC440V
Rated short-circuit
connection capacity		 8KA 17KA 26KA 67.5KA
Rated short-time
withstand current(lcw)		 5kA/30ms 10kA/60ms 12.6kA/60ms 32kA/60ms
Transfer time I-II or II-I 2.5s 1.2s 1.8s 2.4s
Using category AC-33iB
Control voltage AC220V
Rated frequency Start 20W 325W 355W 440W 600W
Normal 62W 74W 98W 120W
Weight(kg) 4Pole 4.2 6.3 10 18 19 46.5 50 55 91 101 111



Packing




Product Tags: Switch , ATS , Automatic Transfer Switch , Transfer Switch , ATS 100A , changeover switch , Automatic Changeover Switch , Auto switch for generator , ATS 250A
