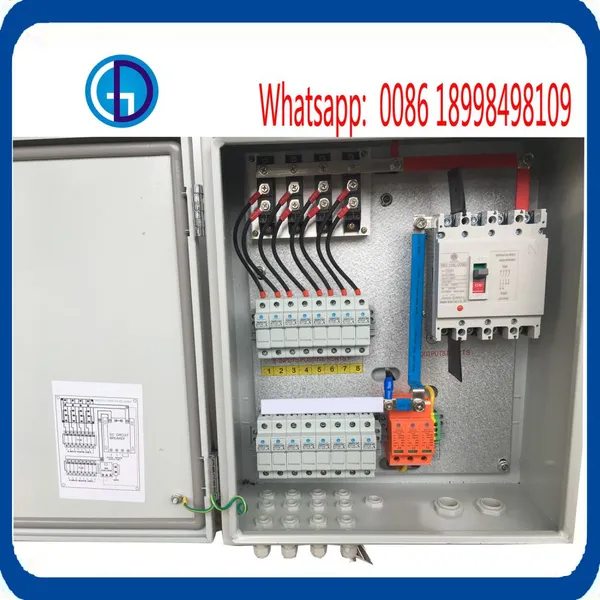

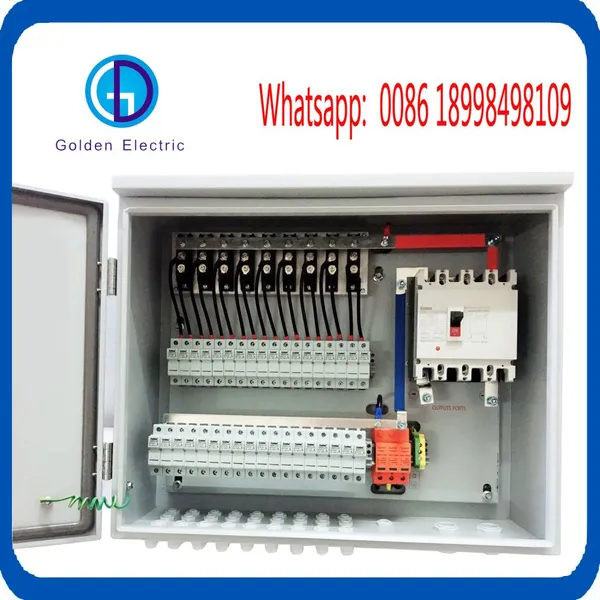

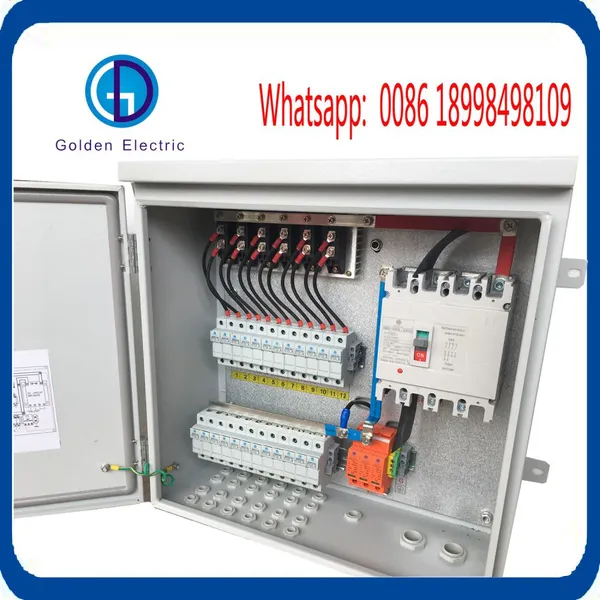

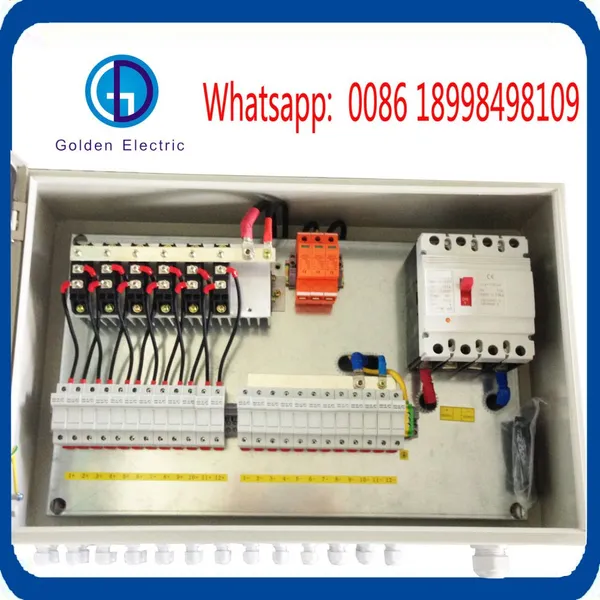

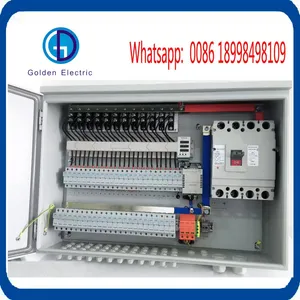

Help CenterSolar Metal DC PV Combiner Box With Anti-Reverse Diode Combination Panel Solar System Connection Box PV Array Box 1000V DC Solar Junction Box
Related Products
-
2 In 2 Out PV Combiner Box DC600V, IP65 Outdoor Solar PV Junction Box 32A Solar Photovoltaic Combiner Box for Off-grid On-grid Solar Power SystemUS$ 25 - 1000MOQ: 1 Piece -
2 In 2 Out 1000V PV Combiner Box DC1000V, IP65 Outdoor Solar PV Junction Box 32A Solar Photovoltaic Combiner Box for Solar Power SystemUS$ 25 - 300MOQ: 1 Piece
-
4 In 4 Out 1000V PV Combiner Box DC600V, IP65 Outdoor Solar PV Junction Box 32A Solar Photovoltaic Combiner Box for Solar Power SystemUS$ 25 - 300MOQ: 1 Piece
-
2 In 2 Out PV Combiner Box 1000V DC IP65 Waterproof Solar Junction Box With Lightning Surge Protection for Solar Panel SystemUS$ 25 - 300MOQ: 1 Piece
-
2 In 1 Out PV Combiner Box DC500V IP65 Waterproof Solar Junction Box With DC MCB & SPD Surge Protection for Solar PV Panel SystemUS$ 25 - 95MOQ: 1 Piece
GD-PV4/1 PV combiner box bus synthetic DC input of 4 PV components to 1 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types: intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.
Design and configuration strictly accordance with the "Technical specification for photo-voltaic junction equipment'' CGC/GF 037:2014.
IP65 protection grade.Provide users with a safe, brief, beautiful and applicable photo-voltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by users requirements.
Product Parameters:
Name |
GD-PV4/1 |
|
Electric parameter | ||
System maximum dc voltage |
1000 |
|
Maximum input current for each string |
15A |
|
Maximum input strings |
1 |
|
Maximum output switch current |
20A/32A |
|
Number of inverter MPPT |
N |
|
Number of Output strings |
1 |
|
Lightning protection | ||
Category of test |
II grade protection |
|
Nominal discharge current |
20kA |
|
Maximum discharge current |
40kA |
|
Voltage protection level |
3.8kV |
|
Maximum continuous operating voltage Uc |
1050V | |
Poles |
3P |
|
Structure characteristic |
Plug-push module |
|
System | ||
Protection grade |
IP65 |
|
Output switch |
DC isolation switch(standard)/ DC circuit breaker(optional) |
|
Waterproof Connectors |
Standard |
|
PV dc fuse |
Standard |
|
PV surge protrctor |
Standard |
|
Monitoring module |
optional |
|
Preventing diode |
optional |
|
Box material |
Metal |
|
Installation method |
Wall mounting type |
|
Operating Temperature |
-25ºC~+55ºC |
|
Elevation of temperature |
2km |
|
Permissible relative humidity |
0-95%,no condensation |
|
Product Details Show:
♦High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
♦Strong adaptability
IP65 design,waterproof,anti dust and anti ularaviolet.
Strict test for high and low temperature,used widely/
The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
♦Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.
