SNS MA Series Wholesale Stainless Steel Mini Pneumatic Air Cylinders

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

SNS MA Series wholesale stainless steel mini pneumatic air cylinders

Banner

Product Description

Bore Size(mm)	16	20	25	32	40
Acting Mode	Double Acting
Working Media	Cleaned Air
Working Pressure	0.1~0.9Mpa(1~9kgf/cm²)
Proof Pressure	1.35Mpa(13.5kgf/cm²)
Working Temperature	-5~70℃
Buffering Mode	Unadjustable Buffer
Port Size	M5	1/8
Body Material	Stainless Steel

Bore Size(mm)	Standard Stroke(mm)	Max.Stroke(mm)Max.Stroke(mm)	Allowable Stroke(mm)
12	25 50 75 100 125 150 175 200 250 300	500	800
16	25 50 75 100 125 150 175 200 250 300	500	800
20	25 50 75 100 125 150 175 200 250 300	800	1200
25	25 50 75 100 125 150 175 200 250 300	800	1200
40	25 50 75 100 125 150 175 200 250 300	1200	1500

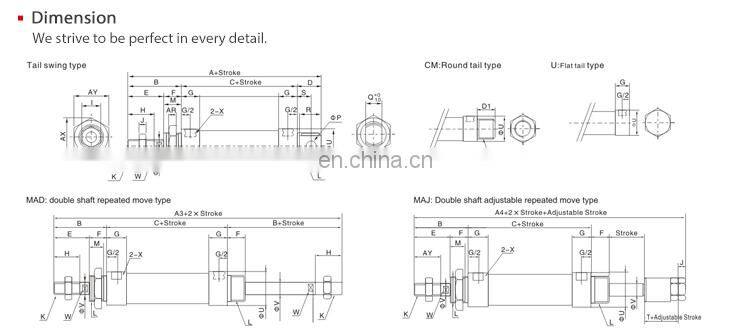

Bore Size(mm)	A	A1	B	C	D	D1	E	F	G	H	I	J	K
16	114	98	38	60	15	16	22	16	10	16	10	5	M6*1
20	137	116	40	76	21	12	28	12	16	20	12	6	M8*1.25
25	141	120	44	76	21	14	30	14	16	22	17	6	M10*1.25
32	147	120	44	76	27	14	30	14	16	22	17	6	M10*1.25
40	149	122	46	76	27	14	32	14	16.7	24	17	19	M12*1.25

Bore Size(mm)	L	M	P	Q	R	S	U	V	W	X	AR	AX	AY
16	M6*1.5	14	6	12	14	9	21	6	5	M5	6	25	22
20	M22*1.5	10	8	16	19	12	27	8	6	G1/8	7	33	29
25	M22*1.5	12	8	16	19	12	30	10	8	G1/8	7	33	29
32	M24*2.0	12	10	16	25	15	35	12	10	G1/8	8	37	32
40	M30*2.0	12	12	20	25	15	41.3	16	14	G1/8	9	47	41

Certificate

Packaging & Shipping

FAQ

Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.

Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.

Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.

Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.

Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.

Q6. Do you accept OEM business?A6. We do OEM .

Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.

Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
