Home > Products > Control Element > Explosion-proof Solenoid Valves AC110V High Pressure Normally Close Explosion-proof Solenoid Valves

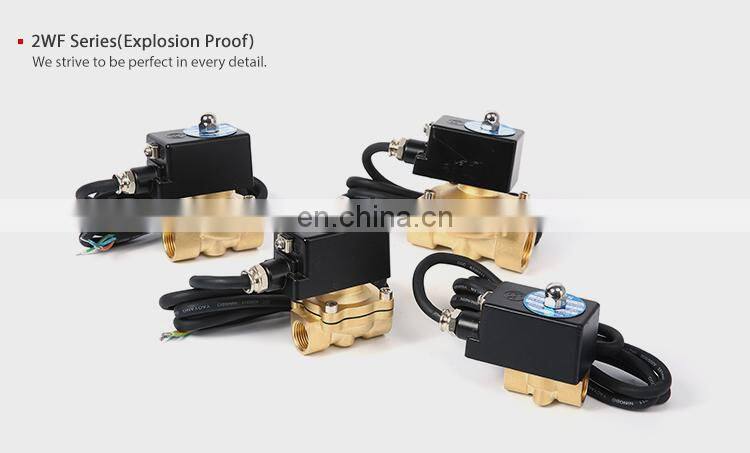

Explosion-proof Solenoid Valves AC110V High Pressure Normally Close Explosion-proof Solenoid Valves
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
SNS 2WF040-10 110V explosion-proof normally closed pneumatic large diameter coil brass solenoid valve
-
SNS 2WF series 110V explosion-proof normally closed pneumatic large diameter coil brass solenoid valve
-
SNS 4M420-15 series single and double head electric coil DC pneumatic aluminum alloy solenoid valve
-
SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve
-
SNS 4M410-15 Series Aluminum Alloy Electric Coil DC Pneumatic Control Solenoid Valve
-
SNS 4M120-06 Series Aluminum Alloy Solenoid Valve Flow Control Solenoid Valve
Product Description
Banner
CHINA SNS PNEUMATIC
------ Leading supplier of pneumatic components in China -----
Products Description
Model | 2WF160-15 | ||||||||||||
Fluid | Water / Air / Oil | ||||||||||||
Action Mode | Pilot-operated Type | ||||||||||||
Type | Normal Closed | ||||||||||||
Port Diameter(mm2) | 4 | 16 | 20 | 25 | 35 | 40 | 50 | ||||||
CV Valve | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||||||
Port size | G3/8 | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | G2 | ||||||
Fluid Viscocity | Under 20 CS | ||||||||||||
Working Pressure | Water/Oil: 0~0.5MPa Air: 0~0.7MPa | ||||||||||||
Proof Pressure | 1.0MPa | ||||||||||||
Temperature | -5~85℃ | ||||||||||||
Working Voltage Range | ±10% | ||||||||||||
Material Body | Brass | ||||||||||||
Material Seal | NBR | ||||||||||||
Coil Power | 20VA | ||||||||||||

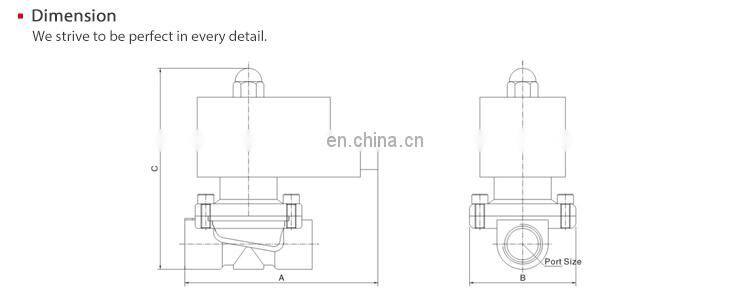

Model | Port Size | A | B | C |
2WF160-15 | G1/2 | 109.5 | 55.5 | 107 |
Certifications
FAQ
Q1. Are you a manufacturer or a trading company?
A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?
A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?
A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?
A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?
A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?
A6. We do OEM .
Q7. What market do you already sell to?
A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?
A8. We have ISO9001, CE, CCC, etc.
