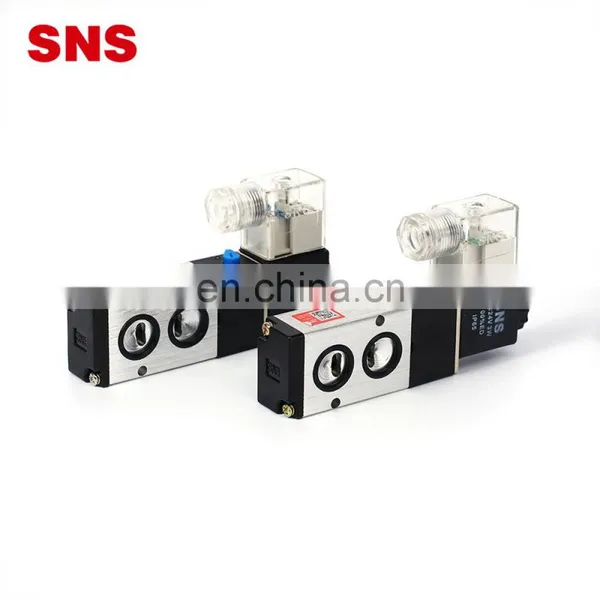

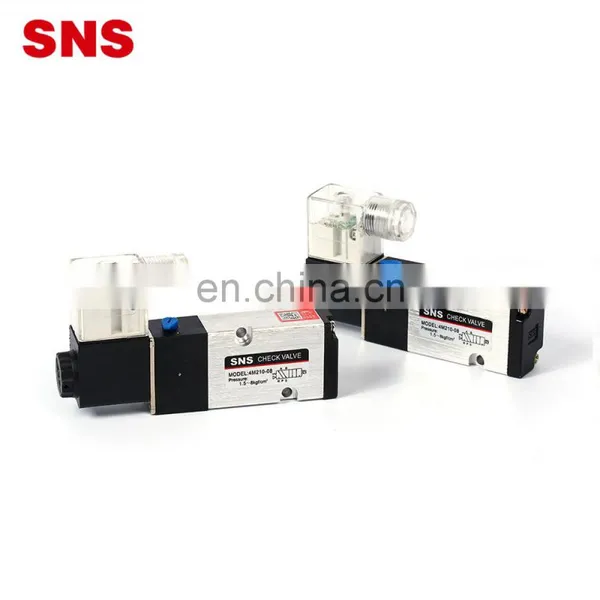

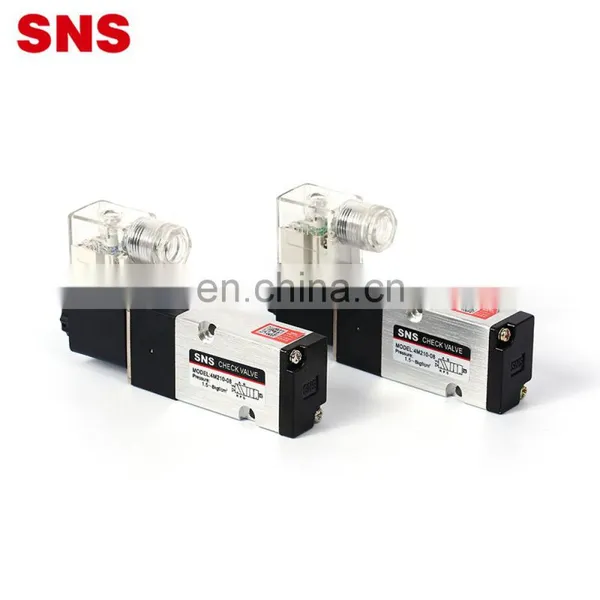

SNS 4M420-15 Series Single and Double Head Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid ValveNegotiableMOQ: 1 -
SNS 4M410-15 Series Aluminum Alloy Electric Coil DC Pneumatic Control Solenoid ValveNegotiableMOQ: 1
-
SNS 4M120-06 Series Aluminum Alloy Solenoid Valve Flow Control Solenoid ValveNegotiableMOQ: 1
-
SNS 4M310-08 Series Electric Coil Pneumatic Aluminum Alloy Solenoid ValveNegotiableMOQ: 1
-
SNS 4M110-06 Pneumatic Aluminum Alloy Solenoid Valve Pneumatic Control Solenoid ValveNegotiableMOQ: 1
Banner
CHINA SNS PNEUMATIC
------ Leading supplier of pneumatic components in China -----
Products Description
Model
|
4M420-15
|
||||||||||||
Working Media |
Air |
||||||||||||
Action Mode |
Intermal Pilot Type |
||||||||||||
Postion |
5/2 Port |
||||||||||||
Effectice Section Area |
50.0mm2（Cv=2.79） |
||||||||||||
Port Size |
Inlet=Outlet=G1/2 |
||||||||||||
Lubrication |
No Need |
||||||||||||
Working Pressure |
0.15-0.8MPa |
||||||||||||
Proof Pressure |
1.0MPa |
||||||||||||
Working Temperature |
0~60℃ |
||||||||||||
Voltage Range |
±10% |
||||||||||||
Power Consumption |
AC:5.5VA DC:4.8W |
||||||||||||
Insulation Grade |
F Level |
||||||||||||
Protection Class |
IP65(DIN40050) |
||||||||||||
Material Body |
Aluminum Alloy |
||||||||||||
Material Seal |
NBR |
||||||||||||
Connecting Type |
Plug Type |
||||||||||||
Max.Operating Frequency |
5 Cycle/Sec |
||||||||||||
Min.Excitation Time |
0.05 Sec |
||||||||||||
Certifications
FAQ
Q1. Are you a manufacturer or a trading company?
A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?
A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?
A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?
A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?
A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?
A6. We do OEM .
Q7. What market do you already sell to?
A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?
A8. We have ISO9001, CE, CCC, etc.
