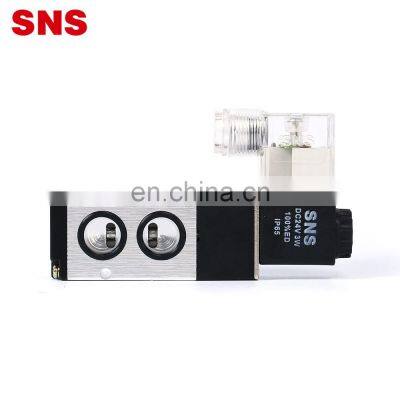

SNS 4M310-08 Series Electric Coil Pneumatic Aluminum Alloy Solenoid Valve
CHINA SNS PNEUMATIC



Model | 4M310-10 | ||||||||||||
Working Media | Air | ||||||||||||
Action Mode | Intermal Pilot Type | ||||||||||||
Postion | 5/2 Port | ||||||||||||
Effectice Section Area | 30.0mm2(Cv=1.68) | ||||||||||||
Port Size | Inlet=G3/8, Outlet=G1/4 | ||||||||||||
Lubrication | No Need | ||||||||||||
Working Pressure | 0.15-0.8MPa | ||||||||||||
Proof Pressure | 1.0MPa | ||||||||||||
Working Temperature | 0~60℃ | ||||||||||||
Voltage Range | ±10% | ||||||||||||
Power Consumption | AC:5.5VA DC:4.8W | ||||||||||||
Insulation Grade | F Level | ||||||||||||
Protection Class | IP65(DIN40050) | ||||||||||||
Material Body | Aluminum Alloy | ||||||||||||
Material Seal | NBR | ||||||||||||
Connecting Type | Plug Type | ||||||||||||
Max.Operating Frequency | 5 Cycle/Sec | ||||||||||||
Min.Excitation Time | 0.05 Sec | ||||||||||||
