SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve

SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve photo-1

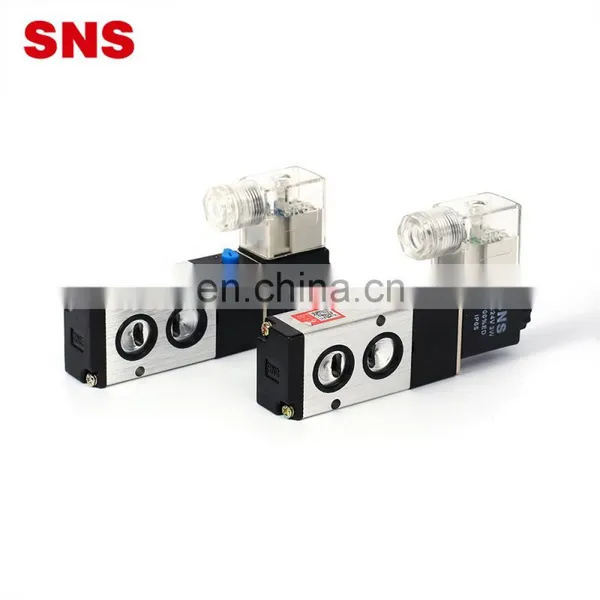

SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve photo-2
SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve photo-3
SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve photo-4
SNS 4M320-10 Series Electric Coil DC Pneumatic Aluminum Alloy Solenoid Valve photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Banner

CHINA SNS PNEUMATIC

------ Leading supplier of pneumatic components in China -----
Products Description

Model

4M320-10
Working Media
Air
Action Mode
Intermal Pilot Type
Postion
5/2 Port
Effectice Section Area
30.0mm2(Cv=1.68)
Port Size
Inlet=G3/8, Outlet=G1/4
Lubrication
No Need
Working Pressure
0.15-0.8MPa
Proof Pressure
1.0MPa
Working Temperature
0~60℃
Voltage Range
±10%
Power Consumption
AC:5.5VA DC:4.8W
Insulation Grade
F Level
Protection Class
IP65(DIN40050)
Material Body
Aluminum Alloy
Material Seal
NBR
Connecting Type
Plug Type
Max.Operating Frequency
5 Cycle/Sec
Min.Excitation Time
0.05 Sec
Certifications
FAQ
Q1. Are you a manufacturer or a trading company? A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time. Q2. What’s the payment term? A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later. Q3. How about the delivery time ? A3. 1-3 days for normal models. For big orders, it takes about 10-15 days. Q4. What is the standard of package? A4. Export standard package or special package according to customers' requirement. Q5. What kind of product quality does your factory offer? A5. We are top 3 supplier in Chinese market. We offer top quality to our clients. Q6. Do you accept OEM business? A6. We do OEM . Q7. What market do you already sell to? A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania. Q8. What kind of certificate do you have ? A8. We have ISO9001, CE, CCC, etc.
