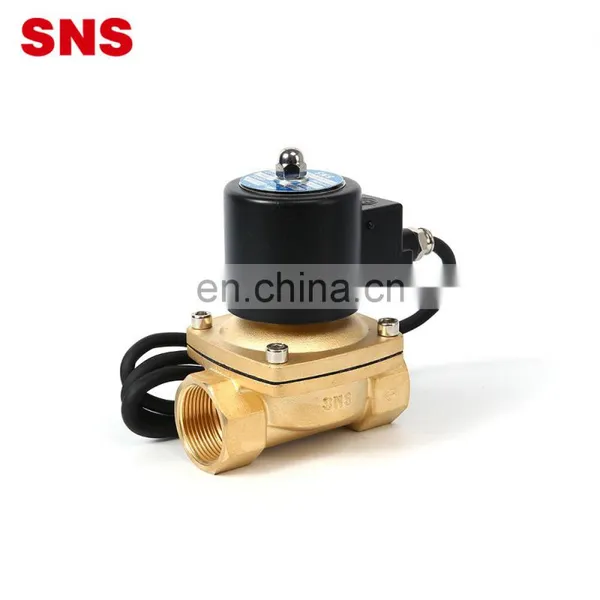

SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve

SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve thumbnail-1
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve thumbnail-2
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve thumbnail-3
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve thumbnail-4
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve thumbnail-5
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve photo-1
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve photo-2
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve photo-3
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve photo-4
SNS 2WF350-35 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
China SNS Pneumatic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Banner

CHINA SNS PNEUMATIC

------ Leading supplier of pneumatic components in China -----
Products Description
Model
2WF350-35
Fluid
Water / Air / Oil
Action Mode
Pilot-operated Type






Type
Normal Closed
Port Diameter(mm2)
4
16
20
25
35
40
50
CV Valve
0.6
4.8
7.6
12
24
29
48
Port size
G3/8
G1/2
G3/4
G1
G1 1/4
G1 1/2
G2
Fluid Viscocity
Under 20 CS
Working Pressure
Water/Oil: 0~0.5MPa Air: 0~0.7MPa
Proof Pressure
1.0MPa
Temperature
-5~85℃
Working Voltage Range
±10%
Material Body
Brass
Material Seal
NBR
Coil Power
20VA
Model
Port Size
A
B
C
2WF350-35
G1 1/4
136
92.5
160
Certifications
FAQ
Q1. Are you a manufacturer or a trading company? A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time. Q2. What’s the payment term? A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later. Q3. How about the delivery time ? A3. 1-3 days for normal models. For big orders, it takes about 10-15 days. Q4. What is the standard of package? A4. Export standard package or special package according to customers' requirement. Q5. What kind of product quality does your factory offer? A5. We are top 3 supplier in Chinese market. We offer top quality to our clients. Q6. Do you accept OEM business? A6. We do OEM . Q7. What market do you already sell to? A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania. Q8. What kind of certificate do you have ? A8. We have ISO9001, CE, CCC, etc.
