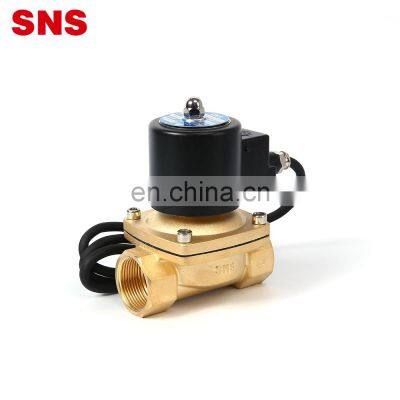

SNS 2WF200-20 110V Explosion-proof Normally Closed Pneumatic Large Diameter Coil Brass Solenoid Valve
CHINA SNS PNEUMATIC

Model | 2WF200-20 | ||||||||||||
Fluid | Water / Air / Oil | ||||||||||||
Action Mode | Pilot-operated Type | ||||||||||||
Type | Normal Closed | ||||||||||||
Port Diameter(mm2) | 4 | 16 | 20 | 25 | 35 | 40 | 50 | ||||||
CV Valve | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||||||
Port size | G3/8 | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | G2 | ||||||
Fluid Viscocity | Under 20 CS | ||||||||||||
Working Pressure | Water/Oil: 0~0.5MPa Air: 0~0.7MPa | ||||||||||||
Proof Pressure | 1.0MPa | ||||||||||||
Temperature | -5~85℃ | ||||||||||||
Working Voltage Range | ±10% | ||||||||||||
Material Body | Brass | ||||||||||||
Material Seal | NBR | ||||||||||||
Coil Power | 20VA | ||||||||||||

Model | Port Size | A | B | C |
2WF200-20 | G3/4 | 113 | 55.5 | 113 |
