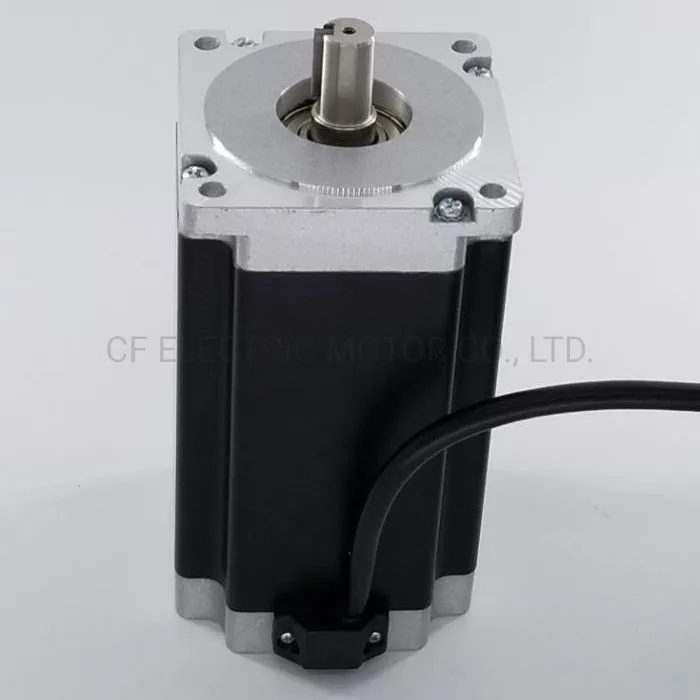

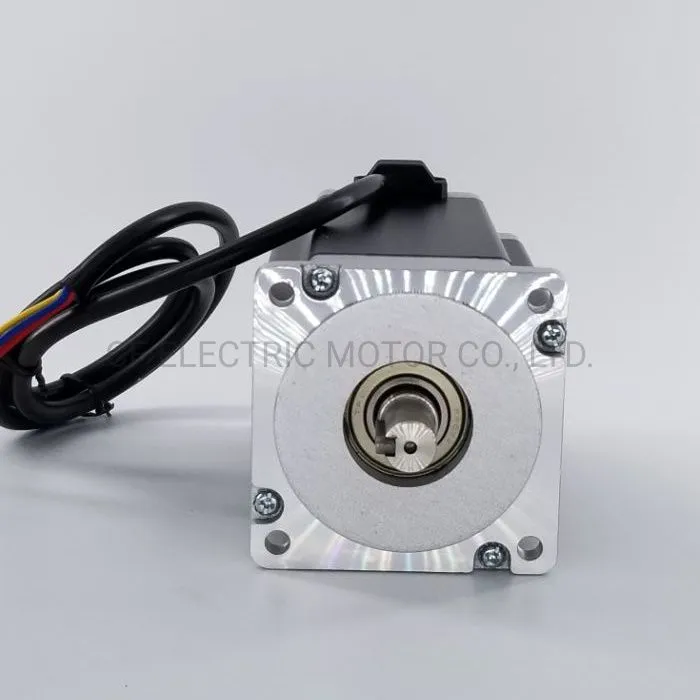

Help Center2 Phase 86mm Length 65mm NEMA 34 Step/Stepper/Stepping Motor
Related Products
-
1.2degree 86mm NEMA34 80mm Length Closed Loop Step/Stepping/Stepper Driver and MotorUS$ 1 - 147.65MOQ: 1 Piece -
2 Phase NEMA 34 Easy Servo Motor / 86mm Series Closed Loop Stepper Motor and Driver Kit for CNC MachineUS$ 1 - 93.02MOQ: 1 Piece
-
2 Phase Hybrid Step-Servo Motor 86CF118-1000 and Easy Servo Driver CF2068eeUS$ 1 - 215.91MOQ: 1 Piece
-
5 Phase NEMA52 130mm NEMA42 110mm Series Hybrid Step/Stepper/Stepping MotorUS$ 1 - 349.24MOQ: 1 Piece
-
3 Phase 110mm NEMA 42 Series Length 130mm Step/Stepping/Stepper MotorUS$ 1 - 93.91MOQ: 1 Piece
HYBRID STEPPING MOTOR 34HS SERIES
General Specifications:
Step Angle -----------------------------------------------------------------------------------------------------------------------------------------------1.8° (full step)
Step Angle Accuracy ---------------------------------------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy ---------------------------------------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy ---------------------------------------------------------------------------------------------------------------------------------------------±20%
Temperature Rise -----------------------------------------------------------------------------------------------------80ºC Max(rated current, 2 phases on)
Ambient Temperature Range ----------------------------------------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance ---------------------------------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength ---------------------------------------------------------------------------------------------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ------------------------------------------------------------------------------------------------------------------------------------------------- B class
Silver Front Endbell Black Front Endbell Silver Front Endbell
Electrical Specifications:
*Shown in the table is the representative product. It can be customized according to the requirements of users.
