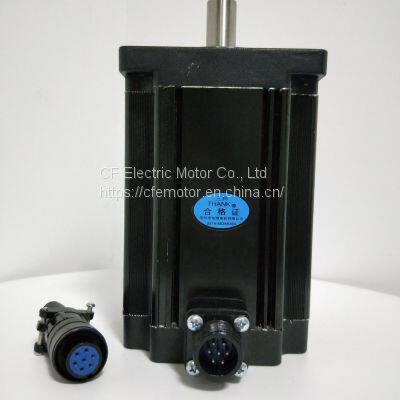

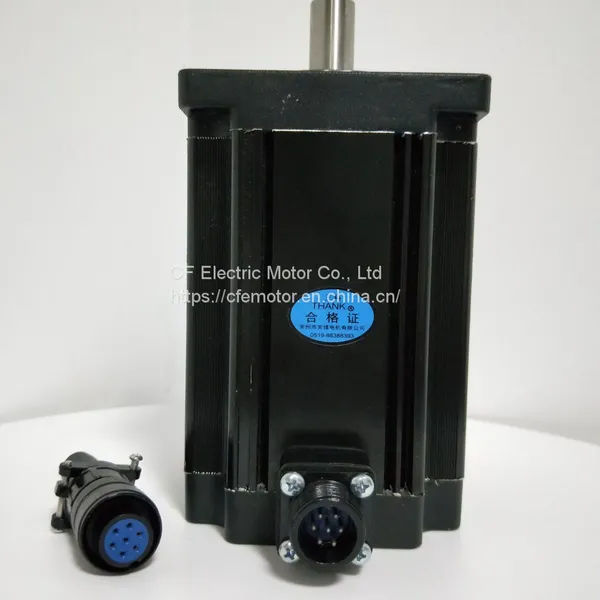

3 Phase NEMA42 16n. M Step/Stepping/Stepper Motor and Driver CF31022mh Unit
US$ 1 - 156.4
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
THANK, CHANGFENG, CF
Place of Origin:
China
Model Number:
42HT21248/F110BYG350C
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT, CHANGZHOU PORT
Delivery Detail:
3 days
Related Products
-
3 Phase NEMA42 110mm Size Easy Servo/Open Loop Kit Step/Steping/Stepper Motor and DriverUS$ 1 - 165.20MOQ: 1 Piece -
Customized NEMA23 NEMA34 Lead Screw Step/Stepping/Stepper MotorUS$ 1 - 80MOQ: 5 Pieces
-
NEMA23 57mm 2 Phase 23HS 23hm 45mm Hybrid Step/Stepping/Stepper Motor With CF2045m Stepper DriverUS$ 1 - 44.3MOQ: 5 Pieces
-
3 Phase 86mm Size Series Length 70 NEMA 34 Stepper Motor/ Stepper Motor DriverUS$ 1 - 102.5MOQ: 1 Piece
-
3 Phase 86mm Size Series 34ht8040/86sth3p80-4003 Length 80mm NEMA 34 Stepper MotorUS$ 1 - 26.8MOQ: 1 Piece
Brand Name
THANK, CHANGFENG, CF
Place of Origin
China
Model Number
42HT21248/F110BYG350C
Type
Variable Reluctance
Phase
3
Certification
CE, ISO, ROHS
Current / Phase
5.2A
Holding Torque
26N.m
Step Angle(degrees)
1.2°(full step）

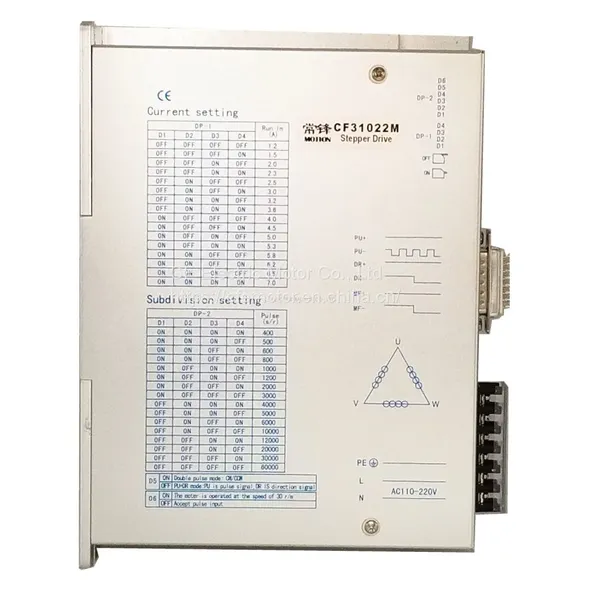

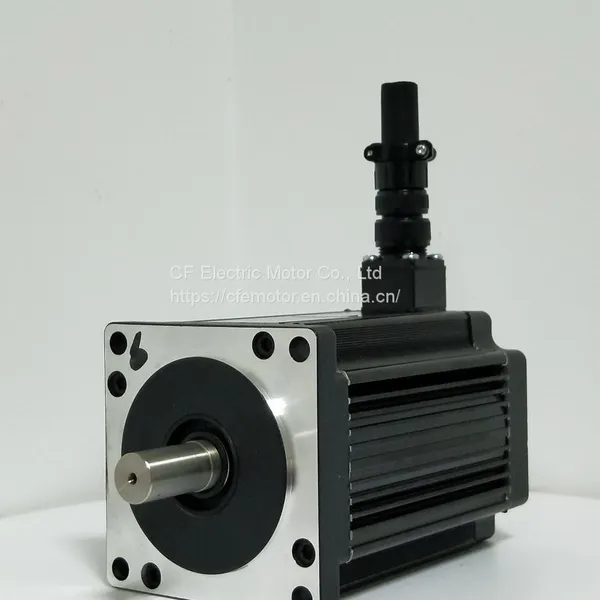

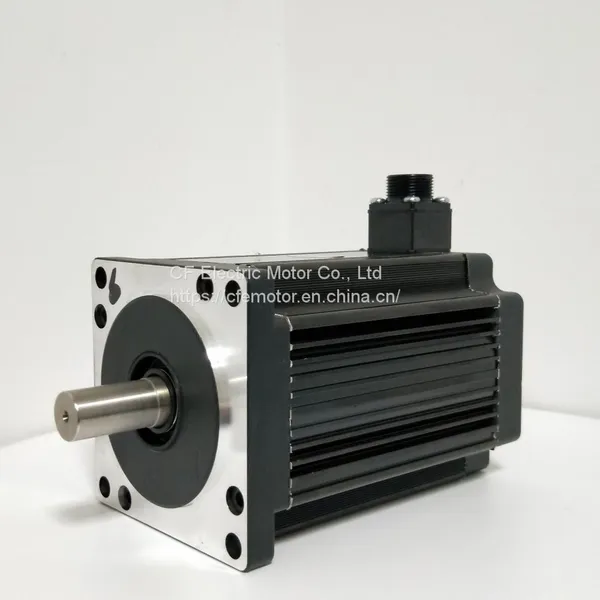

Nema42 Hybrid Step/Stepping/ Stepper motor and Stepper driver
General Specifications:
Step Angle------------------------------------------------------------------------------------------------------------- 1.2°(full step)
Step Angle Accuracy-----------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy-----------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy-----------------------------------------------------------------------------------------------------------±20%
Temperature Rise-------------------------------------------------------------------90ºC Max(rated current, 2 phases on)
Ambient Temperature Range------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance------------------------------------------------------------------------------------ 100MΩ Min. 500VDC
Dielectric Strength------------------------------------------------------------------------------- 750VAC 50Hz 1mA 1 Minute
Insulation Class----------------------------------------------------------------------------------------------------- F Class(155ºC)

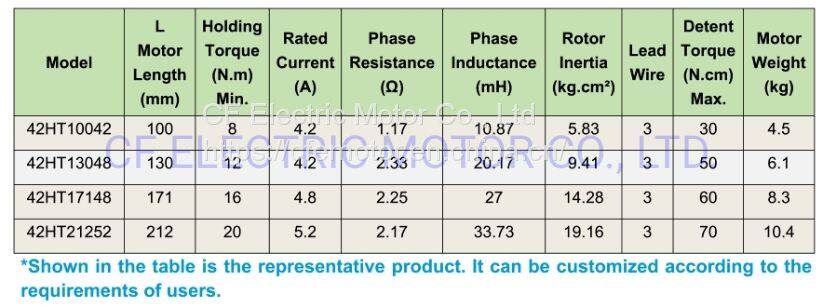

Electrical Specifications:
