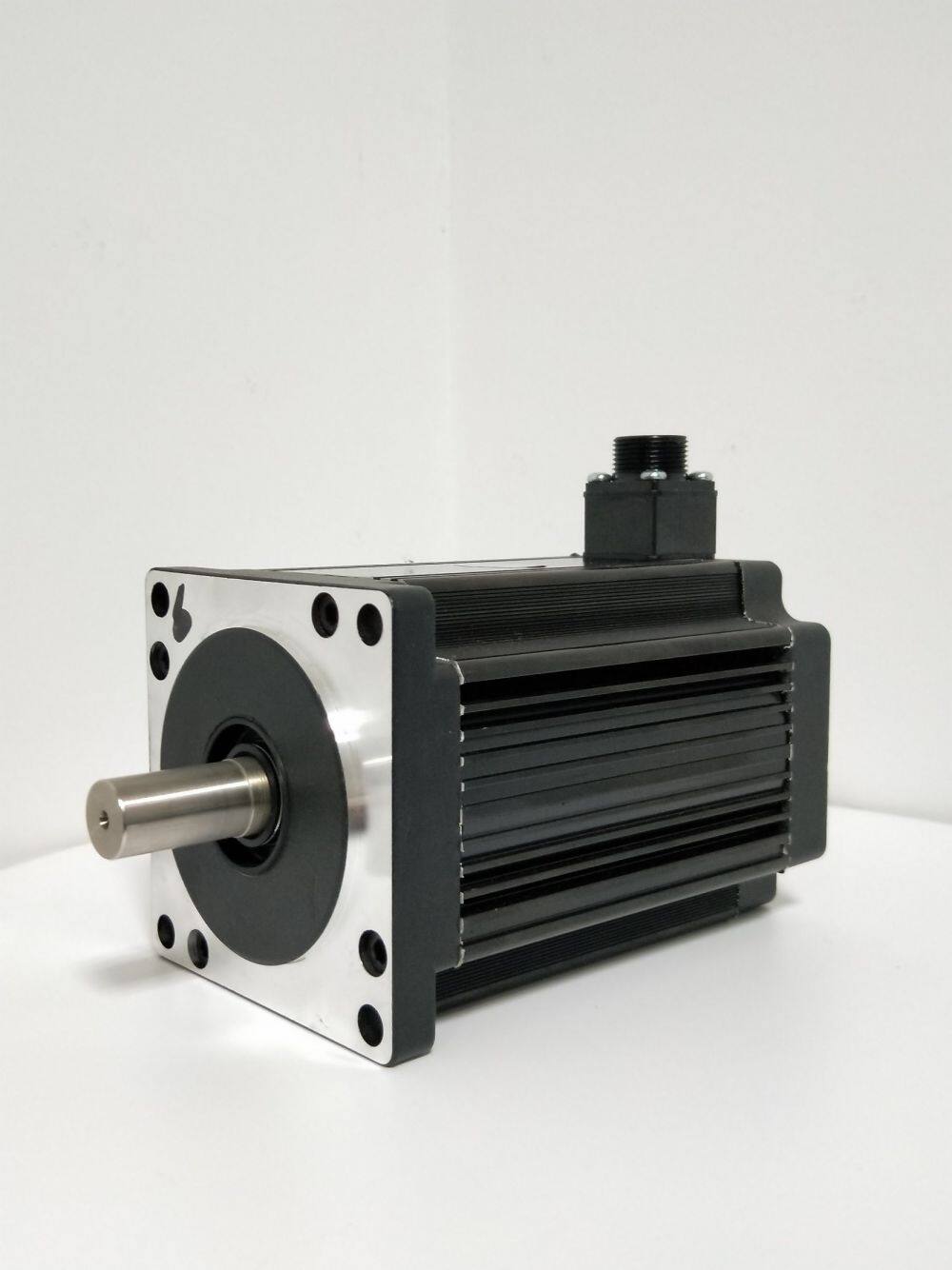

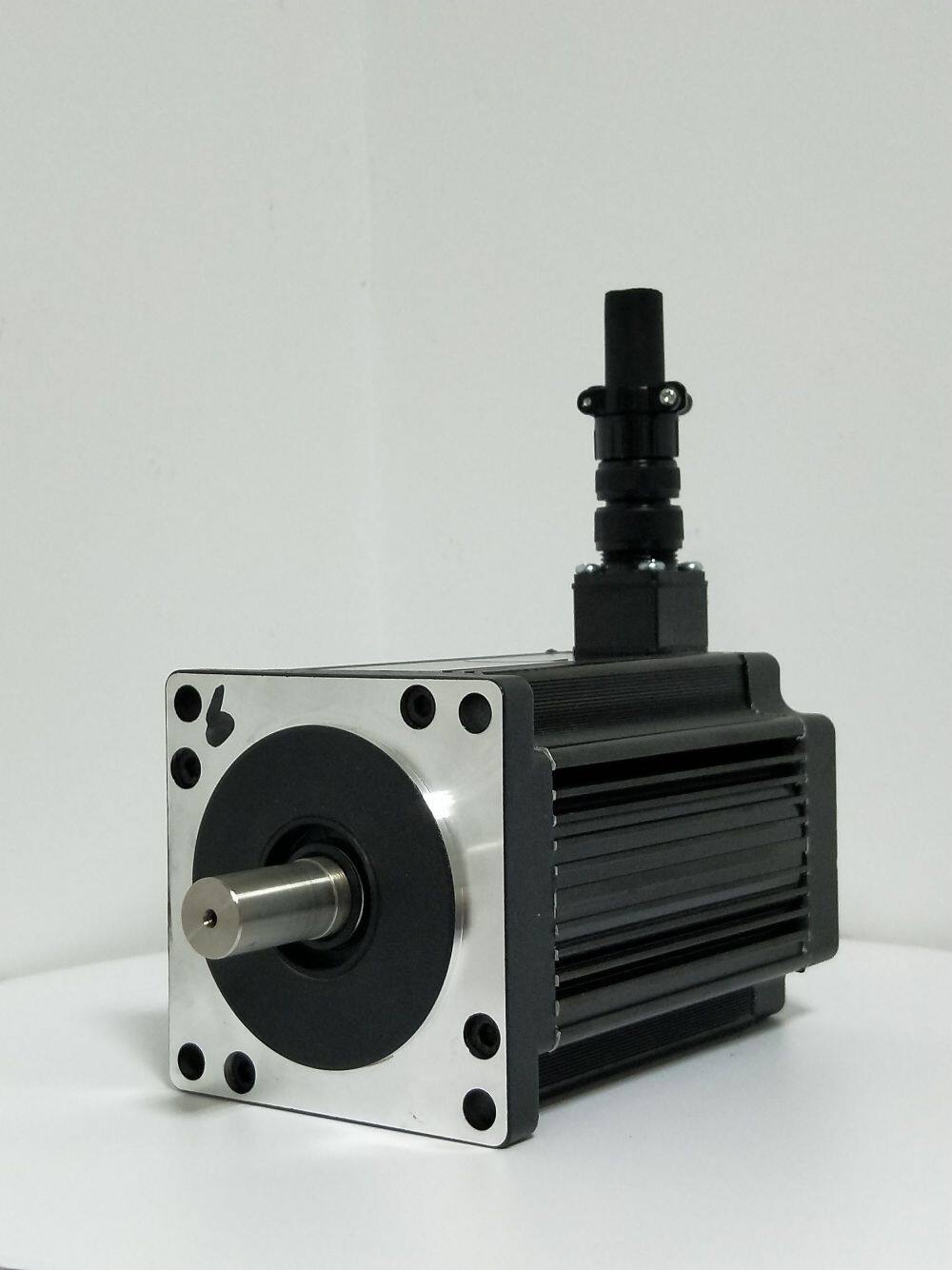

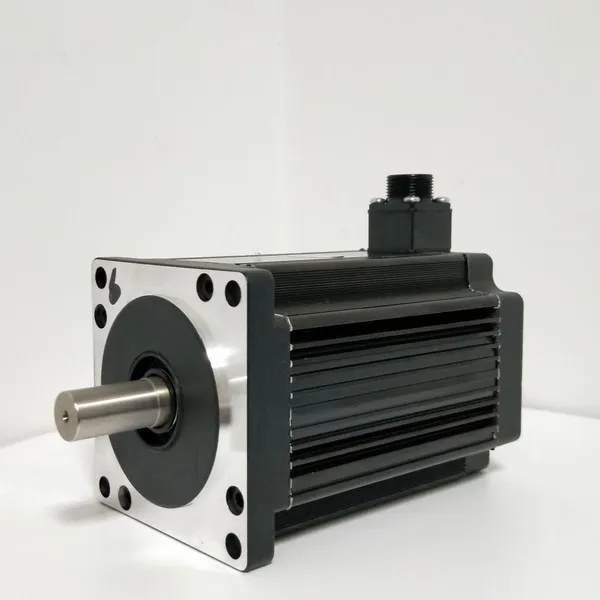

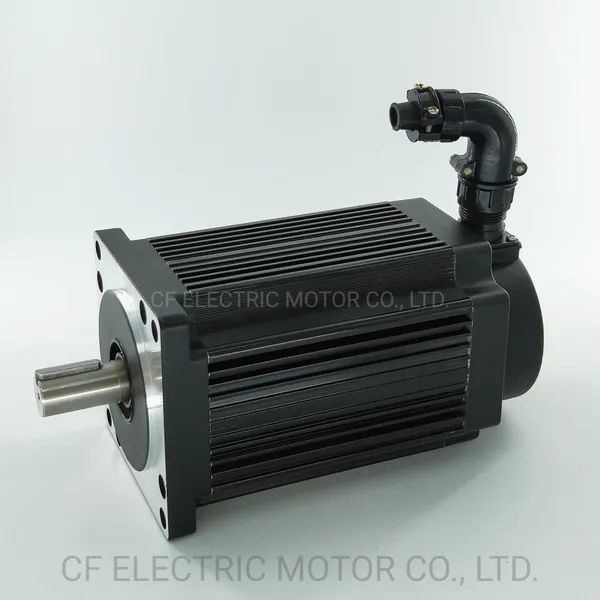

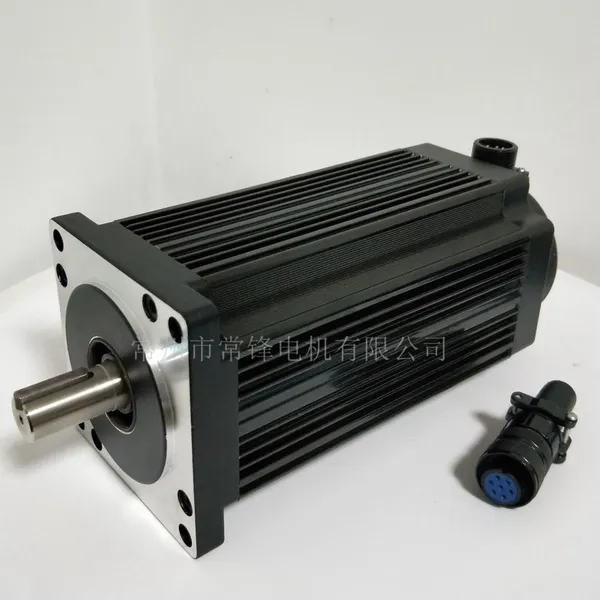

Help Center3 Phase 110mm NEMA 42 Series Length 130mm Step/Stepping/Stepper Motor
Related Products
-
NEMA 34 3 Phase 70mm Length 86sth3p70-4003 Hybrid Stepping/ Step/ Stepper MotorUS$ 1 - 38.23MOQ: 1 Piece -
2 Phase 60-110 VAC Hbyrid Step/Stepping/Stepper Motor Driver for Driving NEMA34 Stepper MotorUS$ 1 - 41.67MOQ: 1 Piece
-
3 Phase 86mm Size Series Length 130mm NEMA 34 Stepper Motor/ Stepper Motor DriverUS$ 1 - 127.68MOQ: 1 Piece
-
3 Phase 86mm Size Series Length 150mm NEMA 34 Stepper Motor/ Stepper Motor DriverUS$ 1 - 137.4MOQ: 1 Piece
-
110BC Series 0.75 Degree 0.6degree Three Phase VR Type Stepper MotorUS$ 10 - 120MOQ: 1 Piece
General Specifications:
Step Angle------------------------------------------------------------------------------------------------------------------------------- 1.2°(full step)
Step Angle Accuracy--------------------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy---------------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy-------------------------------------------------------------------------------------------------------------------±20%
Temperature Rise-------------------------------------------------------------------90ºC Max(rated current, 2 phases on)
Ambient Temperature Range-------------------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance-------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength-------------------------------------------------------------------------------------------------- 750VAC 50Hz 1mA 1 Minute
Insulation Class---------------------------------------------------------------------------------------------------------------- F Class(155ºC)

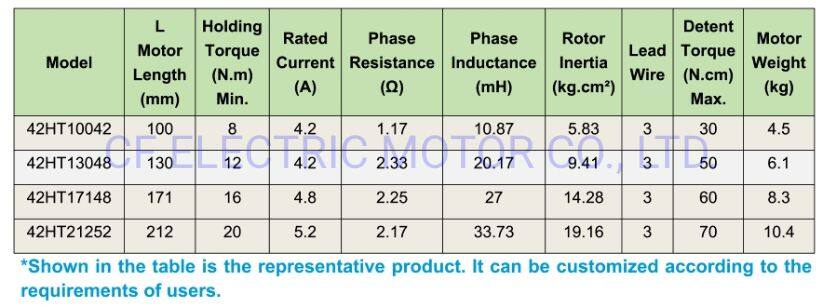

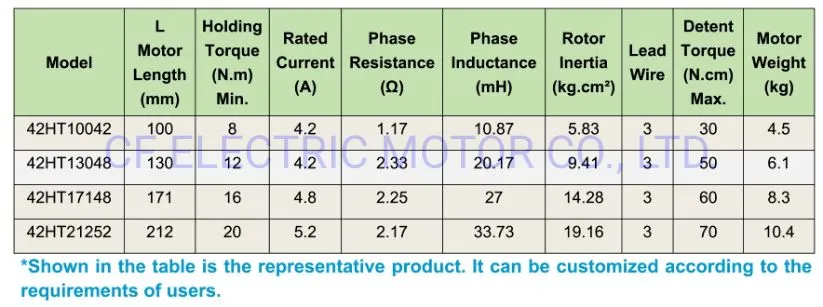

Electrical Specifications:
