Home > Electrical & Electronics > Electric Motor > Stepper Motor > 1.2degree 86mm NEMA34 80mm Length Closed Loop Step/Stepping/Stepper Driver and Motor

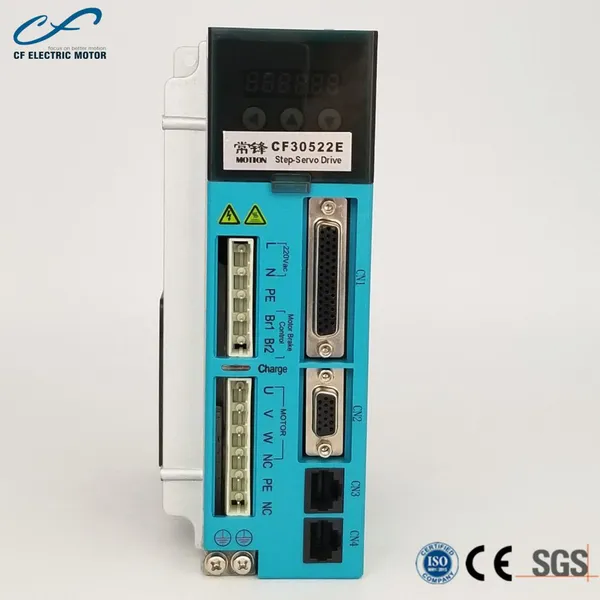

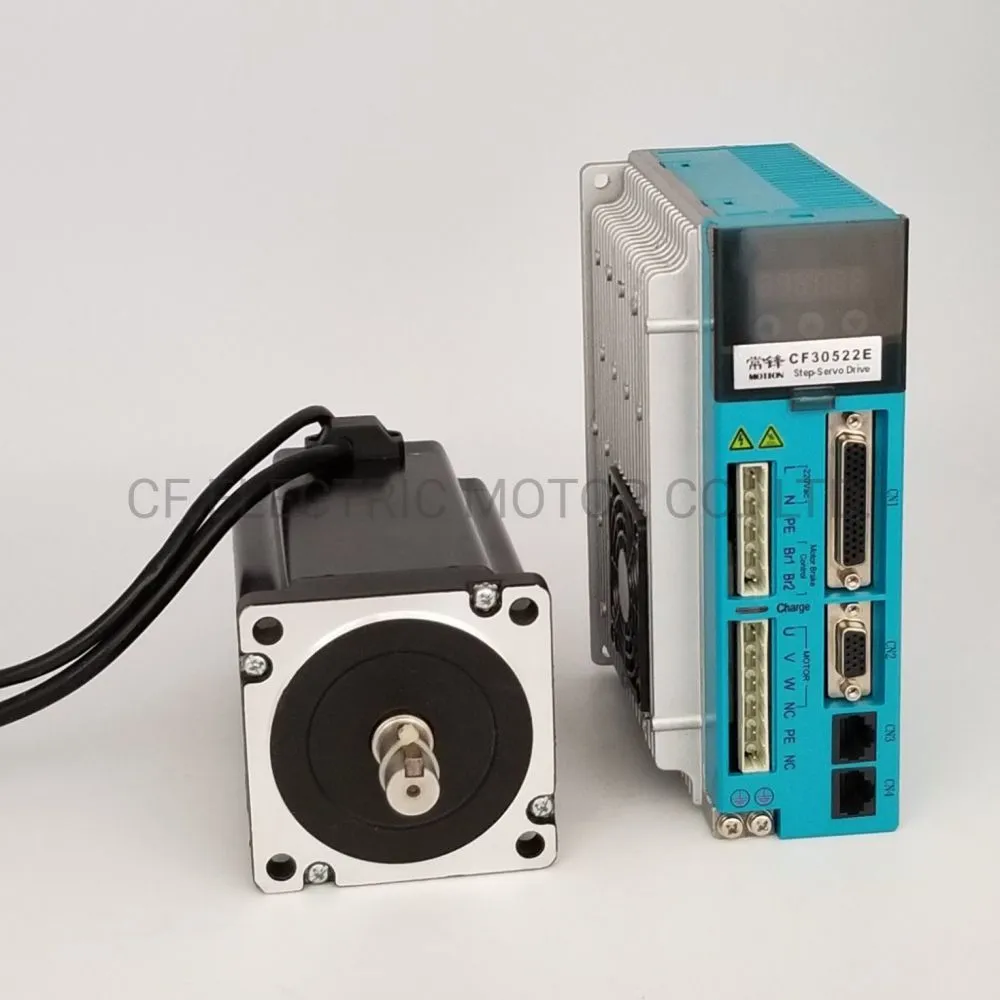

1.2degree 86mm NEMA34 80mm Length Closed Loop Step/Stepping/Stepper Driver and Motor
US$ 1 - 147.65
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
THANK, CHANGFENG, CF
Place of Origin:
China
Model Number:
86STH65-4004
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT, CHANGZHOU PORT
Delivery Detail:
3 days
Related Products
-
2 Phase NEMA 34 Easy Servo Motor / 86mm Series Closed Loop Stepper Motor and Driver Kit for CNC MachineUS$ 1 - 93.02MOQ: 1 Piece -
2 Phase Hybrid Step-Servo Motor 86CF118-1000 and Easy Servo Driver CF2068eeUS$ 1 - 215.91MOQ: 1 Piece
-
5 Phase NEMA52 130mm NEMA42 110mm Series Hybrid Step/Stepper/Stepping MotorUS$ 1 - 349.24MOQ: 1 Piece
-
3 Phase 110mm NEMA 42 Series Length 130mm Step/Stepping/Stepper MotorUS$ 1 - 93.91MOQ: 1 Piece
-
NEMA 34 3 Phase 70mm Length 86sth3p70-4003 Hybrid Stepping/ Step/ Stepper MotorUS$ 1 - 38.23MOQ: 1 Piece
Brand Name
THANK, CHANGFENG, CF
Place of Origin
China
Model Number
86STH65-4004
Type
Variable Reluctance
Phase
3
Certification
CE, ISO, ROHS
Current / Phase
4A
Holding Torque
9N.m
Step Angle(degrees)
1.2°(full step）
3Phase 86mm L=80mm Nema34 Closed Loop Stepper Motor Kit
Hybrid Step-Servo Motor 34CF3P Series High Torque Low Vibration Motor Driver and Digital Driver

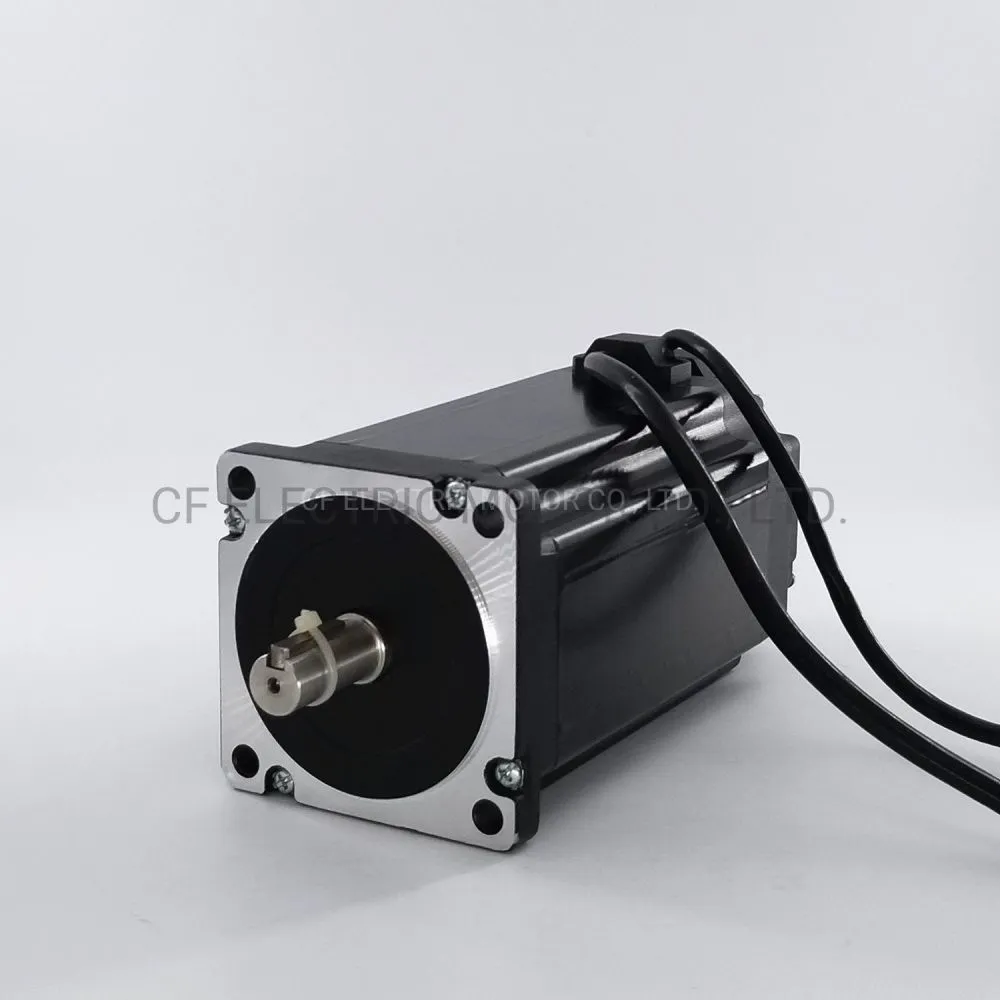

Motor Part

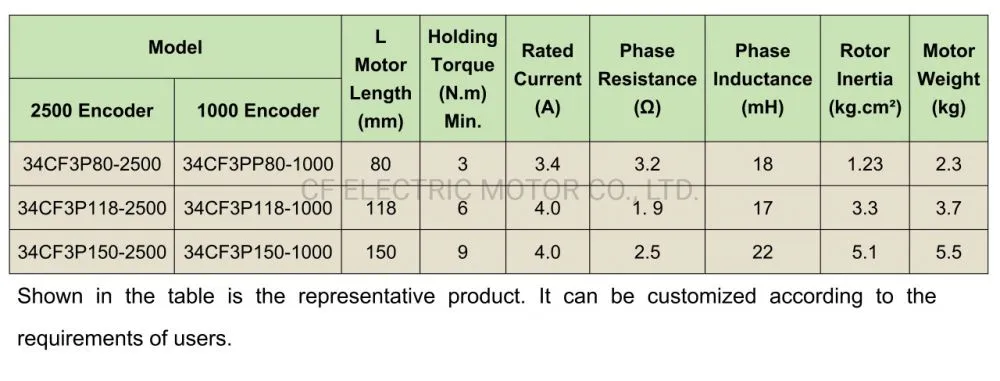

General Specification:

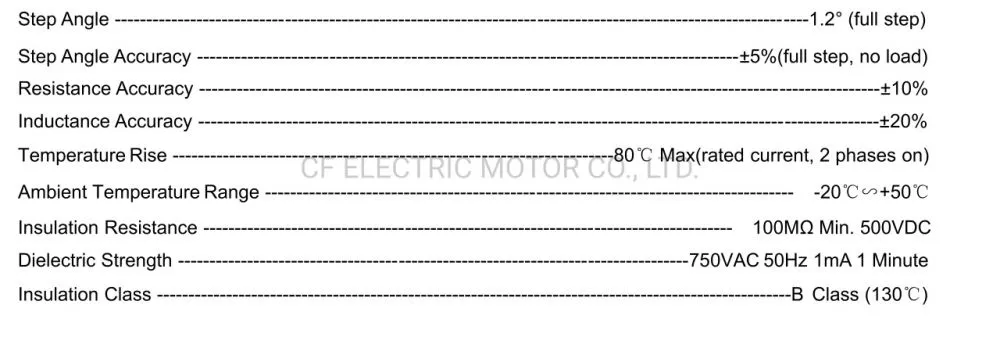

Electrical Specification:
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2003
Overseas Office
Yes
Factory Size
1,000-3,000 square meters
