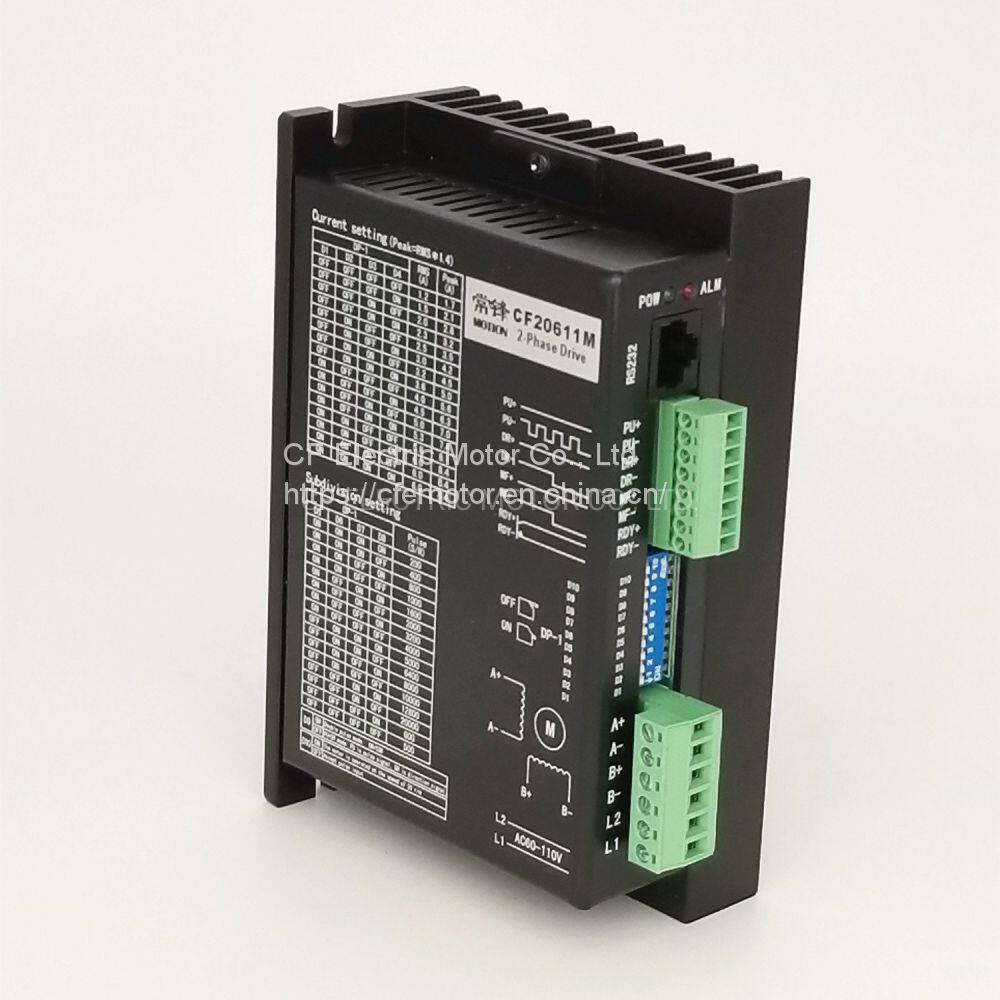

2-Phase Digital Stepping Motor Driver
CF20611M
Overview:
CF20611M is a 2-phase hybrid stepping motor driver based on DSP control. It is a new generation of digital stepping motor drive which combines advanced DSP control chip and 2-phase inverter drive module. The drive's voltage is between AC60-110V, adapter current is below 6.0A and 86-110MM diameter of all kinds of 2-phase hybrid stepping motors. It uses a similar servo control circuit, which can make the motor running smoothly, almost no vibration and noise. When the motor is at high speed, its torque is much higher than other hybrid stepping motors. Positioning accuracy is up to 20,000 steps / turn. The product is widely used in engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high resolution, large and medium-sized CNC equipment.
Key Features:
1.High performance and low price
2.Equipped with 16 scales constant torque moment subdivision, the maximum resolution is 20,000 steps / turn
3.The maximum response frequency is up to 200KPPS
4.When a stepping pulse stops more than 1.5S, the coil current will be automatically reduced to half of the set current

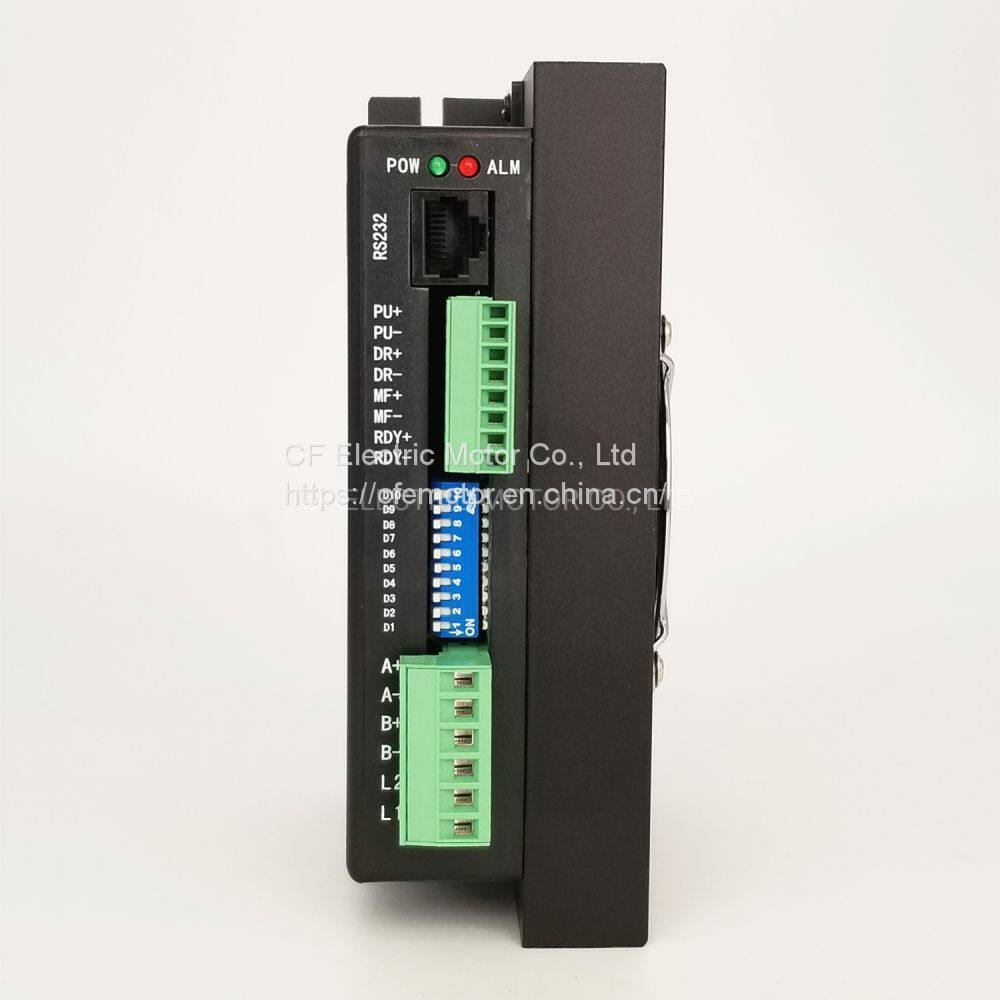

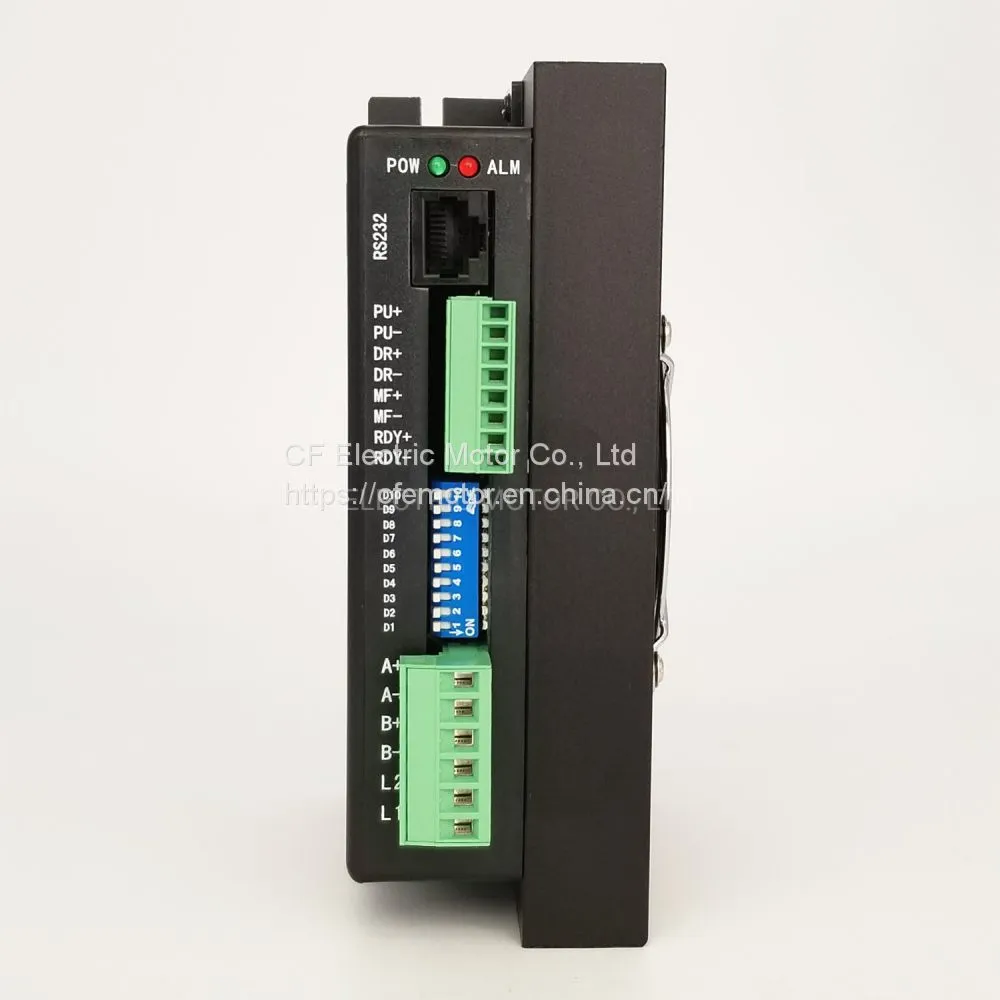

5.Optical isolation signal input / output
6.Drive current 1.2A / phase to 6.0A / phase 16 scales adjustable
7.Single power input, voltage range: AC60-110V
8.The phase memory function (Note: When the drive stops for more than 3 seconds, it will automatically memorize the motor phase then re-energizes. When the WF signal goes from low to high, the drive will automatically recover the motor phase.)

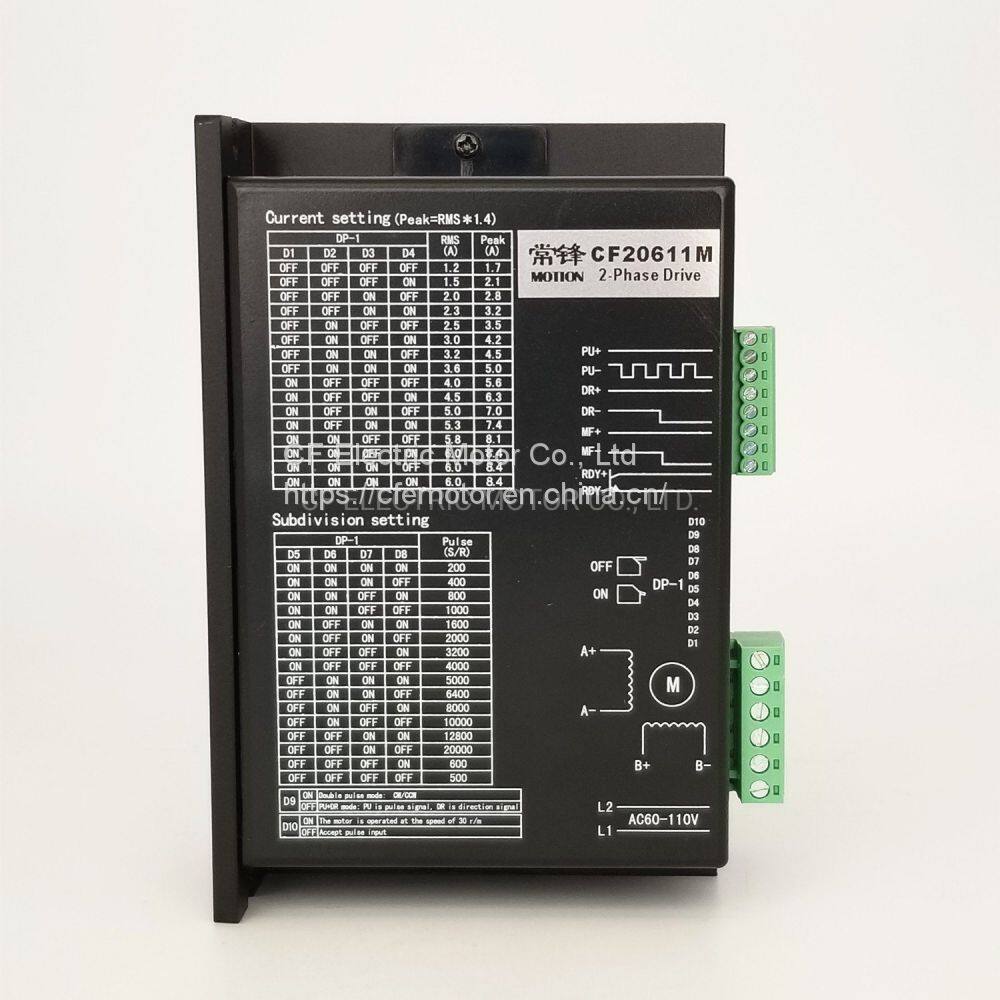

Subdivision Settings:
The drive's subdivision is set by DP2-D1-D4 terminals. It has 16 scales. D5,6 is function set. Subdivision reference table(pulse / revolution):
