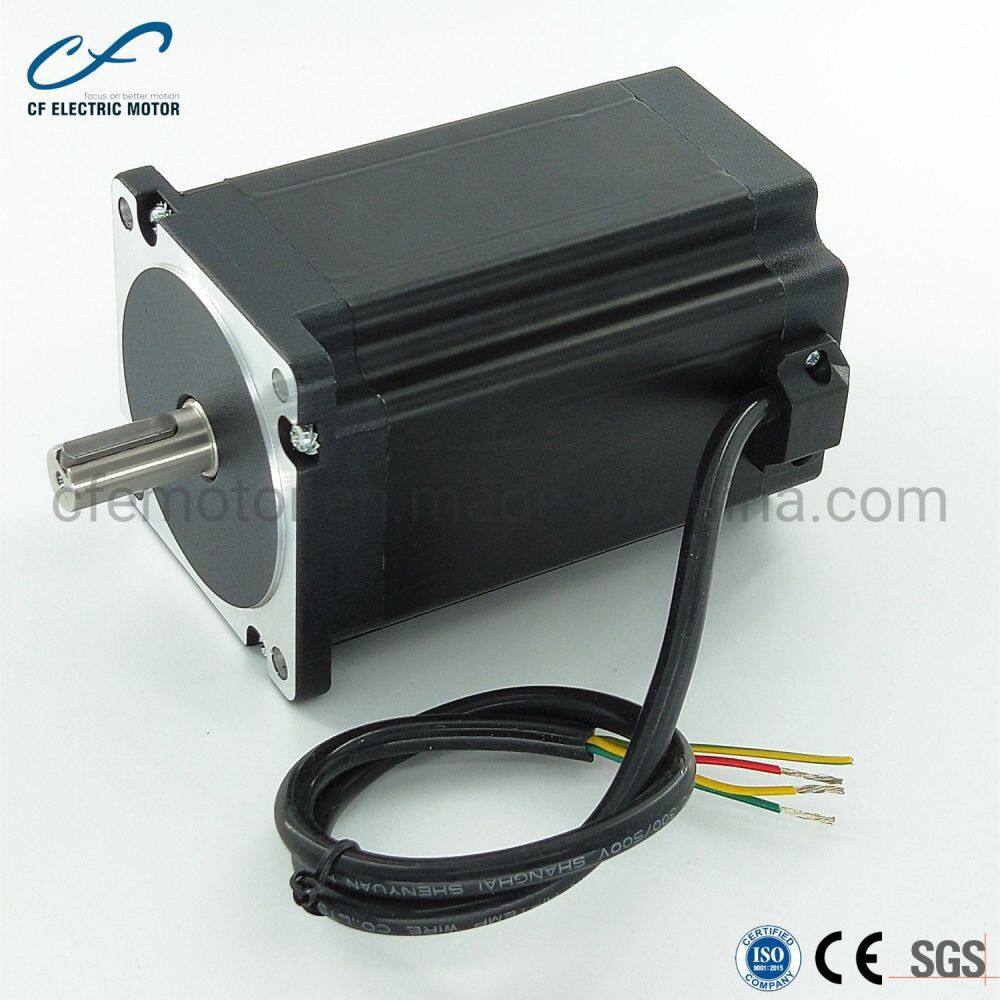

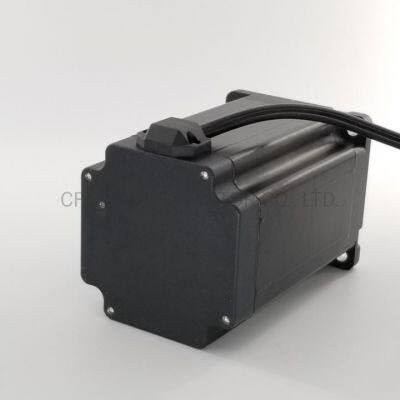

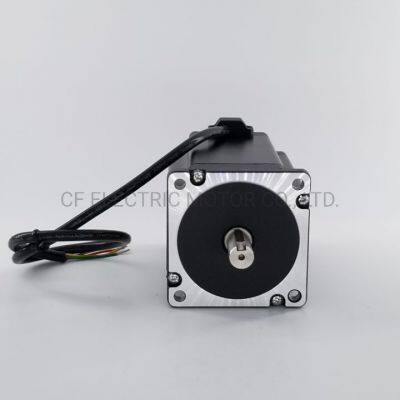

NEMA 34 3 Phase 70mm Length 86sth3p70-4003 Hybrid Stepping/ Step/ Stepper Motor

FOB Price

USD $1 - $38.23 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port SHANGHAI PORT, CHANGZHOU PORT
Payment Terms:T/T L/C PayPal
Delivery Detail:3 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	THANK, CHANGFENG, CF	Place of Origin:	China	Model Number:	86STH3P70-4003
Type:	Variable Reluctance	Phase:	3	Certification:	CE, ISO, ROHS
Current / Phase:	4A	Holding Torque:	20N.m	Step Angle(degrees):	1.2(full step）

Product Description

HYBRID STEPPING MOTOR 34HT SERIES

General Specifications:

Step Angle ----------------------------------------------------------------------------------------------------------------1.2° (full step)
Step Angle Accuracy --------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy --------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy --------------------------------------------------------------------------------------------------------------±20%
Temperature Rise ----------------------------------------------------------------------80ºC Max(rated current, 2 phases on)
Ambient Temperature Range ---------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance --------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength --------------------------------------------------------------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ------------------------------------------------------------------------------------------------------------------ B class

Electrical Specifications:

Model	L Motor Length (mm)	Holding Torque (N.cm) Min.	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Rotor Inertia (kg.cm²)	Lead Wire	Detent Torque (N.cm) Max.	Motor Weight (kg)
34HT7040	70	250	4.0	0.7	9.3	1.1	3	12	2.1
34HT8040	80	300	4.0	0.9	12	1.23	3	15	2.3
34HT10040	100	500	4.0	1.3	16.2	2.7	3	20	3.3
34HT11840	118	600	4.0	1.60	16.5	3.3	3	30	3.7
34HT13040	130	750	4.0	1.95	17	4.0	3	35	4.0
34HT15040	150	900	4.0	2.35	19	5.0	3	45	5.5

*Shown in the table is the representative product. It can be customized according to the requirements of users
