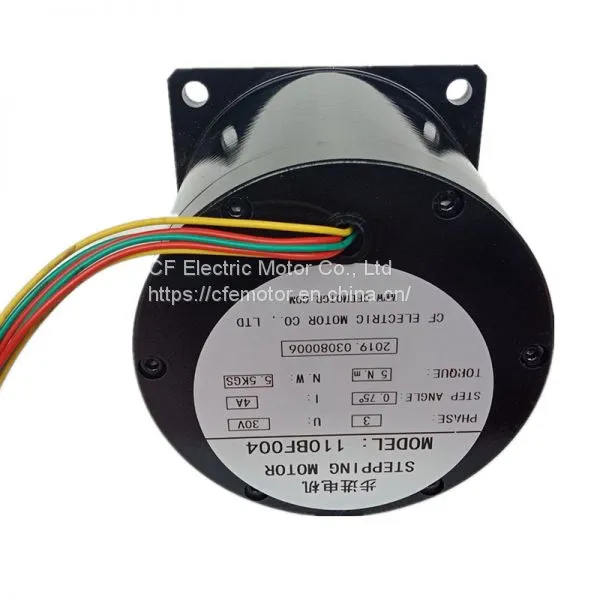

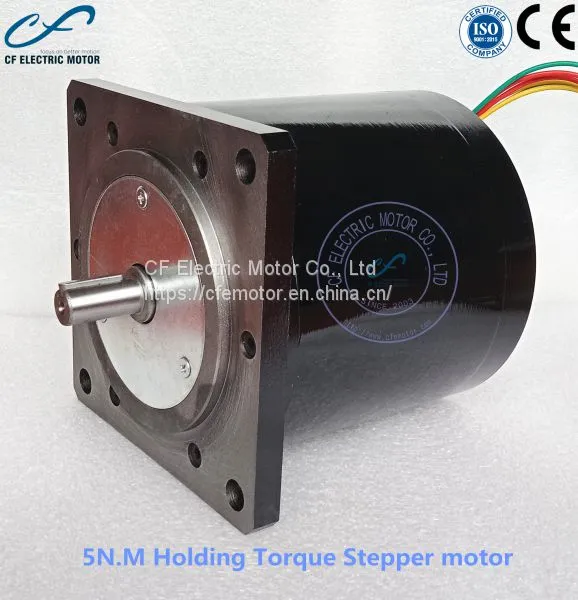

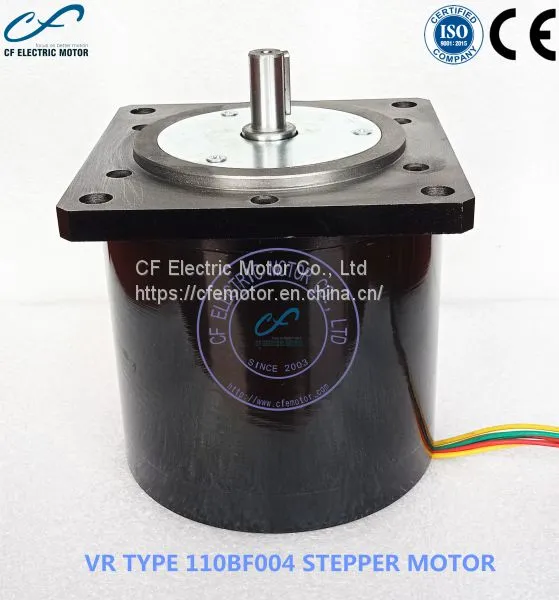

VR Type Stepper Motor 110BF004
Application:
Widely used CNC machine tools, Package machinery, Textile machinery, Engraving machine, Wire-stripping machine, Marking machine, Cutting machine, Laser photocomposing machine, Plotting instrument, Medical equipment, Printer, Embroidery machine, Stage lighting, and other industries automatic assembly equipment.
General Specification:
Step Angle |
1.5°/ 0.75° (full Step、half step) |
Step Angle Accuracy |
+/-5% (full step, no-load) |
Temperature Rise |
80℃( rated current 2 phases on) |
Ambient Temperature Range |
-20℃~ +50℃ |
Insulation Resistance |
100MΩ Min. 500VDC |
Dielectric Strength |
950VAC 50Hz 1mA 1Min. |
Radial Play |
0.02mmMax. (300N) |
End Play |
0.08mmMax. (60N) |
Max. radial force |
300N (20mm from the flange) |
Max. axial force |
60N |
Rotation |
CW(See from Front Flange) |
Insulation Grade |
F grade |
Electrical Specifications:
Model |
110BF004 |
Rated Voltage |
30V |
Rated Current |
4A |
Phase Resistance |
3.5Ω |
Phase Inductance |
30mH |
Holding Torque |
5N.m |
No Load Run Frequency |
≥12 kHz |
Rotor Inertia |
3.75kg.cm2
|
Motor Weight |
5.5kgs |
*Shown in the table is the representative product. It can be customized according to the requirements of users.

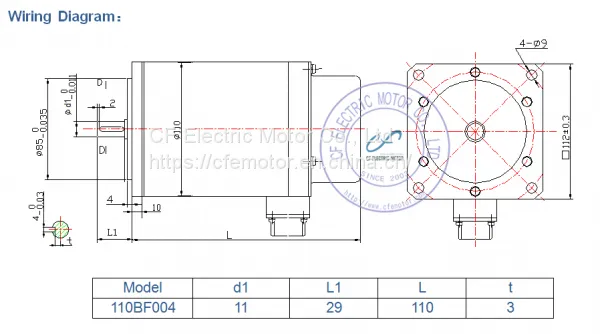

Wiring method：
Air connection plug-in for the motor, the connection method is as following.
1,2—A,A′ 3,4—B,B′ 5,6—C,C′ 7—Grounding（frame）
Pls. pay attention to:
1. The motor keeps 1 year warranty since the delivery date.
2. The motor should be kept in warehouse which is -20℃ to +40℃, and the relative humidity is not large than 90%. Also, there is no corrosive gas in the air.
