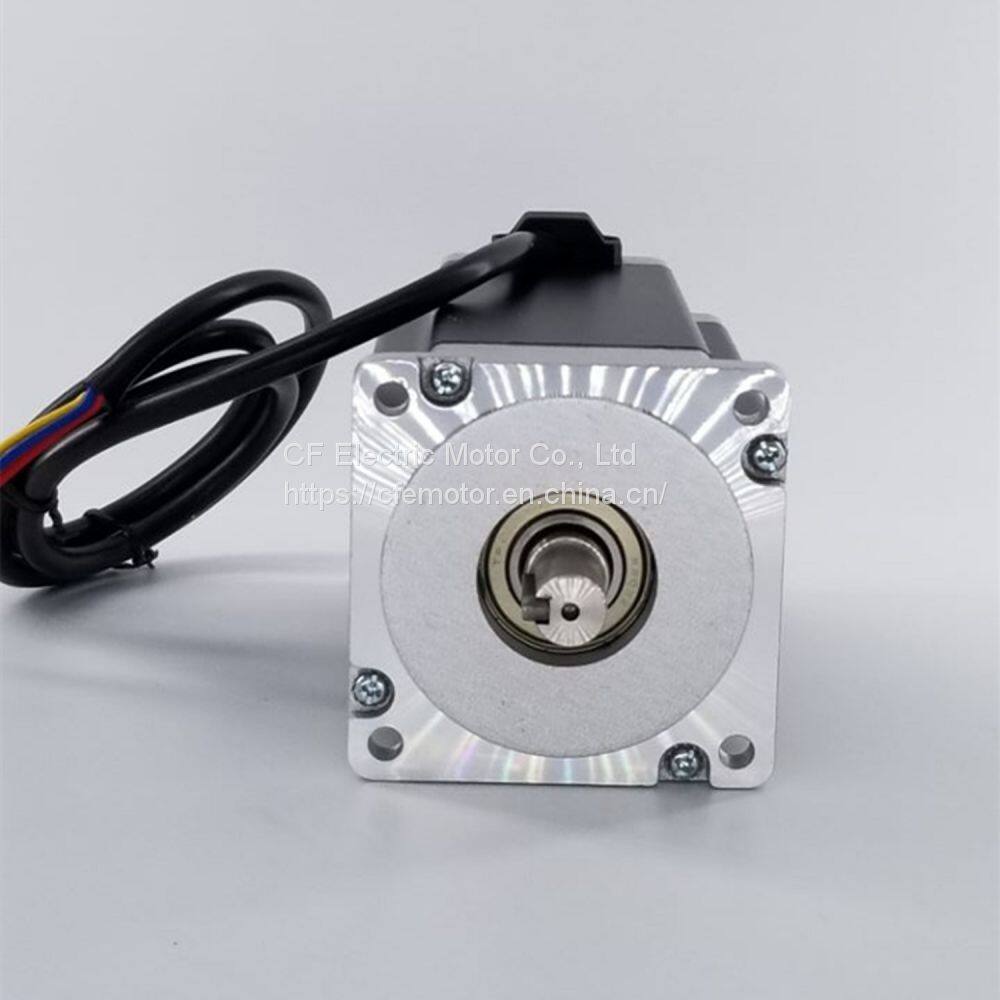

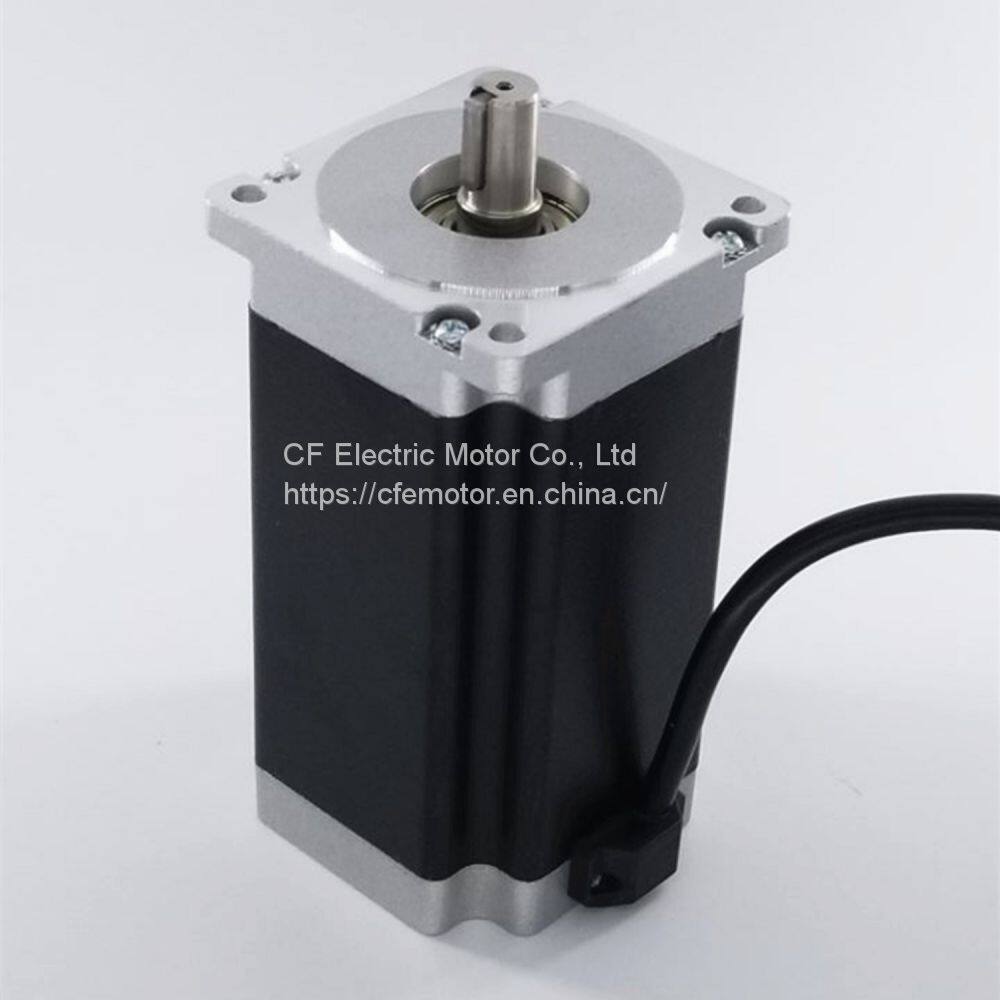

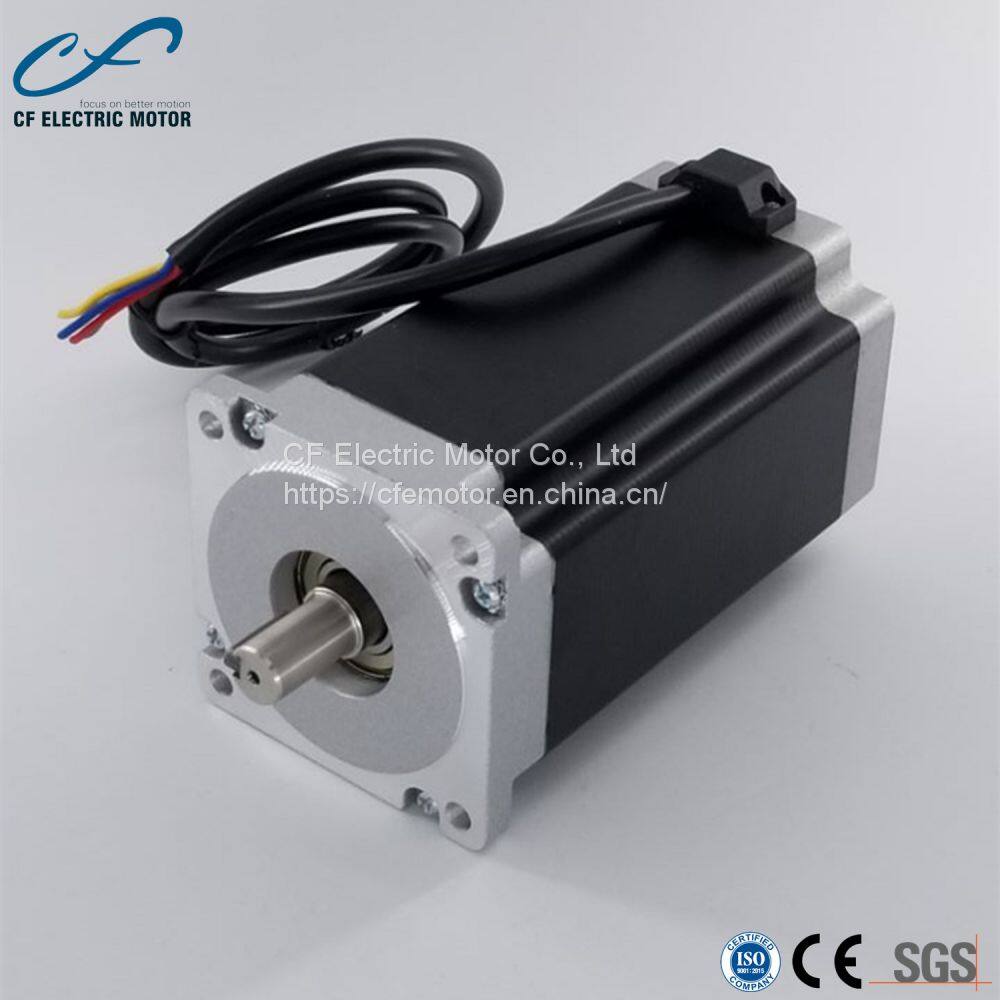

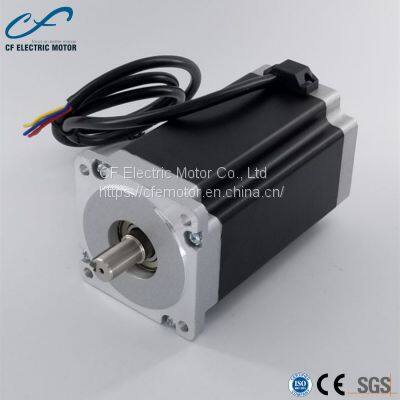

Help Center2 Phase 86mm 4.5n. M 34HS8040/86sth80-6004/86byg250b Length 80mm NEMA 34 Stepper Motor
Related Products
-
2 Phase 86mm Length 65mm NEMA 34 Step/Stepper/Stepping MotorUS$ 1 - 36.51MOQ: 1 Piece -
1.2degree 86mm NEMA34 80mm Length Closed Loop Step/Stepping/Stepper Driver and MotorUS$ 1 - 147.65MOQ: 1 Piece
-
2 Phase NEMA 34 Easy Servo Motor / 86mm Series Closed Loop Stepper Motor and Driver Kit for CNC MachineUS$ 1 - 93.02MOQ: 1 Piece
-
2 Phase Hybrid Step-Servo Motor 86CF118-1000 and Easy Servo Driver CF2068eeUS$ 1 - 215.91MOQ: 1 Piece
-
5 Phase NEMA52 130mm NEMA42 110mm Series Hybrid Step/Stepper/Stepping MotorUS$ 1 - 349.24MOQ: 1 Piece
HYBRID STEPPING MOTOR 34HS SERIES
General Specifications:
Step Angle --------------------------------------------------------------------------------------------------------------------------------------------------1.8° (full step)
Step Angle Accuracy ------------------------------------------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy ------------------------------------------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy ------------------------------------------------------------------------------------------------------------------------------------------------±20%
Temperature Rise --------------------------------------------------------------------------------------------------------80ºC Max(rated current, 2 phases on)
Ambient Temperature Range -------------------------------------------------------------------------------------------------------------------------- -20ºC∽+50ºC
Insulation Resistance ------------------------------------------------------------------------------------------------------------------------- 100MΩ Min. 500VDC
Dielectric Strength ------------------------------------------------------------------------------------------------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ---------------------------------------------------------------------------------------------------------------------------------------------------- B class
Electrical Specifications:
*Shown in the table is the representative product. It can be customized according to the requirements of users.
