Please contact with me before purchasing for the shipment and price.
If you want to make bulk purchase or be our agent, please contact with us.

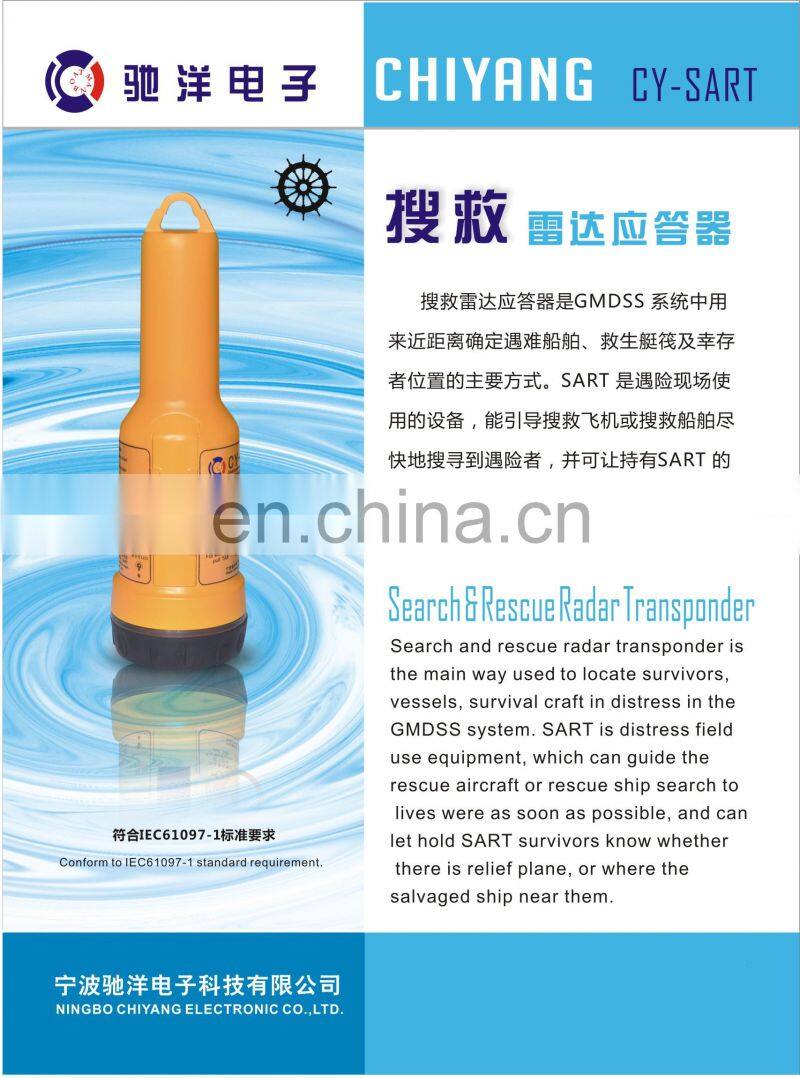

Description:
Search and rescue radar transponder (SART) is a global maritime distress and safety system (GMDSS),
can guide the rescue aircraft and rescue ship to find the target as soon as possible at close range,
and can let the SART holders know rescue plane or ship near them.
Technical Indicators
|
Working Frequency: |
9.2GHz~9.5GHz |
|
Polarization Mode: |
Horizontal polarization |
|
Frequency Sweep Rate: |
200 MHz / 5μs |
|
Pulse Duration: |
100μs |
|
Radiation Power: |
≥26dBm |
|
Response Delay: |
≤0.5us |
|
Effective Sensitivity: |
≤-50dBm |
|
Recovery Time: |
≤10us |
|
Temperature Range: |
Ambient: –20 °C to + 55 °C Stowage: –30 °C to + 65 °C |
|
Battery: |
7.2V 5000mAh (–40 °C to + 70 °C) |
