Home > Industrial Equipment & Components > Engine & Part > Engine Parts > Marine Electronics Maritime Navigation Communication ICOM MA-510TR Automatic Identification System Class B Ship AIS Transponder

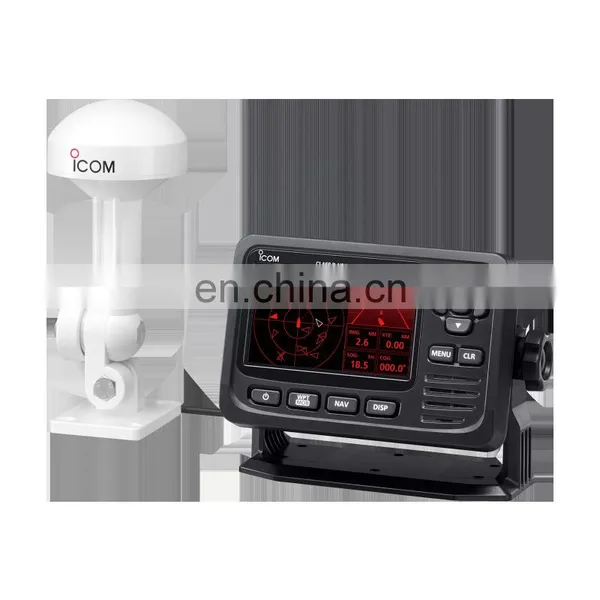

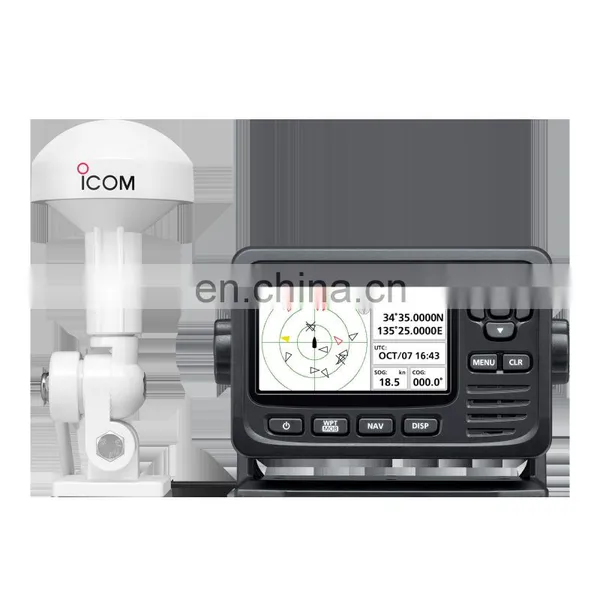

Marine Electronics Maritime Navigation Communication ICOM MA-510TR Automatic Identification System Class B Ship AIS Transponder
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Electronics Navigation Communication Collision Avoidance Furuno FA-170 AUTOMATIC IDENTIFICATION SYSTEM CLASS A AISNegotiableMOQ: 1 -
Marine Electronics Maritime Navigation Communication XINUO HM-5912N 12.1' Support C-Map Card GPS Chart Plotter AIS Class B COMBONegotiableMOQ: 1
-
Marine Electronics Navigation Communication Ship Collision Avoidance JRC JHS-183 AUTOMATIC IDENTIFICATION SYSTEM CLASS A AISNegotiableMOQ: 1
-
Marine Electronics Navigation Communication Collision Avoidance SAMYUNG SI-70A 7'' AUTOMATIC IDENTIFICATION SYSTEM CLASS A AISNegotiableMOQ: 1
-
Marine Electronics Navigation Communication SAMYUNG SI-50N 5.6'' AUTOMATIC IDENTIFICATION SYSTEM Combo CLASS B AIS ChartplotterNegotiableMOQ: 1
Please contact me before purchasing for the shipment and price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

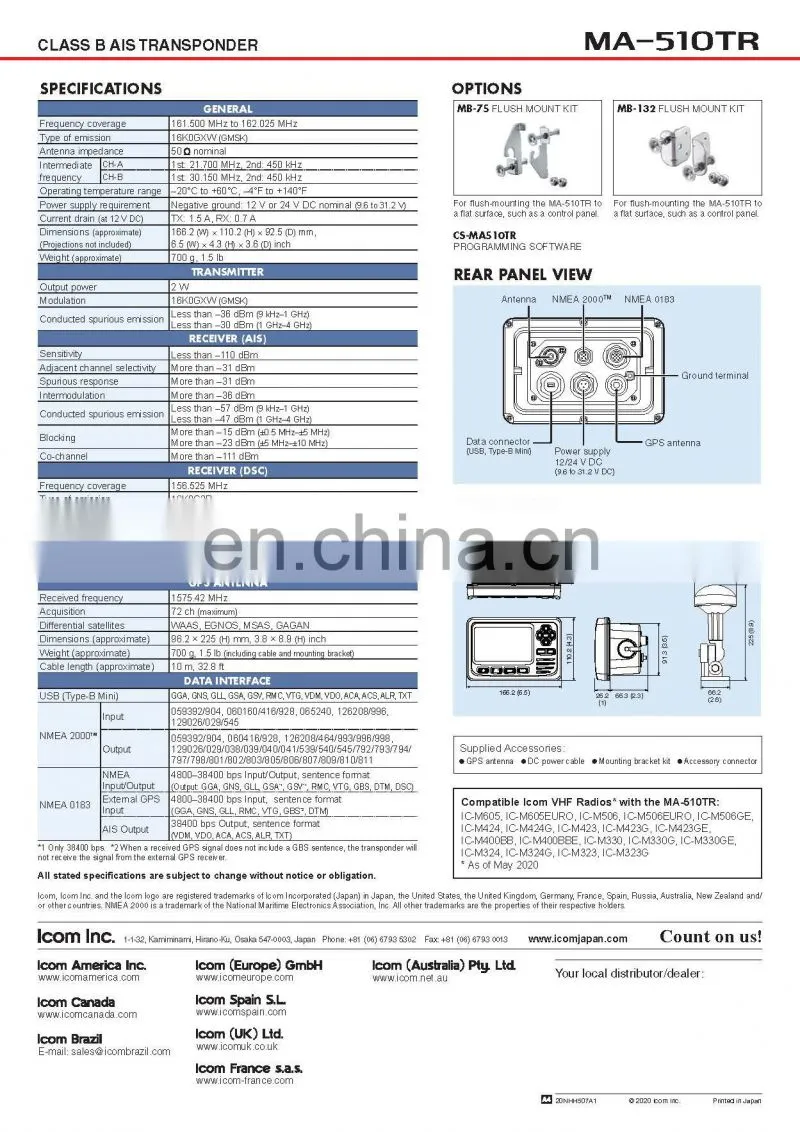

| Operating frequencies |
161.500 MHz to 162.025 MHz |
|
|---|---|---|
| Type of emission |
16K0GXW (GMSK) |
|
| Antenna impedance | 50 Ω nominal | |
| Intermediate frequency | CH-A | 1st: 21.700 MHz, 2nd: 450 kHz |
| CH-B | 1st: 30.150 MHz, 2nd: 450 kHz | |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F |
|
| Power supply requirement | Negative ground: 12 V or 24 V DC nominal (9.6 to 31.2 V) | |
| Current drain (at 12 V DC) | TX: 1.5 A, RX: 0.7 A | |
| Dimensions (approximate)) (Projections not included) |
166.2 (W) × 110.2 (H) × 92.5 (D) mm, 6.5 (W) × 4.3 (H) × 3.6 (D) inch |
|
| Weight (approximate)) | 700 g, 1.5 lb |
TRANSMITTER
| Output power | 2 W |
|---|---|
| Modulation | 16K0GXW (GMSK) |
| Conducted spurious emission | Less than –36 dBm (9 kHz–1 GHz) Less than –30 dBm (1 GHz–4 GHz) |
RECEIVER (AIS)
| Sensitivity | Less than –110 dBm |
|---|---|
| Adjacent channel selectivity | More than –31 dBm |
| Spurious response | More than –31 dBm |
| Intermodulation | More than –36 dBm |
| Conducted spurious emission | Less than –57 dBm (9 kHz–1 GHz) Less than –47 dBm (1 GHz–4 GHz) |
| Blocking | More than –15 dBm (±0.5 MHz–±5 MHz) More than –23 dBm (±5 MHz–±10 MHz) |
| Co-channel | More than –111 dBm |
RECEIVER (DSC)
| Frequency coverage | 156.525 MHz |
|---|---|
| Type of emission | 16K0G2B |
| Sensitivity | Less than –110 dBm |
| Adjacent channel selectivity | More than 70 dB |
| Spurious response | More than –34 dBm |
| Intermodulation | More than –39 dBm |
| Blocking | More than –20 dBm |
