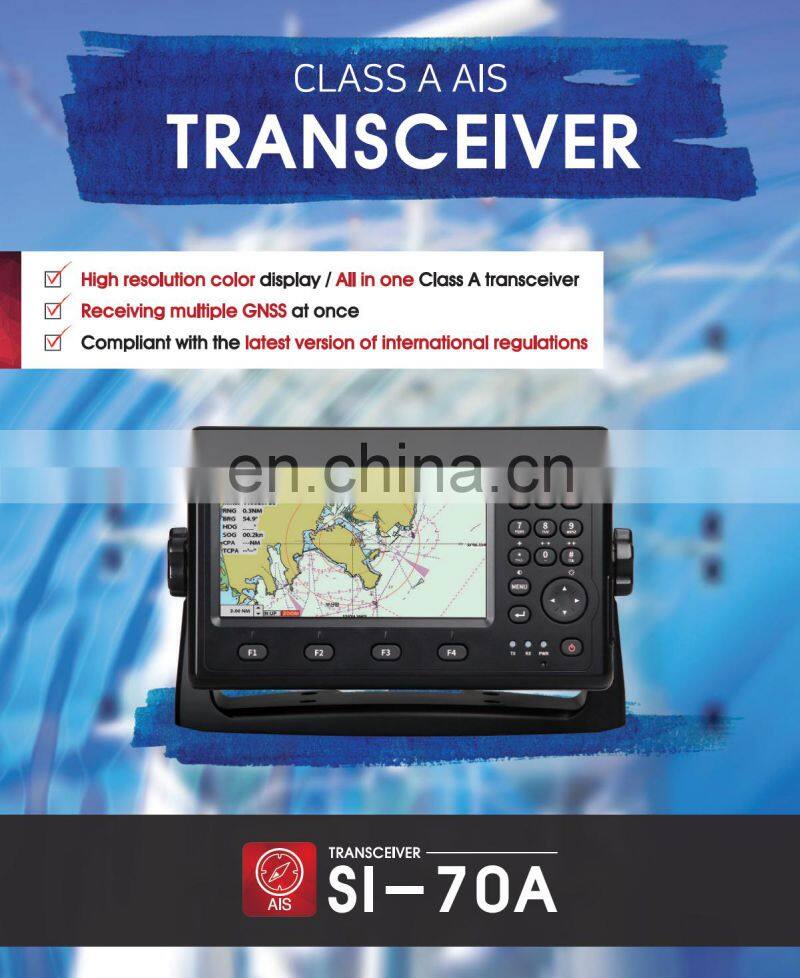

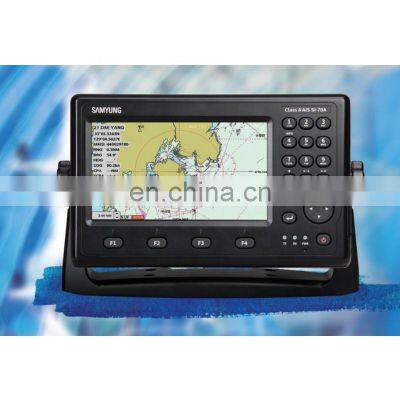

Marine electronics navigation communication collision avoidance SAMYUNG SI-70A 7'' AUTOMATIC IDENTIFICATION SYSTEM CLASS A AIS



Please contact me before purchasing for the shipment and product price and detailed configuraiton.

If you want to make bulk purchase or be our agent, please contact with us.



Specifications

 POWER

• AIS unit DC IN : 12V(RX:0.9A/TX:5.2A)/24V(RX:0.5A/TX:2.5A)

• AC/DC unit (SP-70AD) AC IN : 100~230VAC, 47~63 Hz DC OUT : DC24V / 6.3A



 TRANSCEIVER

• TX/RX Frequency range : 156.025 ~ 162.025 MHz

• Default Frequencies : AIS1 (CH 87B) = 161.975 MHz(F1D)

                          AIS2 (CH 88B) = 162.025 MHz(F1D)

                          DSC (CH70 fixed) = 156.52 M5Hz(G2B)

• Power output : 12.5W (41dBm±1.5dB / 8.91W~17.78W) or 1.0W (30dBm±1.5dB / 0.7W~1.41W)

• Antenna impedance : 50 ohms (SO-239)

• Sensitivity (AIS RX) : PER < 20% at -107 dBm

• Sensitivity (DSC RX) : BER <10-4 at -107 dBm



 DISPLAY

• LCD : 7 inch TFT color, 800 x 480



 INPUT / OUTPUT COMMUNICATION

• SENS1/2/3 : IEC61162-1/2 (input only)

• LONG/AUX/PILOT : IEC61162-1/2 (input & output)



 GNSS ANTENNA / RECEIVER SPECIFICATION

• Antenna : GNSS-70 (PATCH ANTENNA / TNC / RG-58U / Gain:17dB)

• Receiver : 72-channel u-blox engine / GPS / QZSS / GLONASS / BeiDou / Galileo / WAAS, EGNOS, MSAS



 VHF SPECIFICATION

• Model name : SAN-150 (2dBi)

• Connector type : Standard female UHF

• Frequency range : 156-162 MHz, VSWR < 1.5:1

• Impedance : 50 ohm

• Output range: 100W



 OPERATION ENVIRONMENT ENVIRONMENT

• Standards : IEC 60945 (EMC, Dry heat, humidity, low temperature, vibraotni , corrosion, compass safety distanc ee,tc.)

• Antenna operation : -30°C to +70°C

• Main body operation : -15°C to +55°C

• Storing Temperature : -25°C to +75°C



Marine electronics navigation communication collision avoidance SAMYUNG SI-70A 7'' AUTOMATIC IDENTIFICATION SYSTEM CLASS A AISMarine electronics navigation communication collision avoidance SAMYUNG SI-70A 7'' AUTOMATIC IDENTIFICATION SYSTEM CLASS A AIS
