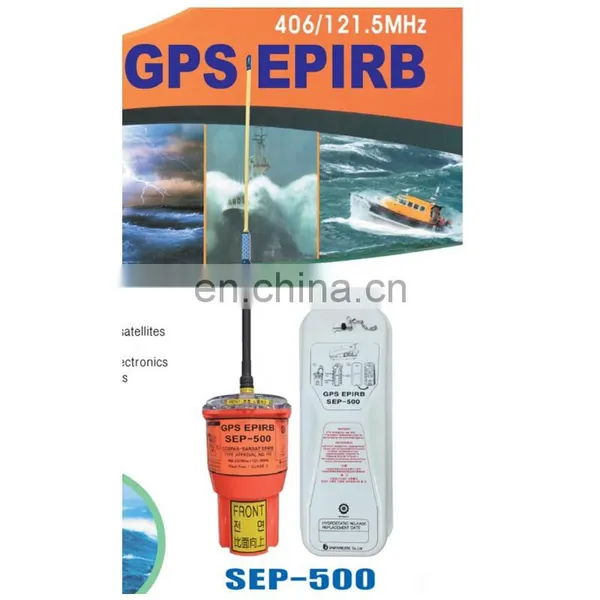

Marine electronics nautical navigation communication SAMYUNG SEP-500 GMDSS emergency position indication radio beacon GPS EPIRB

Please contact with me before purchasing for the shipment, product price and configuration.

If you want to make bulk purchase or be our agent, please contact with us.

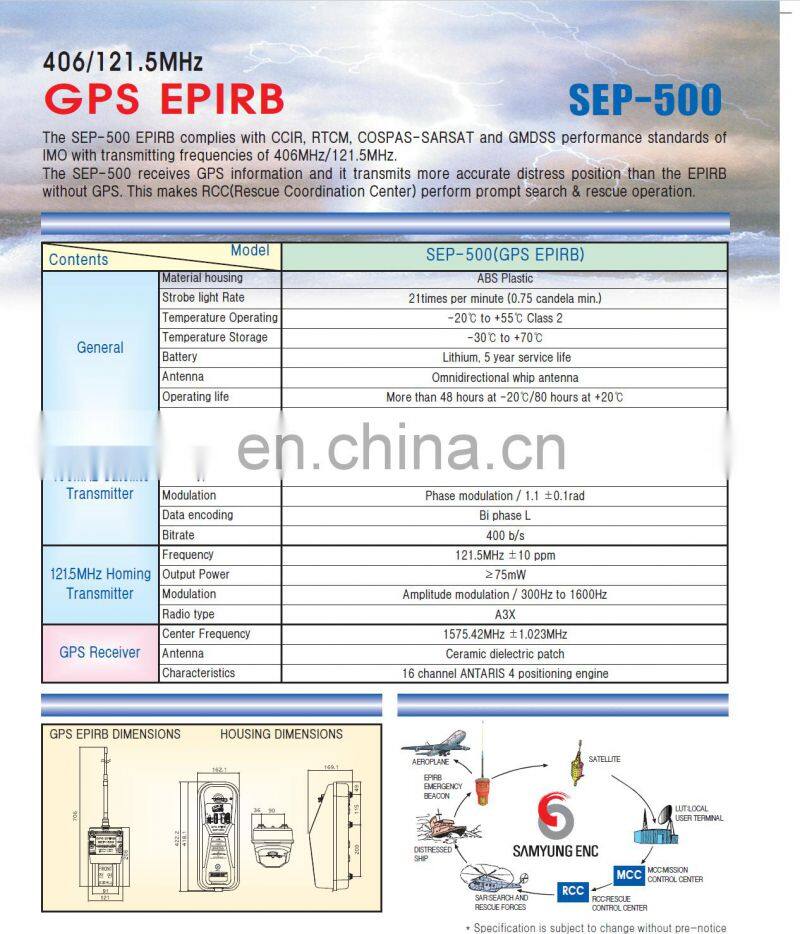

Specifications

 GENERAL

•Material housing : ABS Plastic

• Strobe light : 21times per minute (min. 0.75 candela min)

•Temperature Operating : Operating -20℃ ~ +55℃

•Temperature Storage : -30℃ to +70℃

•Battery : Lithium - 4 years service life

•Antenna : Omnidirectional whip antenna

•Operating life : More than 48 hours at -20℃/80 hours at +20℃

• Weight : 1.5kg

GPS Receiver

• Center Frequency : 1575.42MHz ±1.023MHz

•Antenna : Ceramic dielectric patch

•Characteristics : 16 channel ANTARIS 4 positioning engine

 406MHz SATELLITE TRANSMITTER

•Frequency : 406.037MHz ±2ppm

• Output power : 5W±2dB

• Radio type : G1B

•Modulation : Phase modulation 1.1 ± 0.1 rad

• Data encoding : Bi phase L

•Bitrate : 400b/s

 121.5MHz HOMING TRANSMITTER

•Frequency : 121.5MHz±10ppm

• Output power : ≥75mW

•Modulation : AM, Sweep Tone from max 1600Hz to min 300 Hz

• Radio type : A3X
