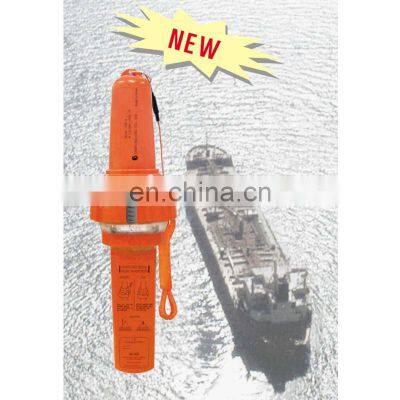

Marine electronics maritime navigation communication SAMYUNG SAR-9 IMO GMDSS radar research and rescue transponder Radar SART



Please contact with me before purchasing for the shipment, real product price and configuration.

If you want to make bulk purchase or be our agent, please contact with us.



Feature

• Complied with related IMO/GMDSS requirements

• Designed for reliable operation in the roughest of marine evironments

• Lightweight and rugged construction is suitable for placing at liferafts.

• Complete set with a liferaft mounting kit

• Efficiently assisting ship or survival craft rescue operations

Specifications

• Frequency : 9.2 ~9.5 GHz

• Polarization : Horizontal

• Vertical beam width : +12.5 Degrees

• Azimuthal beam width : Omnidirectional to ±2dB

• Radiated power : > 400mW (+26dBm)

• Form of sweep : Sawtooth(12 sweeps)

• Pulse emission : < 100us

• Forward sweep time : 7.5us ± 1us

• Return sweep time : 0.4us ± 0.1us

• Recovery time : < 10us

• Response time : < 0.5us

• Effective sensitivity : better than -50dBm

• Duration of operation : 96 hours in standby condition followed by a minimum 8 hours of transmissin while being continuously interrograted by an X-band radar with a pulse repetition frequency of 1KHz at extreme temperatures

• Battery life : 5 years

• Temperature range : Operating -20℃ to 55℃, Storage -30℃ to 65℃
