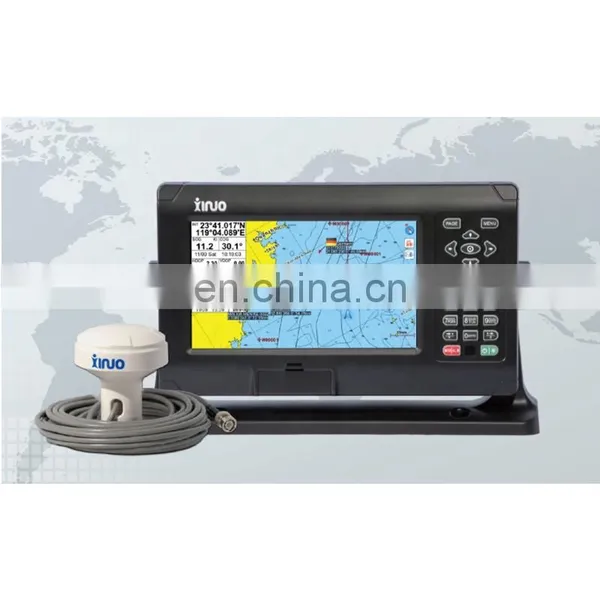

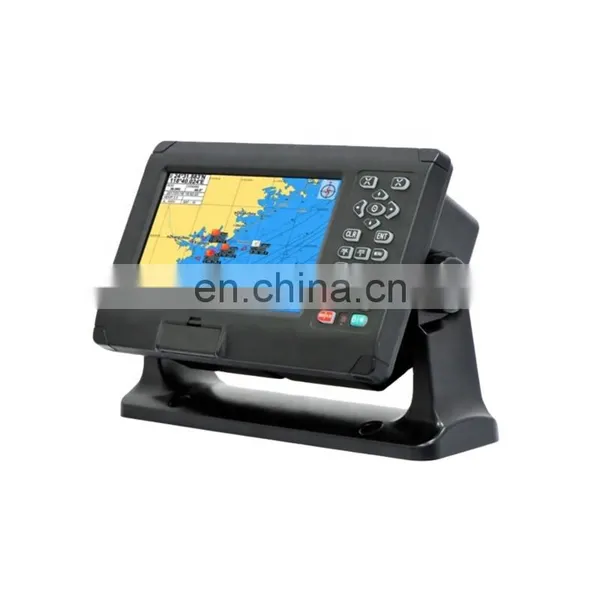

Marine electronics navigation communication XINUO XF-808B 8'' GNSS nautical GPS chart plotter class b AIS transponder combo



Please contact me before purchasing for the shipment and real product price and detailed configuraiton

If you want to make bulk purchase or be our agent, please contact with us

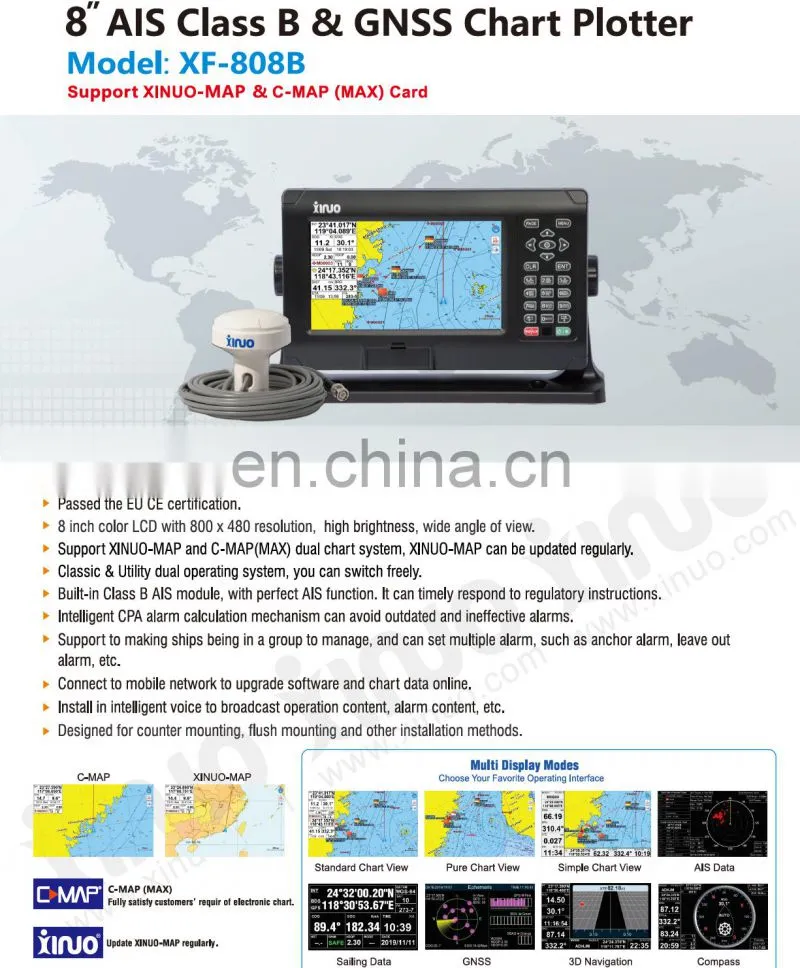

8” Color LCD with 800 x 480 resolution, high brightness and wide angle of view.
C-MAP MAX & XINUO-MAP dual chart systems for user to choose.
Fully support AIS function, such as CPA alarm, AIS vessel monitor, etc.
Multi-language support and six display modes options.
Built-in global chart, upgrade XINUO chart regularly.
Floating GND power design, more stable and reliable.
Conform to IPX5 water-proof standard.





 Display unit  XF-808B
 Display Type   Color TFT LCD
 Display Size    8 inch
 Display Resolution  800 × 480 pixels (WVGA)
 Display Brightness   550cd/m2
 Language  English, Simplified Chinese, Traditional Chinese, Vietnamese, Bahasa Malaysia, Turkish,  Thai, Greek, Indonesian, Japanese, Korean, Spanish; Burmese
 Display Modes  Standard Chart View, Simple Chart View, AIS Data , GPS Data, 3D Navigation, Compass
 Memory Capacity  10000 waypoints, 200 routes ,10000 marks, one route can indicate 1000000 waypoints
 Interface   0183 Output 2 Ports, 0183 Input 2 Ports
 Chart   C-MAP (MAX) & XINUO MAP
 Power Supply   DC10V-36 V
 Enviromental
 Working temperature  -15℃~+55℃
 Storage temperature  -20℃ ~ +60℃
 Waterproofing  IPX6
 AIS Receiver
 Frequency  156.025MHz ~ 162.025MHz
 Bandwidth  25kHz
 Modulation  GMSK / FM
 Data Rate  9600 bps
 Number of AIS transmitter  1
 Number of AIS Receiver  2 (Contains A and B channels)
 AIS Channel A  CH87B(161.975MHz)
 AIS Channel B  CH88B(162.025MHz)
 Output Power  2 W
 Rx Sensivity  < -107 dBm @ 20% PER
 GNSS Performance
 GPS Receiver  22 tracking channels/ 66 receiving channels (Support WAAS/EGNOS/MSAS/GAGAN)
 Receive Frequency  L1 (1575.42 MHz)
 Time to First Fix  Less than 39 seconds (Cold start)
 Tracking Velocity  999 knots
 Coordinate Systems  WGS-84 (and others)
 Accuracy
 GPS  Position: < 15 meters, 95% typical           Velocity: 0.1knot RMS steady state
 DGPS (USCG/RTCM)  Position: 3~5 meters, 95% typical            Velocity: 0.1 knot RMS steady state
 DGPS (WAAS)  Position: <3 meters, 95% typical              Velocity: 0.1 knot RMS steady state
 Standards

 IEC 62287-1 Ed. 2, 2010; IEC 61108-1 Ed. 1, 2003
 IEC 61162-1 Ed. 3, 2007; ITU-R M.1371-4, 2010

 IEC 60945 :2002 EMC related items
 ETSI EN 301 489-1V1.8.1:2008 EMC related items

 IEC 60950-1:2006
 ETSI EN 301 489-3 V1.4.1:2002 EMC related items

 IEC 60529:2006 EMC related items
 ETSI EN 300 440-2 V1.4.1:2010 Spurious related items
 ETSI EN 300 440-1 V1.6.1:2010 Spurious related items
