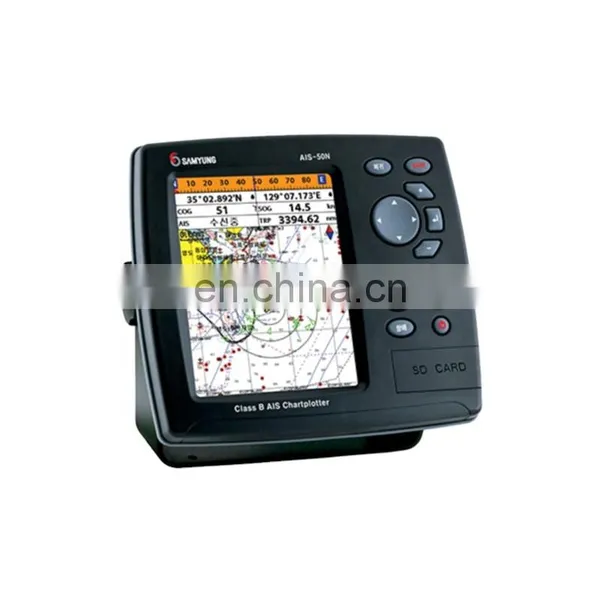

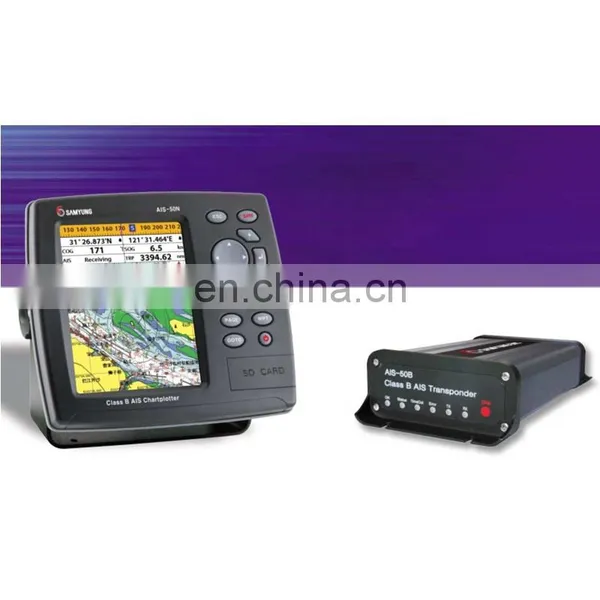

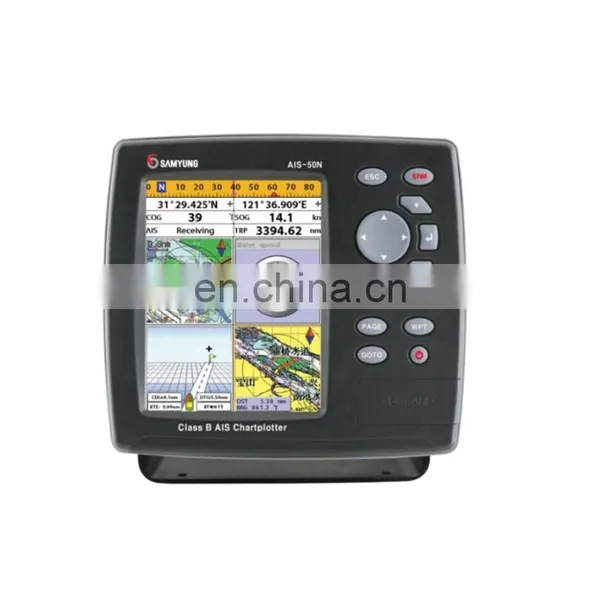

Help CenterMarine Electronics Navigation Communication SAMYUNG SI-50N 5.6'' AUTOMATIC IDENTIFICATION SYSTEM Combo CLASS B AIS Chartplotter
Related Products
-
Marine Electronics Navigation Communication XINUO XA-198 GPS Plotter Automatic Identification System Class A AIS TransponderNegotiableMOQ: 1 -
Marine Electronics Maritime Navigation Communication XINUO XF-607B 7'' GNSS GPS Chart Plotter Class b AIS Transponder ComboNegotiableMOQ: 1
-
Marine Electronics Navigation Communication XINUO XF-808B 8'' GNSS Nautical GPS Chart Plotter Class b AIS Transponder ComboNegotiableMOQ: 1
-
Marine Electronics Navigation Communication XINUO XF-1069B 10.1'' GNSS Nautical GPS Chart Plotter Class b AIS Transponder ComboNegotiableMOQ: 1
-
Marine Electronics Navigation Communication XINUO XA-200 NMEA 0183 Nautical Ship Boat Class b AIS Transponder TransceiverNegotiableMOQ: 1
Please contact me before purchasing for the shipment and product price and detailed configuraiton.
If you want to make bulk purchase or be our agent, please contact with us.

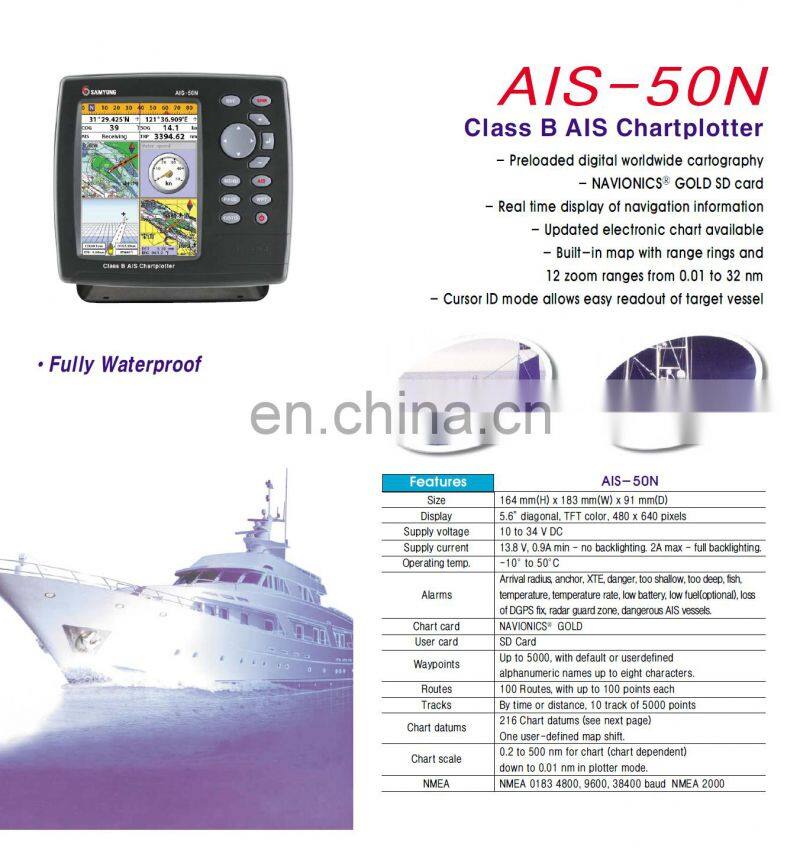

Feature
•Preloaded digital worldwide cartography
•NAVIONICS®GOLD SD card
• Real time display of navigation information
•Updated electronic chart available
•Built-in map with range rings and 12 zoom ranges from 0.01 to 32 nm
• Cursor ID mode allows easy readout of target vessel
Specifications
• Size : 164 mm(H) x 183 mm(W) x 91 mm(D)
•Display : 5.6 diagonal, TFT color LED, 480 x 640 pixels
• Supply voltage : 10 to 34 V DC
• Supply current : 13.8 V
•Operating tem : -10° to 50°C
• Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish, temperature, temperature rate,
low battery, low fuel(optional), loss of DGPS fix, radar guard zone, dangerous AIS vessels.
• Chart card : NAVIONICS® GOLD
• User card : SD Card
•Waypoints : Up to 5000, with default or userdefined alphanumeric names up to eight characters.
• Routes : 100 Routes, with up to 100 points each
• Tracks : By time or distance, 10 track of 5000 points
• Chart datums : 216 Chart datums (see next page) One user-defined map shift.
• Chart scale : 0.2 to 500 nm for chart (chart dependent) down to 0.01 nm in plotter mode.
• NMEA : NMEA 0183 4800, 9600, 38400 baud NMEA 2000
