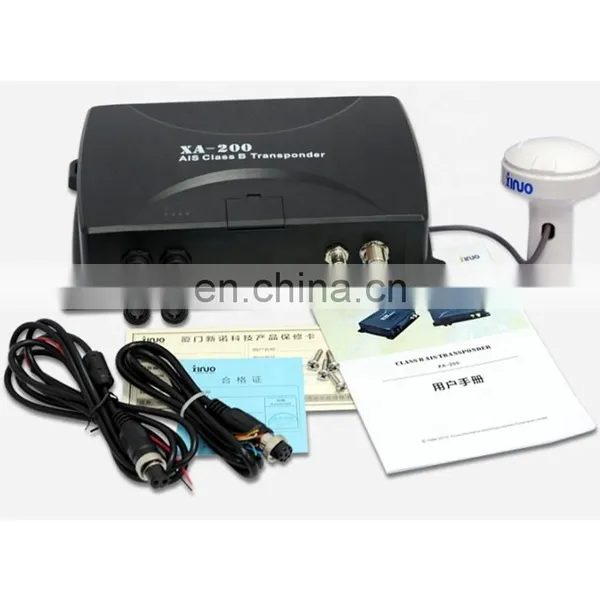

Marine Electronics Navigation Communication XINUO XA-200 NMEA 0183 Nautical Ship Boat Class b AIS Transponder Transceiver
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marine Electronics Maritime Navigation Communication HM-106B Nautical Shore Based AIS Receiving StationNegotiableMOQ: 1 -
Marine Electronics Navigation Communication NSI-1000 7'' Touch Display Automatic Identification System Class A AIS TransponderNegotiableMOQ: 1
-
Marine Electronics Navigation Communication NAB-1000 Imo Vessel Automatic Identification Sysyem Class b AIS TransponderNegotiableMOQ: 1
-
Marine Electronics Navigation Communication IMO NPP100 AIS Pilot Plug Used for Vessel Automatic Identification System AISNegotiableMOQ: 1
-
AIS MOB Personal Locator Beacon Man Over Board Rescue Survivor Recovery Life Jacket AIS Sart Marine Electronics ME3004 GPSNegotiableMOQ: 1
Please contact me before purchasing for the shipment and real product price and detailed configuraiton
If you want to make bulk purchase or be our agent, please contact with us
Fashionable black box designed, connect with a display convenient, stable and reliable.
Floating GND power design, more stable and reliable.
Conform to IP65 water-proof standard.
AIS SMS transceiver channel.
Convenient to set AIS parameter configuration.
| Display unit | XA-200 |
|---|---|
| VHF TRANSCEIVER | |
| Frequency Range | 156.025 MHz ~ 162.025 Mhz |
| Channel Bandwidth | -20℃ ~ +60℃ |
| Modulation | GMSK / FM |
| Data Rate | 9600 bps |
| Number of AIS transmitter | 1 |
| Number of AIS Receiver | 2 |
| AIS Channel 1 | CH 87 (161.975 Mhz) |
| AIS Channel 2 | CH 88 (162.025 Mhz) |
| Tx Power Output | 2W/5W |
| Rx Sensivity | < -107 dBm @ 20% PER |
| ENVIRONMENTAL | |
| Operating Temperature | -15°C ~ 55°C |
| Waterproofing | IP65 |
| POWER SUPPLY | |
| Supply Voltage | 12-36V DC |
| LED INDICATION | |
| RX LED | AIS signal receive |
| TX LED | AIS signal transmit |
| CONNECTION INTERFACE | |
| GPS Antenna Connector | BNC |
| VHF Antenna Connector | SL-259(Female) |
| NMEA0183(RS-422) | IEC 61162-1/IEC 61162-2, Baud rate 38,400 (default), programmable, input/output at same baud rate. |
| RS-232 | Baud rate 115,200 (default), programmable |
| Standards | |
|
IEC 62287-1 Ed. 2, 2010; IEC 61108-1 Ed. 1, 2003 IEC 60945 :2002 EMC related items IEC 60950-1:2006 IEC 60529:2006 EMC related items
|
|
