Help Center350A 380-780nm Flux Meter Portable Lumen Led Photometric Testing Equipment Everfine Spectrometer
Related Products
-
350UV Portable Spectrometer 230-850nm CCD SpectroradiometerNegotiableMOQ: 1 -
PN350P 350nm-800nm Handheld Light Spectrometer Grow Light Meter Plant Lamp Ppfd Meter Par MeterNegotiableMOQ: 1
-
PN350C 380-780nm Hot Selling Spectrometer Handheld Spectrometer Spectrum RadiometerNegotiableMOQ: 1
-
PN350B 380-780nm Handheld Illuminance Analyzer Blue Light Tester Spectrometer Red and Blue Ray Irradiance MeterNegotiableMOQ: 1
-
PN350C Wavelength Range 380-780nm With pc Software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital LuxNegotiableMOQ: 1
OHSP-350A Luminous flux Version, Cancelled the illuminance (LX) parameters and add the luminous flux (LM) parameters on the basis of the quintessence, MD8 interface, with 485 communication functions.
Measuring Parameters
1. CCT Tc (K) and blackbody deviating Duv.
2.Luminous flux (LM), radiation flux (W) and light effect (lm/W).
(need to manually enter the light source power when using machine).
3. chromaticity coordinates (x, y), (U, V), (U ', V').
4. relative spectral power distribution P (lambda).
5. color rendering index Ra, Ri (i=1 ~ 15).
6. color tolerance (SDCM, CIE and Macadam rectangle u 'V' round).
7. Dominant wavelengths, peak wavelengths.
8. light and dark visual ratio S/P.
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z.
10. more functional parameters can be customized.

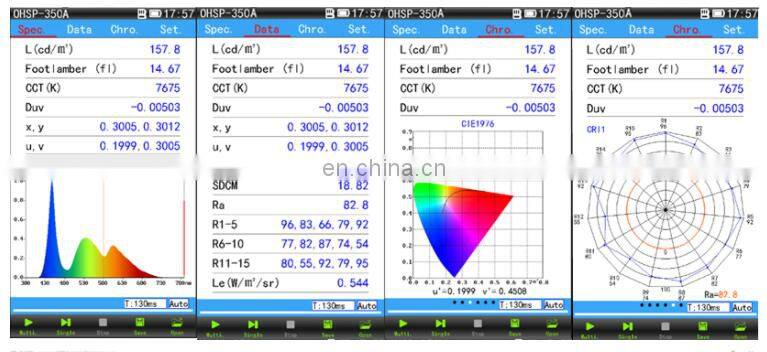

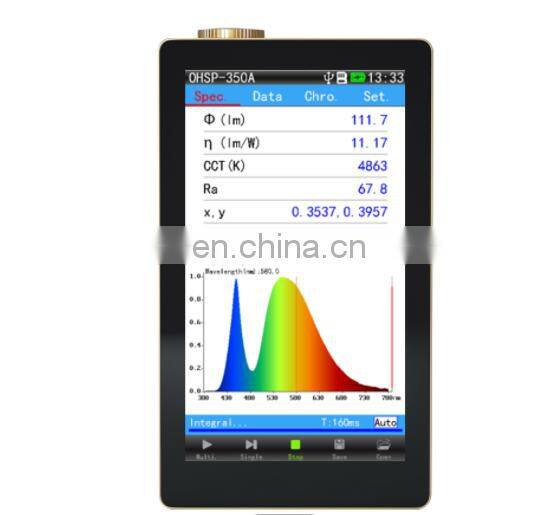

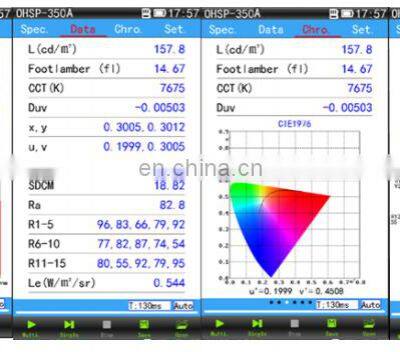

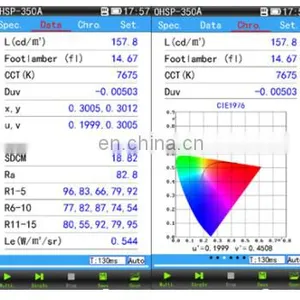

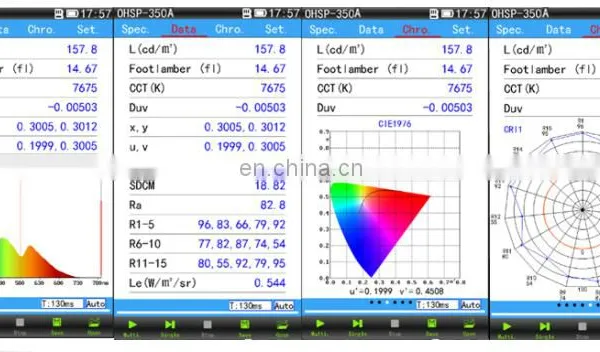

Front front panel and display interface diagram

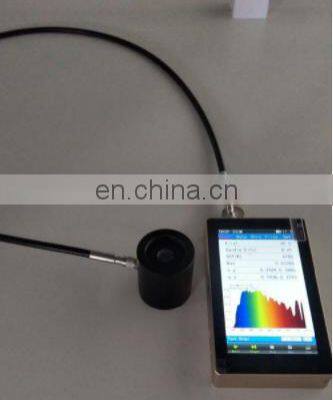

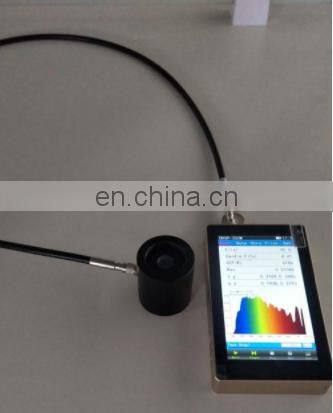

11. Nameplate 12. Light guide fiber
