PN350C wavelength range 380-780nm with pc software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital lux



PN350C wavelength range 380-780nm with pc software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital luxPN350C wavelength range 380-780nm with pc software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital luxPN350C wavelength range 380-780nm with pc software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital luxPN350C wavelength range 380-780nm with pc software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital luxPN350C wavelength range 380-780nm with pc software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital luxPN350C wavelength range 380-780nm with pc software Handheld Spectral Illumination Tester and Meter Portable CCT CRI Digital lux



Product Description

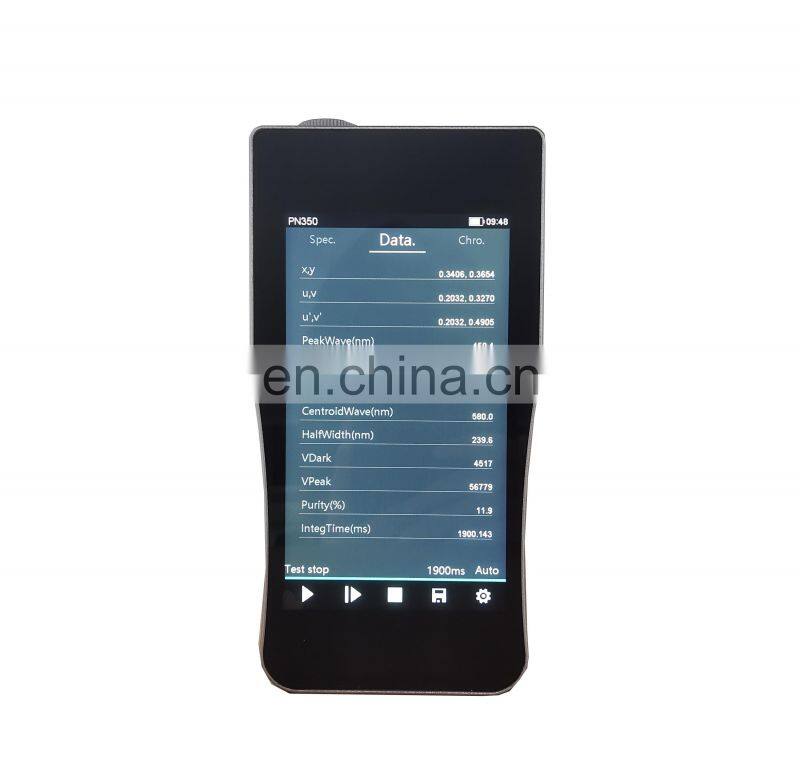

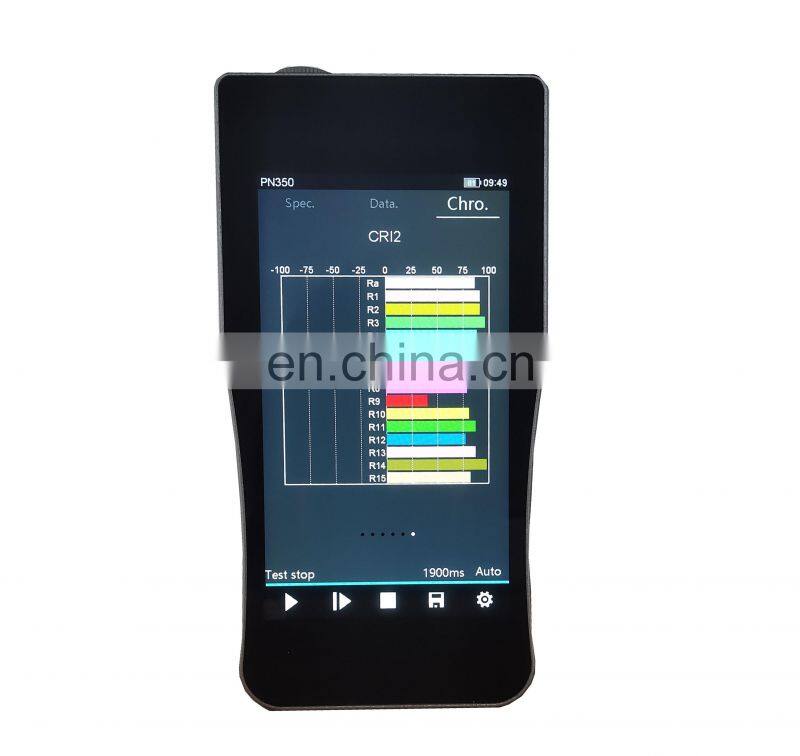

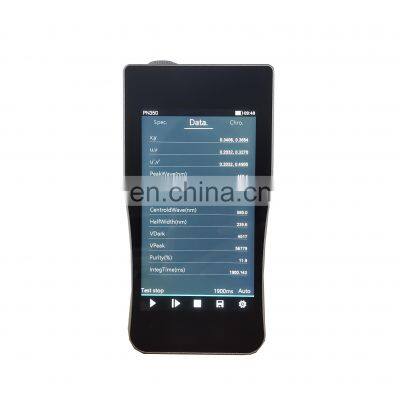

HP350C Spectral irradiance colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED wide spectrum light source ,but also measure CFL,HID narrow spectrum light source.

Characteristic:
1. Long Focus System, 2 nm FWHM
2. Patent Auto-Zero&Compensation Tech. Patent number : 201920164191.3
3. Self-developed Operating System, Integration time 20us-10s
4. High Performance CCD Sensor, 3648 dots
5. Electronic shutter Technology, Fast and stable
6. CNC Machining of Aluminum Alloy
7. Large capacity lithium battery
Specification
Name
Specifications
Name
Specifications
Spectral platform
Long focus CT system
Illuminance
5-200000lx
Spectral bandwidth
2nm (FWHM)
CCT range
1000-100000K
Spectral resol.
0.2nm
x,y Accuracy
±0.001
Sensor
CCD,3648 dots
x,y Repeatability
±0.0005
Integration time
10μs-10s
Illuminance accuracy
±4%(Class 1)
Display screen
5' HD IPS LCD
Chromogenic accuracy
±1.5%
Resolution
480X854
Wavelength Accuracy
±0.5nm
Measure model
Single / Continuous
Wavelength Interval
1nm
Exposure model
Auto / Manual
AD Resolution
16bits,250kSPS
Display model
6 Parameters Sel Spectral Curve
Language/File save
Chinese/English 8GB SD Card
Output format
Excel, jpg
Data Interface
SD Card/USB2.0
Window size
Ø 10mm
Dimensions (L x W x H)
163x81x25.8mm

Application
Application
