Digital Portable Spectrum Analyzer for LED Testing

Digital Portable Spectrum Analyzer for LED Testing photo-1
US$ 1,500 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chuangxin
Model Number:
IS03
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Chuangxin
Model Number IS03
Size 48*36*25cm
Weight 2.5KG
Wavelength Range 380nm-780nm
Measurement Range 380nm~780nm
Product Description

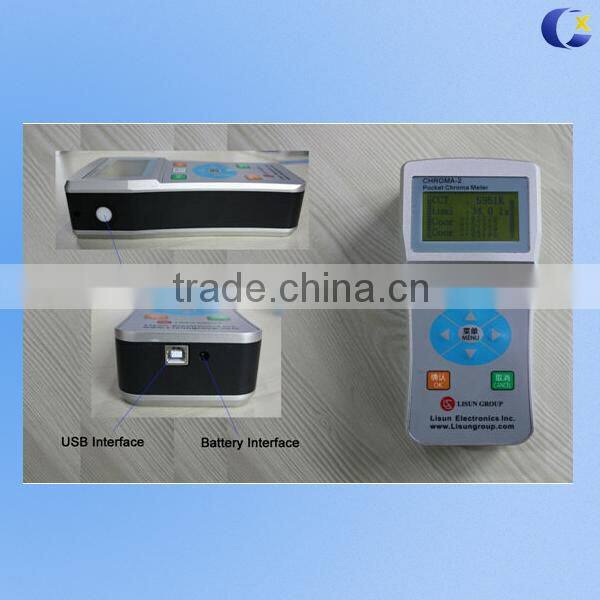

CHROMA-2 Digital Portable Spectrum Analyzer

CHROMA-2 Portable Colorimeter  is developed based on TOSHIBA TCD1304DG linear array CCD detector. It makes traditional laboratory instrument available for the production on-line quality acceptance, thus greatly improved the efficiency of fluorescent lamp, CFL, LED.

Measurements:
Chroma Coordinates (x, y, u, v, duv), CCT (Correlated Color Temperature), CRI (Color Rendering Index), Dominant Wave, Peak Wave, Flux RGB Ratio, Half Width, Purity, Spectrum diagram. Illuminance test (lx) or flux test (lumen) with the integrating sphere.

Specifications:
• LCD Display and can measure all of the chroma color parameters and illuminance directly
• It can test flux additional with the integrating sphere
• Rang of wavelength: 380nm~780nm( visible sight)
• Accuracy of wavelength: ±0.5nm; repeatability: ±0.2nm
• Accuracy of chromaticity coordinate: ±0.003; resolution: 0.0001
• Correlated Color Temperature range: 1500~25000K (±3%); resolution: 1K
• Power supply: 3.7V Li-Battery
• Dimension: (Width×Height×Depth) 90mm×180mm×48mm; Weight: approximate 1kg
• Communicate the PC via RS-232, the English software can be run in WinXP or Win7

 Digital Portable Spectrum Analyzer for LED Testing
