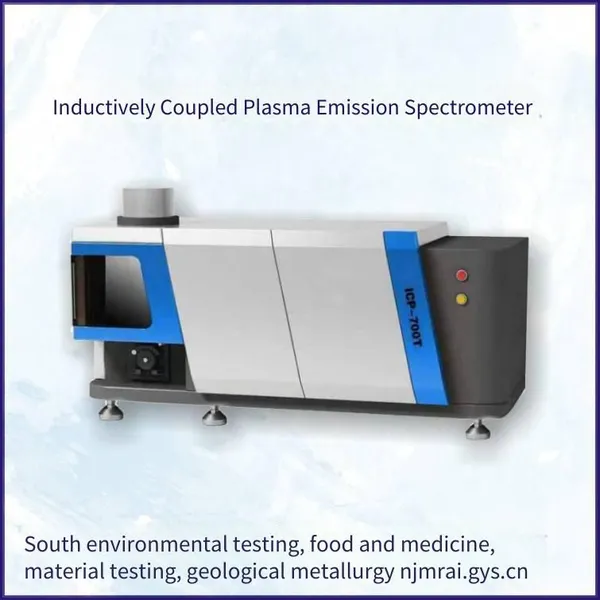

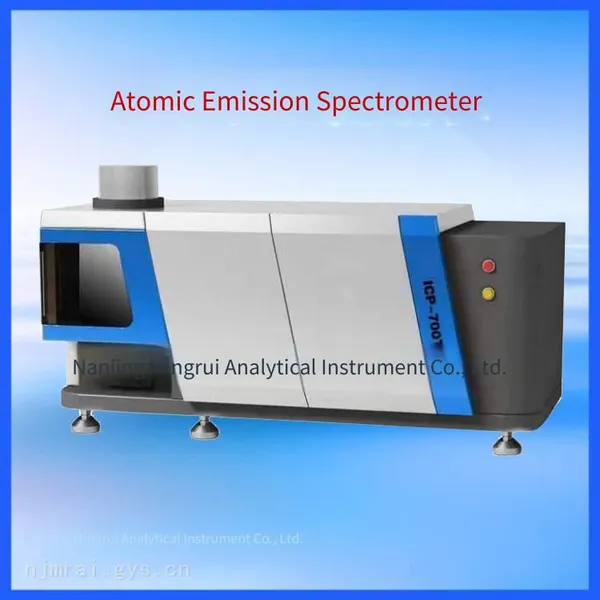

Nanjing Mingrui Analytical Instruments Co., Ltd. ICP700T Heavy Metal Spectrometer for Leather and Fur is widely used in fields such as environmental monitoring, materials science, geology and mineral resources, food and agricultural product safety, medicine and biology, and industrial production. It is an atomic emission spectrometry analysis instrument with a high-frequency inductively coupled plasma as the excitation source. It can detect more than 70 kinds of heavy metal elements simultaneously, with a sensitivity of up to the ppb level. Tel: 18651882886 (WeChat ID).
Heavy Metal Spectrometer for Leather and Fur Specifications and Technical Indicators
*Solid-state power supply
Operating frequency: 27.12MHz
Frequency stability:
Matching method: Automatic matching
Output power: 800W - 1600W, continuously adjustable, with a power supply efficiency of more than 65%
Output power stability: ≤0.05%
Output working coil inner diameter: 25mm, 3 turns, equipped with a quartz torch tube with an outer diameter of 20mm and three concentric layers
Coaxial nebulizer outer diameter: 6m; Double-barrel spray chamber outer diameter: 35mm
Scanning spectrometer
Optical path: Czerny turner type
Focal length: 1000mm
Grating specifications: Ion-etched holographic grating, ruling density: 3600L/mm or 2400L/mm; Engraving area: (80X110)mm
Resolution: 0.008nm (3600-line grating) ≤0.015nm (2400-line grating)
Scanning wavelength range: 3600-line grating: (190 - 500)nm; 2400-line grating: (190~800)nm
Electronic measurement and control circuit
Photomultiplier tube specifications: R212/R928
Photomultiplier tube negative high voltage: (-50~-1000)V
Photomultiplier tube current measurement range: (10-12~10-4)A
Signal acquisition: VF conversion
Computer system
Host: Lenovo brand computer
Monitor: 17-inch liquid crystal display
Printer: Canon inkjet printer
Overall machine technical indicators
Scanning wavelength range: 190 - 460nm (4320Lmm grating), 190nm - 500nm (3600L/mm grating), 190nm~800nm (2400L/mm grating);
Measurement range
a. Liquid content: 0.01ppm - several thousand ppm
b. Solid content: 0.001% - 70%
Repeatability: (i.e., short-term stability) Relative standard deviation RSD ≤ 1.5%;
Stability: Relative standard deviation RSD ≤ 2%;
Testing speed: 5 - 8 elements/minute
Heavy Metal Spectrum Analyzer for Leather and Fur Features
It can measure more than 70 elements.
Fast analysis speed, capable of measuring 5 - 8 elements per minute.
Simultaneous analysis of multiple elements. Customers can freely choose the number of elements and arrange the measurement sequence. Low detection limit, reaching the ppb level, and Ba can even reach 0.7ppb.
Wide linear dynamic range, up to 6 orders of magnitude. High and low contents can be measured simultaneously.
Low analysis cost. One bottle of argon can be used for 8 hours.
Total reflection achromatic optical system.
Using a concave mirror instead of a convex lens as the optical focusing element solves the chromatic aberration problem caused by different focal points of different elements and improves the efficiency of the optical system at the same time.
Wide wavelength range.
Selecting a 4320-line grating, the wavelength range can reach 190 - 460nm.
Selecting a 3600-line grating, the wavelength range can reach 190 - 500nm.
Selecting a 2400-line grating, the wavelength range can reach 190 - 800nm.
Fully automated design.
High degree of automation. Except for the power switch, all functions of the whole instrument are controlled by a computer, which is reliable, safe, and convenient.
Automatic control of gas flow.
In the sample introduction system, the carrier gas, plasma gas, and auxiliary gas are all controlled by advanced mass flow controllers (MFCs), which have the advantages of continuously adjustable flow and stable flow, ensuring the stability of the sample introduction system and providing a strong guarantee for the stability of the light source.
Advanced sample introduction system.
The sample introduction system is efficient and stable. It can be equipped with various domestic and foreign nebulizers and spray chambers, and can be equipped with high-salt nebulizers, hydrofluoric acid-resistant nebulizers, etc., to meet the needs of different customers.
Stable waste liquid discharge system.
The waste liquid is discharged through a peristaltic pump to ensure that the sample introduction volume is consistent with the waste liquid discharge speed. Customers can appropriately adjust the speed as needed to ensure the stability of the standard introduction system.
*Stable and advanced all-solid-state radio frequency power supply.
The radio frequency power supply used in the instrument is an independently developed all-solid-state radio frequency power supply, which has many advantages such as small size, high efficiency, stable output power, and various protection functions, further improving the stability and safety of the instrument.
*Fast and accurate fully automatic matching function.
The load terminal uses an independently developed fully automatic matching technology, which has the advantages of fast matching speed and high accuracy, ensuring that the output power is maximally added to the load, improving the use efficiency of the power supply, thereby improving the stability of the instrument and making the entire ignition process convenient and simple.
* One-key ignition
Combined with solid-state power supply and automatic matching technology, the one-key ignition function is perfectly realized. Users only need to click the ignition button, and the instrument will automatically perform many actions such as gas purging, gas flow check, ignition, and matching, and transmit the information to customers in real time, saving customers worry and trouble.
* Automatic adjustment of observation height
Different elements have different observation heights. Customers can appropriately adjust the observation height of the flame through the software based on experience or comparison to obtain good measurement results at the best position.
Powerful graphic diagnosis function
The powerful graphic diagnosis function can help customers fully understand the current working status of the instrument, and observe the operation status of the instrument under different conditions through appropriate parameter settings to grasp the best measurement conditions.
Automatic multi-element measurement
Select the elements to be measured, set the measurement parameters, and leave everything to the instrument. Finally, directly obtain the measurement results of all elements, which is simple and hassle-free.
* Powerful database management
It has thousands of spectral lines. You can select appropriate spectral lines according to your needs and preferences to avoid possible interference, providing you with more choices and more reasonable recommendations, making the test more professional and accurate.
The software has independent intellectual property rights, powerful functions, and user-friendly operation
The software has powerful functions, with automatic switching function between Chinese and English, and can perform qualitative and quantitative analysis; it has data reprocessing function; it can automatically calculate the element content and automatically generate test reports; it has data screening function to eliminate unwanted data; the database management is perfect, and you can freely save and delete data.
