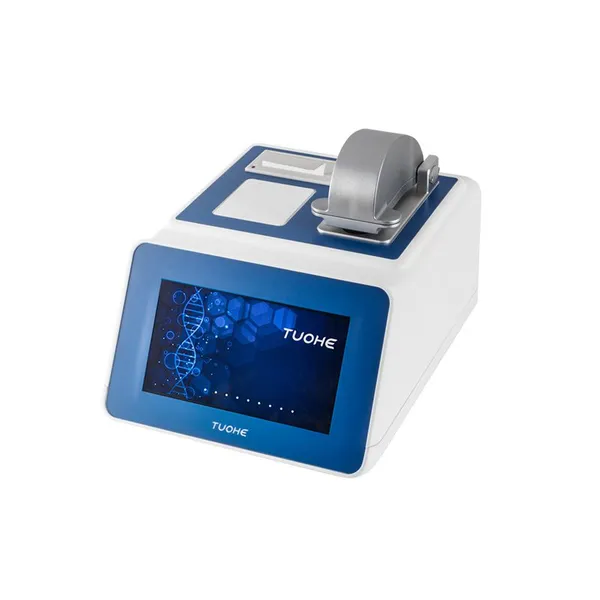

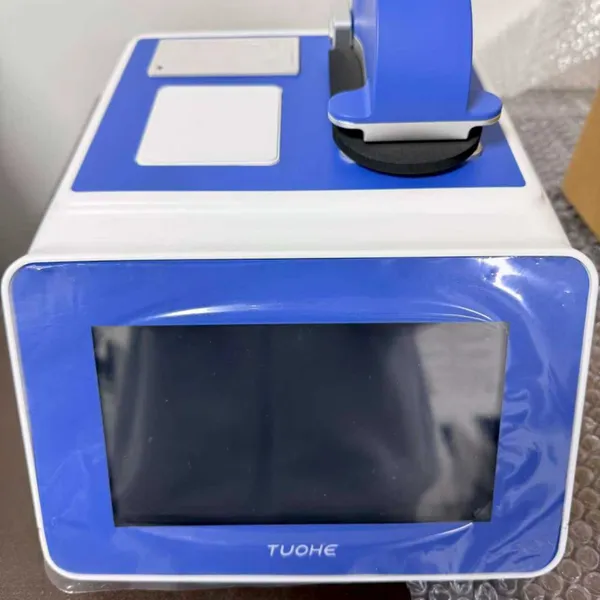

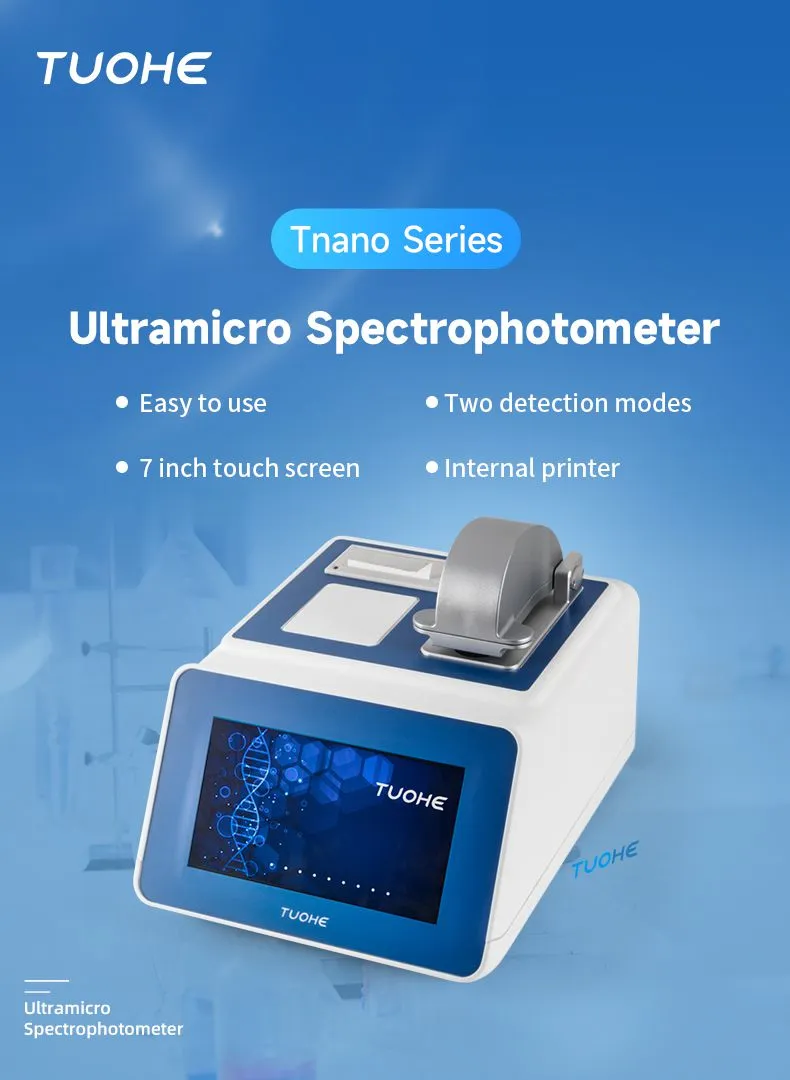

1. Name of goods: Tnano-800 Ultra-Micro Spectrophotometer
2. Main applications: measuring DNA and RNA purity and concentration, measuring protein concentration, and also applicable for absorbance detection in general substance analysis. Fields such as biological science research, medical diagnosis, drug development, environmental monitoring, and food safety testing

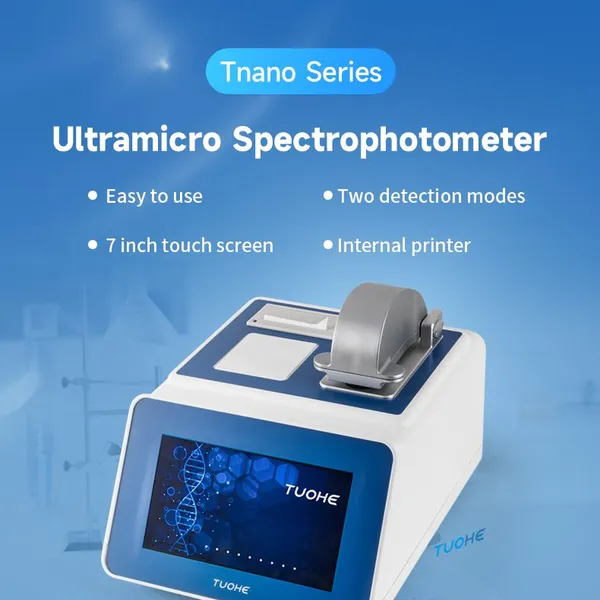

3. Product Features:

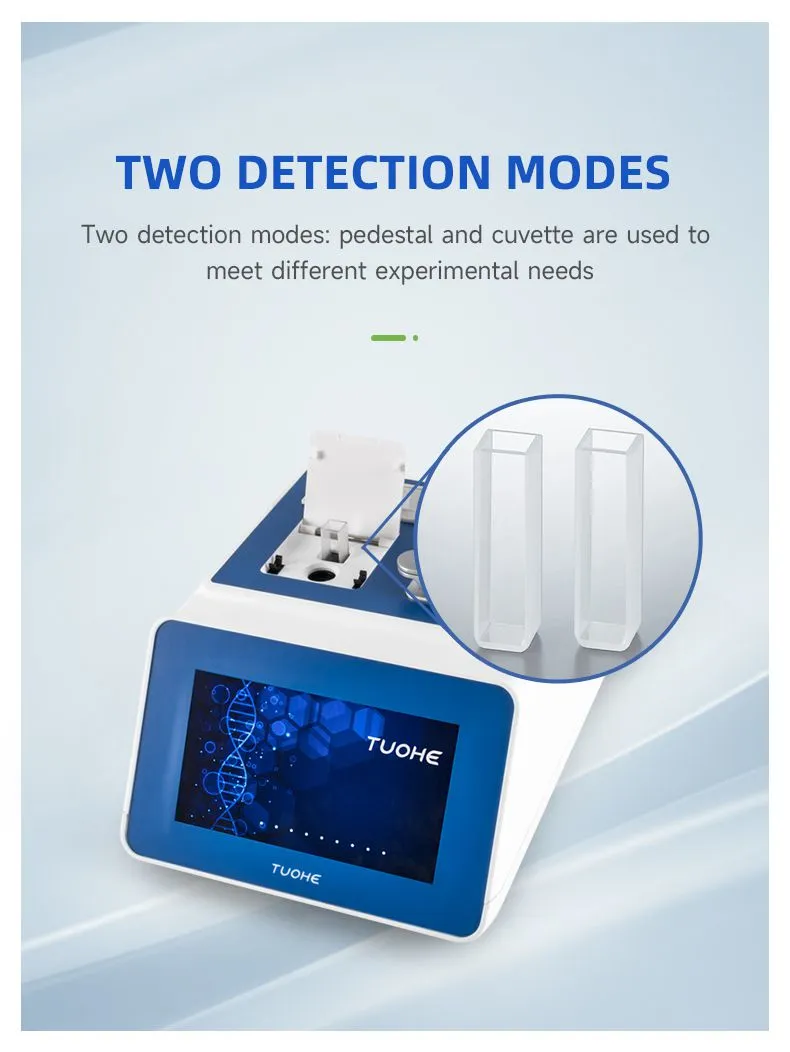

3.1, Adopting two detection modes: base and cuvette

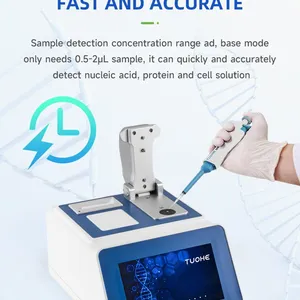

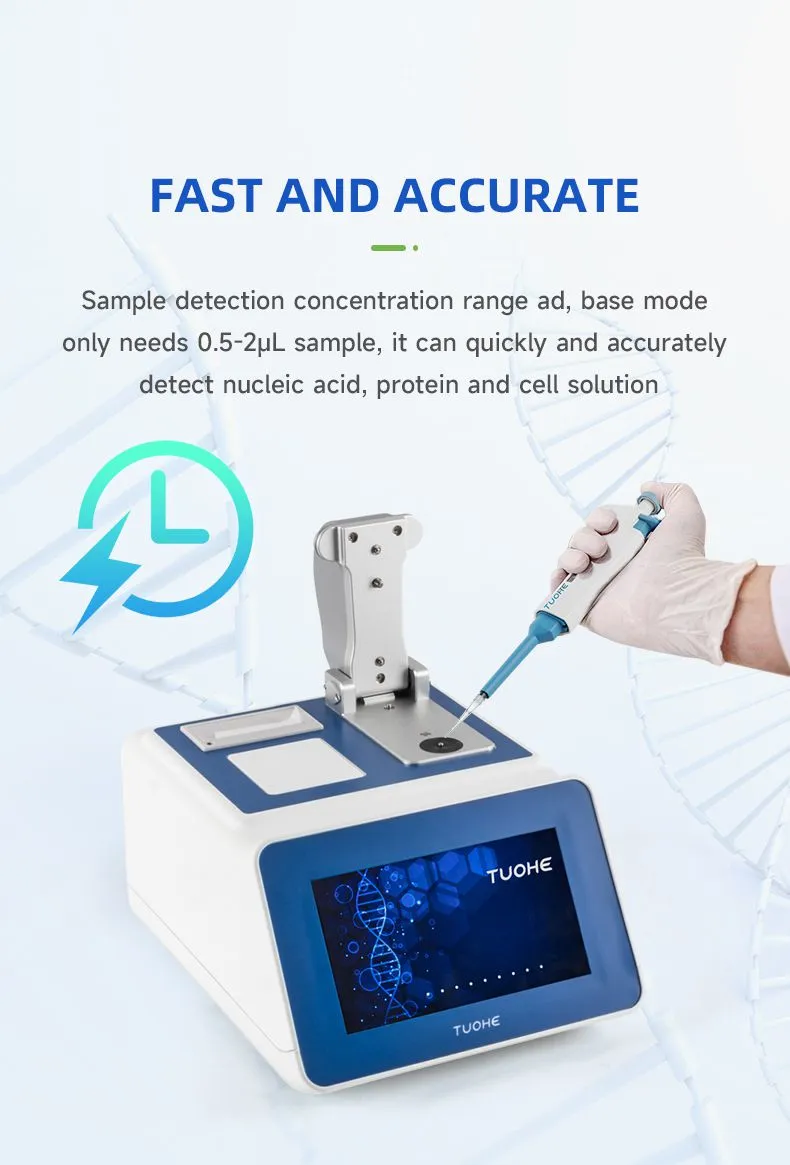

3.2, the base mode requires only 0.5-2ul of sample for rapid and accurate detection of nucleic acids, proteins, and cell solutions
3.3, The sample testing covers a wide concentration range and is easy to operate

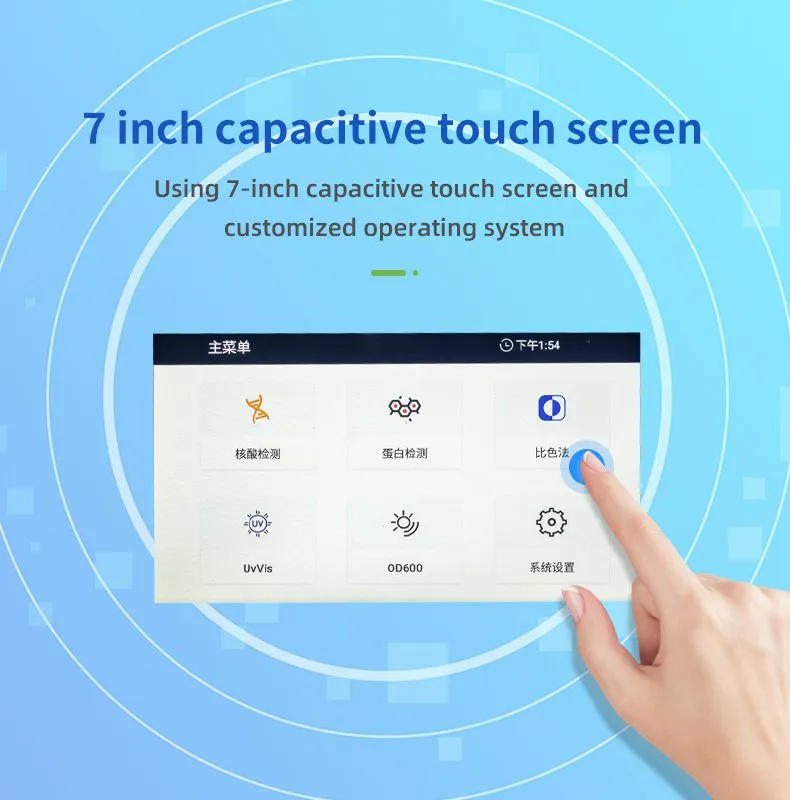

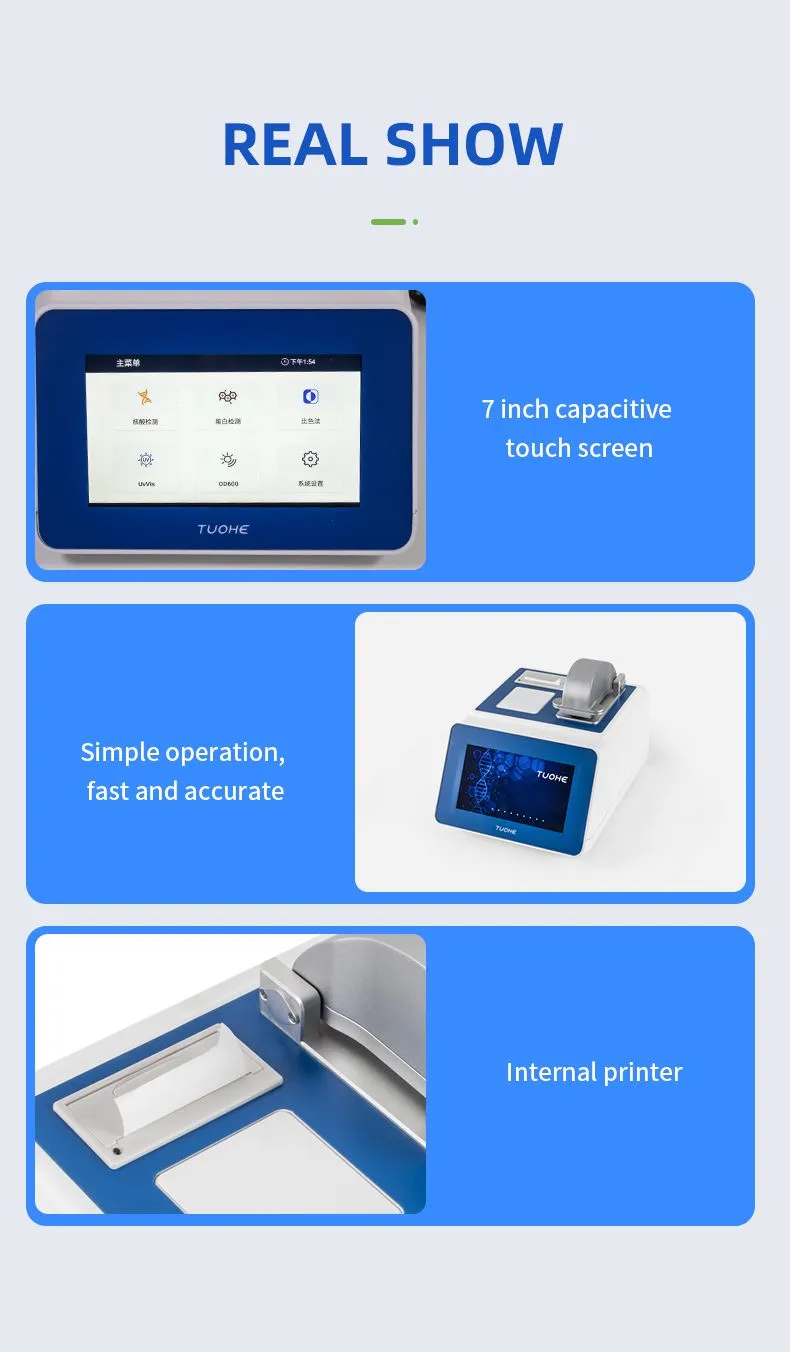

3.4, equipped with a 7-inch capacitive touch screen and a customized operating system

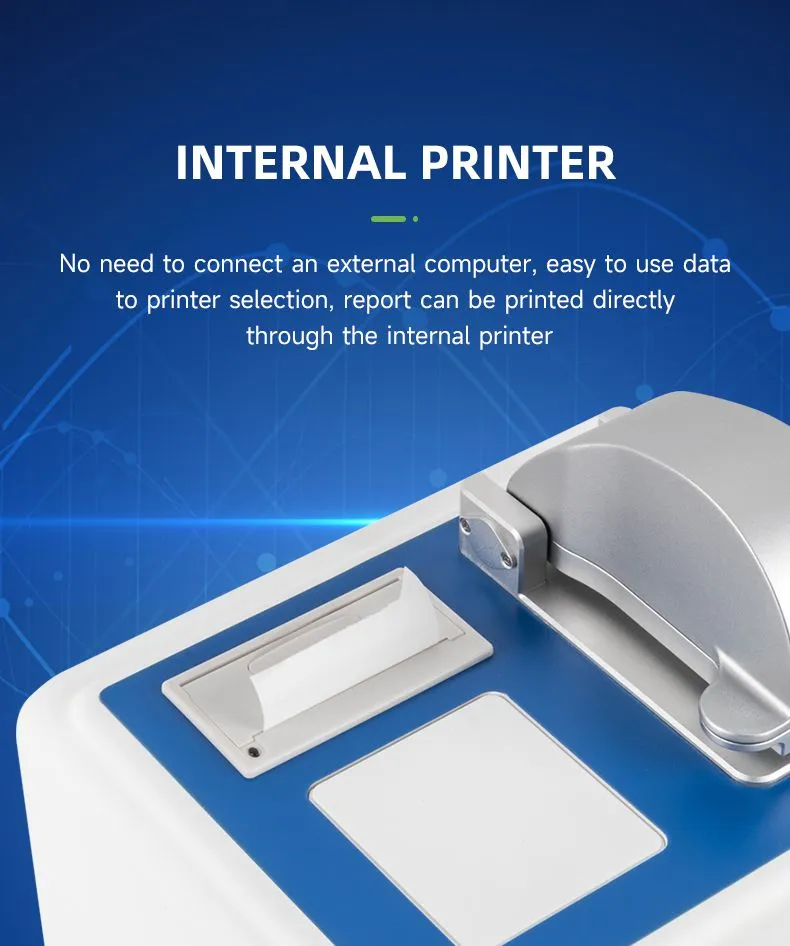

3.5, no external computer required, simple and easy-to-use data-to-printer options, you can directly print the report through the built-in printer
4. Product parameters:
Model: Tnano-800
Wavelength range: (190nm-850nm)
Optical path: 0.02mm, 0.05mm (high-concentration measurement)
0.2 mm, 1.0 mm (for ordinary concentration measurement)
Detector: HAMAMATSU UV-enhanced CCD array, CMOS linear sensor
Spectral bandwidth: 1nm
Nucleic acid detection range: 0 - 27,500 ng/uL dsDNA
Protein detection range: 0.06 - 820 mg/mL BSA
Sample volume requirement: 0.5 to 2 μL
OD600 absorbance range: 0~6.000Abs
OD600 absorbance stability: [0,3) ≤ 0.5%, [3,4) ≤ 2%
OD600 absorbance accuracy: [0,2) ≤ 0.005A, [2,3) ≤ 1%, [3,4) ≤ 2%
OD600 absorbance repeatability: [0,3) ≤ 0.5%, [3,4) ≤ 2%
Absorbance range: 0.02-300A (equivalent to 10mm)
Absorbance accuracy: 0.002Abs (0.2mm optical path)
Absorbance accuracy: ±1% (7.332Abs at 260nm)
Spectral resolution:
Photometric accuracy: ±0.005A or ±1%
Wavelength accuracy: within ±1nm
Wavelength reproducibility:
Sample wavelength scanning: 190 〜850nm
Base measurement requires only: 0.5~2ul
Sample base material: quartz fiber and high-hardness aluminum
Detection time:
Power consumption during standby: 5W
Printing: Built-in thermal printer
Data output mode: USB
Light source/Lifespan: Xenon flash lamp/109 flashes
Power adapter: 24V DC
Power consumption: 25W
Overall dimensions: W200mm x D260mm x H165mm
Weight: 5Kg
We also supply a wide range of other laboratory instruments and equipment. Please feel free to send us an email if you have any specific requirements.
