350UV Portable Spectrometer 230-850nm CCD Spectroradiometer

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

350UV Spectrometer

(range 230nm-850nm)

1.Application:

The spectrometer integrates spectrum and irradiance test functions. It is widely used in UV light

sources, disinfection, light treatment, aging, flaw detection, lithography, and light curing. , Breeding,

plant , solar UV index evaluation, etc.

2.Main functions and features:

Test Function: measure the relative spectral power distribution , peak wavelength, half-peak

bandwidth, UVA(315nm-400nm), UVA1 (UV 320-390nm) , UVB ( 280nm-315nm),

UV365 , UV310 band, UVC (UV254nm), total irradiance in any specific band,with high

measurement accuracy.

The spectral analysis method is an ideal digital integration method, which is not affected by the

spectral distribution of the measured light source and the response bandwidth function of the

detector, it is the most accurate method for measuring UV irradiance

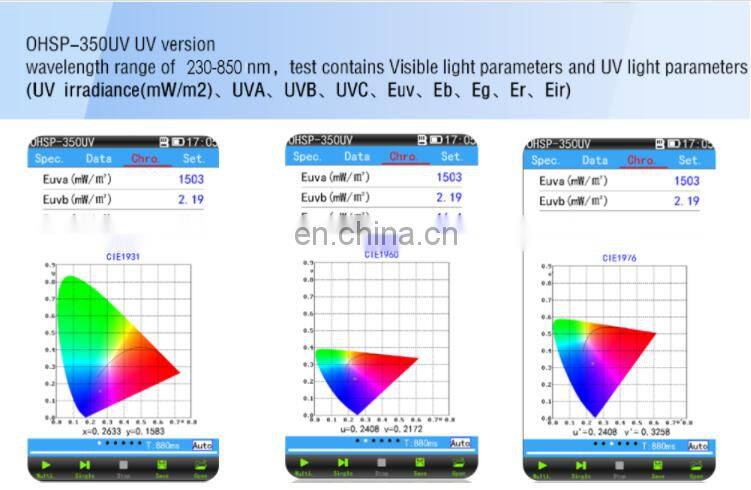

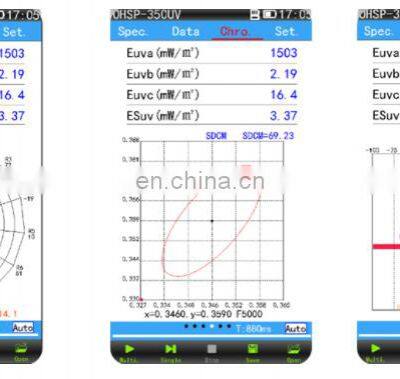

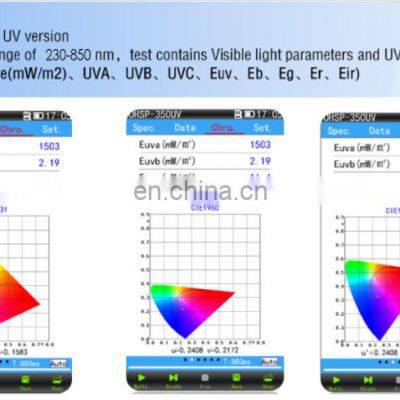

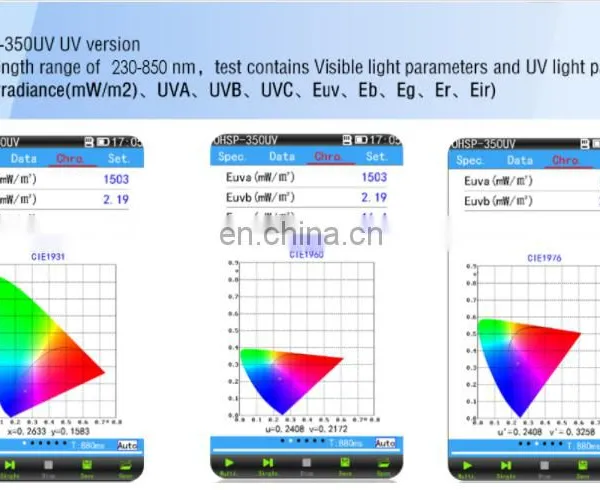

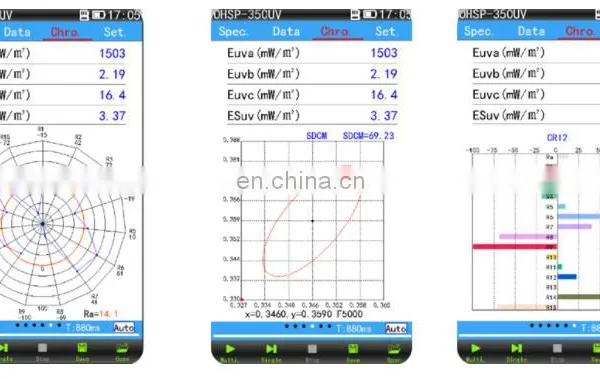

The test data is displayed on a 5-inch HD touch screen. it can be measured on computer via USB line

connection. Not only convenient for users to read data and view, but also effectively avoid

ultraviolet radiation Impact on the human body.

3.Technical:

1. Wavelength:230-850nm

2. Wavelength accuracy:±0.3nm

3. Bandwidth:1.5±0.5nm @365nm

4. Test Range:0-20mw/cm2(different wavelength range with different test range)

5. Test accuracy:Class 1

6. Communication:USB

7. Power:lithium battery

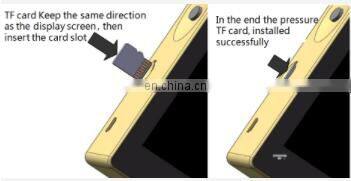

8. 8G Memory Card,Store online test data and historical data,complete recording, more

convenient for on-site comparative analysis, as well as fast data transmission and transfer;

A,Measurement parameters

Irradiance Ee (mW / cm2)

Half width (nm)

Peak wavelength (nm)

Center wavelength (nm)

Centroid wavelength (nm)

UV hazard weighted irradiance

UVC

UVB

UVA

Blue irradiance

Green irradiance

Ultraviolet irradiance

Set segment irradiance

Integration time

Peak signal

Dark signal

Compensation level

date of observation

Test ti
