Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ROHS, ISO9001, CE, Other
Warranty:
1 Year
Application:
Industrial
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
20 days
Related Products
-
I-CHEQX GEN 2 Handheld XRFNegotiableMOQ: 1 Piece -
Spectrometer,alloy Analysis Detector, Analyzer, Ajike，i-CHEQNegotiableMOQ: 1 Perch
-
Portable Spark Direct Reading Spectrometer, Desktop Spark Direct Reading Spectrometer, CCD Detection, Multi-channel Spark Direct Reading Spectrometer, High-resolution Spark Direct Reading Spectrometer, Non-ferrous MetalsNegotiableMOQ: 1 Piece
-
Ore Spectrometer XRF Spectrometer Handheld Spectrometer Portable Spectrometer Mineral Spectrometer NIR Spectrometer Spectrometry Technology Ore AnalysisNegotiableMOQ: 1 Piece
-
Soil Spectrometer Soil Spectroscopy Portable Soil Spectrometer Hand - Held Soil Spectrometer Visible - Near Infrared (VIS - NIR) Soil Spectrometer Soil Nutrient Spectrometer Soil Organic Matter SpectrometerNegotiableMOQ: 1 Piece
Certification
ROHS, ISO9001, CE, Other
Warranty
1 Year
Application
Industrial
Advantage
High Sensitive
Wavelengths
Other
Dispersive Element
Other
Light Number
Other
Principle
Classic Spectrometer
Detection Method
Spectrograph
- 1-click startup and detection greatly simplify the operation process
- Intelligent EN and CH display, supports more languages upon request
- 5.5-inch hi-res capacitive touch screen, auto-adjusting brightness, ensuring clear display in any environment.
- Customizable automatic shutdown on idle- greatly extending battery life
- Intel quad-core processor, with 256GB SSD and 4GB LPDDR memory, ensures smooth operation of the system, powerful data processing capabilities
- Windows 10 provides a familiar and proven operating system

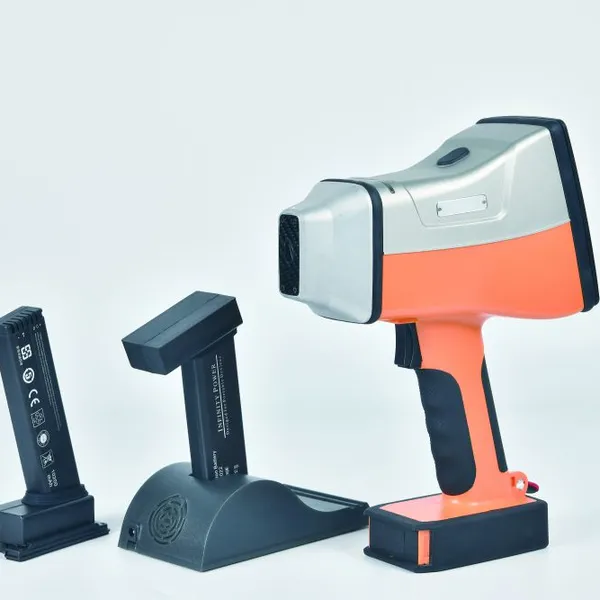

- Large-capacity swappable battery enough for the entire work day. Extra batteries already included.
- X-Ray radiation safe. User is protected by multiple safeguards.
- Lightweight aluminum alloy and nylon reinforced polymer construction, designed for rugged outdoor use
- IP54 dust and water resistance
- Can link to smartphone GPS for location tagging
- Wi-Fi connectivity
- i-CheqX cloud database support available for convenient centralized data storage
- Lifetime software update support

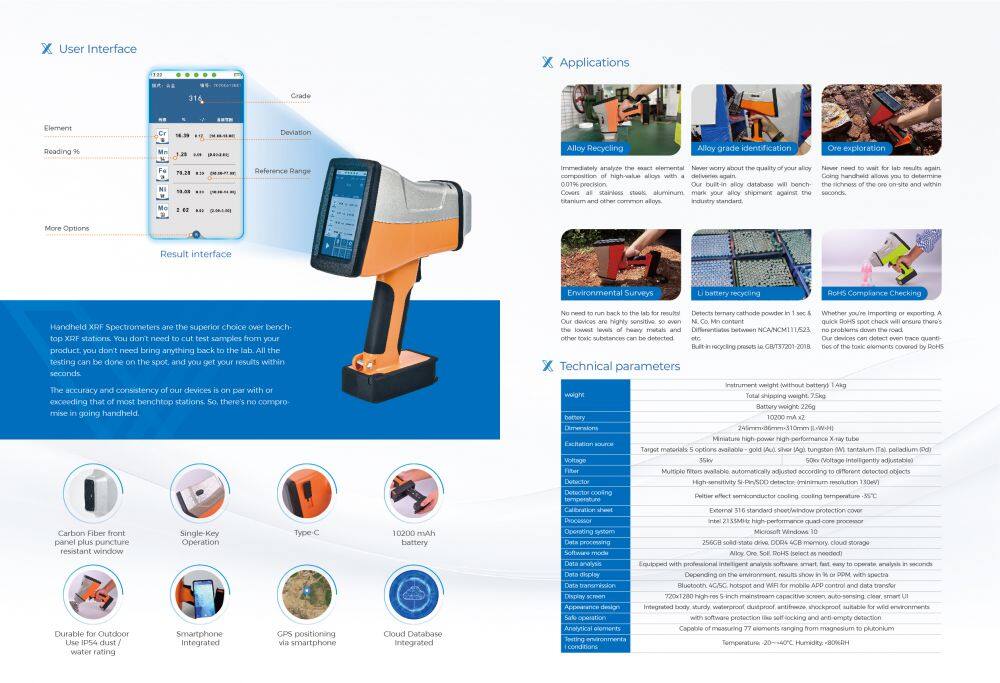

TECHNICAL SPECIFICATIONS
| SAXON Series Technical Specifications | ||||||
|---|---|---|---|---|---|---|
| Model Number | SAXON Series | S1 5000 | S2 5000 | S8 5000 | S8 7000 | S8 9000 |
| weight | Instrument weight (without battery): 1.4kg Total shipping weight: 7.5kg Battery weight: 226g | ◉ | ◉ | ◉ | ◉ | ◉ |
| battery | 10200 mA x2 | ◉ | ◉ | ◉ | ◉ | ◉ |
| Dimensions | 245mm×86mm×310mm (L×W×H) | ◉ | ◉ | ◉ | ◉ | ◉ |
| Excitation source | Miniature high-power high-performance X-ray tube | ◉ | ◉ | ◉ | ◉ | ◉ |
| Target materials | 5 options available – gold (Au), silver (Ag), tungsten (W), tantalum (Ta), palladium (Pd) | silver | silver | silver | silver | silver |
| Voltage | 35kv/50kv (Voltage intelligently adjustable) | 35kv | 35kv | 50kv (Voltage intelligently adjustable) | 50kv (Voltage intelligently adjustable) | 50kv (Voltage intelligently adjustable) |
| Filter | Multiple filters available, automatically adjusted according to different detected objects | ◎ | ◎ | ◎ | ◎ | ◎ |
| Detector | High-sensitivity Si-Pin/SDD detector; (minimum resolution 130eV) | Si-Pin | Si-Pin | SDD | SDD | SDD |
| Detector cooling temperature | Peltier effect semiconductor cooling, cooling temperature -35°C | ◉ | ◉ | ◉ | ◉ | ◉ |
| Calibration sheet | External 316 standard sheet/window protection cover | ◉ | ◉ | ◉ | ◉ | ◉ |
| Software mode | Alloy, Ore, Soil | Alloy | Alloy | Alloy | Ore | Soil |
| Analytical elements | Capable of measuring 77 elements ranging from magnesium to plutonium | Ti、V、Cr、Mn、Fe、Co、Ni、Cu、As、Zn、Hf、Ta、W、Hg、Se、Au、Br、Pb、Bi、Zr、Nb、Mo、Ag、Cd、Sn、Sb、Re、Ir、Pt、Ru、Rh、Pd | Ti、V、Cr、Mn、Fe、Co、Ni、Cu、As、Zn、Hf、Ta、W、Hg、Se、Au、Br、Pb、Bi、Zr、Nb、Mo、Ag、Cd、Sn、Sb、Re、Ir、Pt、Ru、Rh、Pd | Mg、Al、Si、P、S、Ti、V、Cr、Mn、Fe、Co、Ni、Cu、As、Zn、Hf、Ta、W、Hg、Se、Au、Br、Pb、Bi、Zr、Nb、Mo、Ag、Cd、Sn、Sb、Re、Ir、Pt、Ru、Rh、Pd | Mg、Al、Si、P、S、Ti、V、Cr、Mn、Fe、Co、Ni、Cu、As、Zn、Hf、Ta、W、Hg、Se、Au、Br、Pb、Bi、Zr、Nb、Mo、Ag、Cd、Sn、Sb、Re、Ir、Pt、Ru、Rh、Pd | Cd、Cr、Ni、Hg、Pb、Cu、Zn、As |
| Testing environmental conditions | Temperature: -20～+40℃, Humidity: <80%RH | ◉ | ◉ | ◉ | ◉ | ◉ |
Legend:
◉ = Standard Feature | ◎ = None | Specific values indicate model-specific specifications
◉ = Standard Feature | ◎ = None | Specific values indicate model-specific specifications
