Home > Instruments & Meters > Optical Lens & Instrument > Spectrometer > 752 UV-VIS SPECTROPHOTOMETER

752 UV-VIS SPECTROPHOTOMETER

752 UV-VIS SPECTROPHOTOMETER photo-1
US$ 1,000 - 1,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Model Number:
752
Size:
460*380*220mm
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Model Number 752
Size 460*380*220mm
Weight 18kg
Focal Length Bandwidth 4nm
Wavelength Range 200-1000nm
Measurement Range 190-1100nm
Product Description

752 UV/VIS SPECTROPHOTOMETER

specification:

Spectral Bandwidth:4nm

Wavelength Range:2001000nm
Wavelength Accuracy:±2.0nm(Calibrate by system automatically )
Wavelength Repeatability:1nm
Photometric Range:T-1.0200.0%T,A-0.53.000Abs,F09999,C09999
Photometric Accuracy:±0.5%T
Photometric Repeatability:±0.2%T
Stray Light:≤0.5%T(220nm/340nm
Display Mode:±0.003A/h
Spectral Bandwidth:128×64 LCD

FEATURES:

1,Wavelength setting by keyboard-input.
2,Single-point curve calibration and multi-point curve calibration ( Up to 12 points).
3,Curve fitting degree setting and concentration readout directly with up to 50 sets of curve parameter and testing data stored
4,System clock management, dark current and wavelength calibration.

Technical parameter
Optical system
C-T type single beam,1200lines/mm grating
Detector
Silicon photo diode
Monitor
128×64 LCD
Light source
Tungsten lamp20W/12V,deuterium lamp,converts automaticly at 340nm
Spectral bandwidth
4nm
Wavelength range
200~1000nm(step interval 0.1nm)
Wavelength accuracy
±2.0nm(auto calibration when starting)
Wavelength repeatability
≤1.0nm
Stray light
≤0.5%T(at 220、360nm)
Photometric range
T:-1.0~200.0%T ,A:-0.5~3.000Abs,F:0~9999,C:0~9999
Photometric accuracy
±0.5%T(0~100%T)
Photometric repeatability
≤0.2%T
Current
Dark current<0.2%T 、bright current<0.5%T
Data output
USB port,LPT printer port
Power
220V±10% 50Hz ± 1Hz,70W
Dimension
456×375×220 mm
Net weight
17.5kg

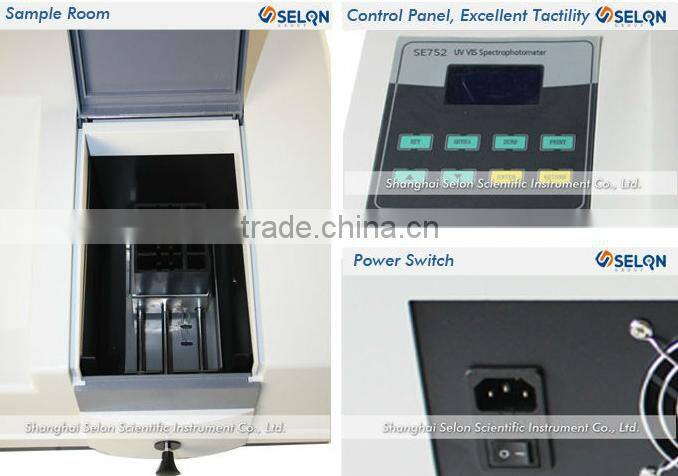

Detailed Images
Packing & Delivery

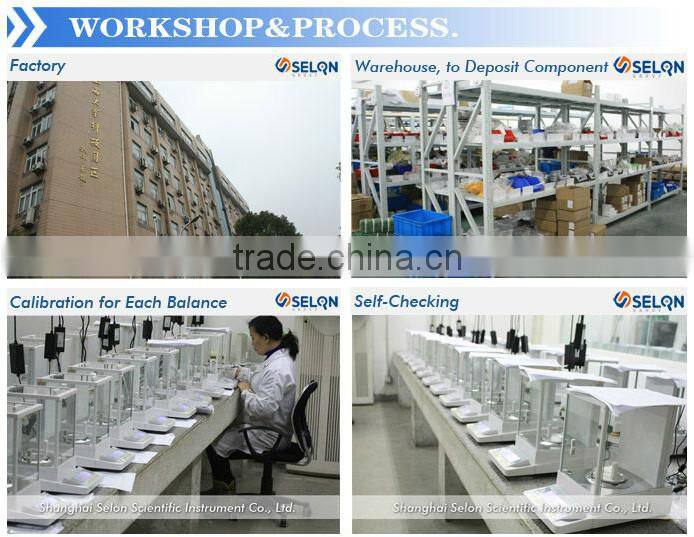

Company information:

SELON SCIENCE was established in 2006, and had one headquarter in Shanghai with two offices in Ho Chi Minh and Jakarta. Our company offers lab equipments and laboratory solutions as well as clean room system that meet the GMP standard, always assuringcustomers' highest quality demands.
