Help CenterJD194-BS4P-Y Three-phase Four-wire AC Active Power Transducer With Analog Output
Related Products
-
JD194-BS4P Three Phase Three Wire AC RS485 Active Power Watt TransducerNegotiableMOQ: 1 -
JD194-BS4I AC Single Phase Electrical Measuring CT Current TransducerNegotiableMOQ: 1
-
JD194-BS4F7 Electrical Single Phase ac Frequency TransducerNegotiableMOQ: 1
-
Elecnova JD194-BS4Q RS485 Electrical AC 3 Phase 3 Wire Reactive Power Transducer SensorsNegotiableMOQ: 1
-
JD194-BS4U Electrical Measuring Single Phase ac Voltage Transducer With Analog OutputNegotiableMOQ: 1
active power transducer

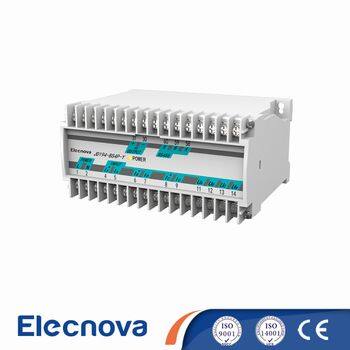

1. Product display
2.Product introduction
BS series measuring transmitters are a kind of device to convert the measured parameters such as current, voltage, power, frequency and power factor to DC current, DC voltage and isolate the output analog signal or digital signals. The transmitters accord with the national standard GB/T 13850 – 1998.
This series digital display AC voltage meters have high environment adaptability because their working temperature range is -40~70℃ and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.
3.Technical specification
|
Input |
Rated value |
Current |
1A, 5A |
|
|
|
Voltage |
100V,220V,380V |
|
|
Overload |
Continuous |
1.2In,1.2Un |
|
|
|
Instantaneous |
10In/5s,2Un/1min |
|
|
Absorption power (each phase) |
Current |
≤0.2VA |
|
|
|
Voltage |
≤0.2VA |
|
|
Frequency |
45~65Hz |
|
|
Output |
Rated value |
0-5V,0-10V,0-5mA,0-20mA,4-20mA (select one)) |
|
|
|
Load capacity |
Current output load≤ 510Ω, Voltage output load≥20k |
|
|
|
Output ripple |
≤ 2 times of basic error |
|
|
|
Accuracy |
0.5 |
|
|
Power supply |
Working range |
AC/DC 80~270V ,DC19~50V |
|
|
|
Power consumption |
≤5VA |
|
|
Response time |
≤400ms |
||
4.Similar products
Reactive power transducer Current transducer Voltage transducer
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples ? Is it free or extra ?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment ?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
