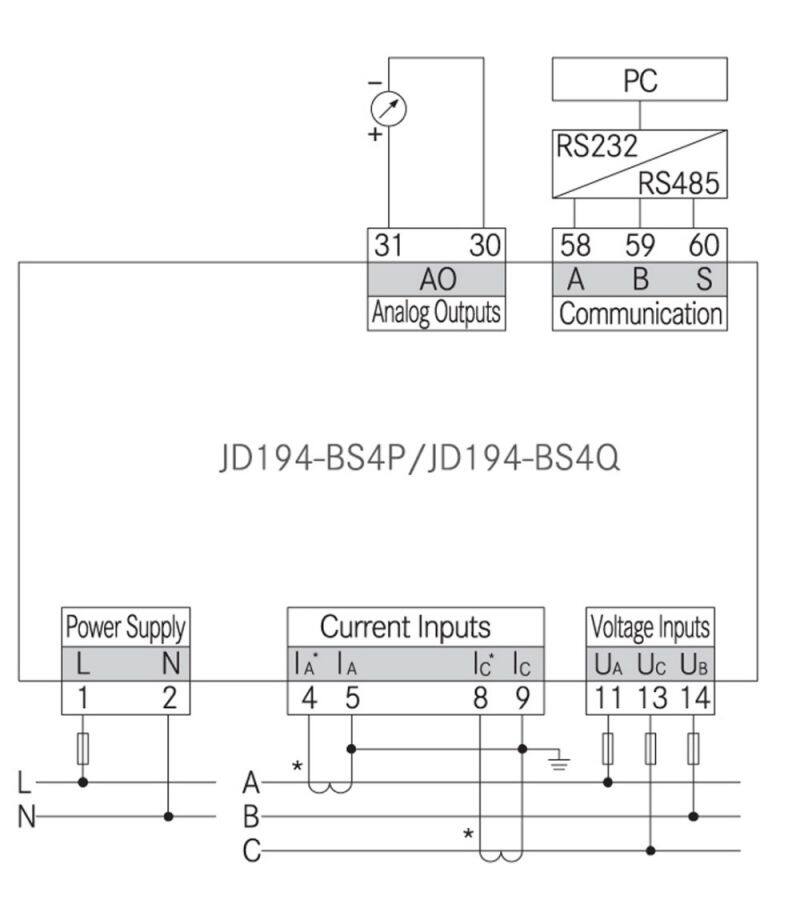

JD194-BS4P Three Phase Three Wire AC RS485 Active Power Watt Transducer
- T/T Credit Card
You May Like
-
JD194-BS4I AC Single Phase Electrical Measuring CT Current Transducer
-
JD194-BS4F7 Electrical Single Phase ac Frequency Transducer
-
Elecnova JD194-BS4Q RS485 Electrical AC 3 Phase 3 Wire Reactive Power Transducer Sensors
-
JD194-BS4U Electrical Measuring Single Phase ac Voltage Transducer With Analog Output
-
SFERE JD194-BS4I3T Electrical Three 3 Phase AC Analog Output Current Transducer
-
JD194-BS4P-Y Electrical Measuring Three Phase Four Wire ac Active Power Transducer
Product Description
active power transducer
1.Product display
2.Product introduction
BS series measuring transmitters are a kind of device to convert the measured parameters such as current, voltage, power, frequency and power factor to DC current, DC voltage and isolate the output analog signal or digital signals. The transmitters accord with the national standard GB/T 13850 – 1998.
This series digital display AC voltage meters have high environment adaptability because their working temperature range is -40~70℃ and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.
3.Technical specification
Input | Rated value | Current | 1A, 5A |
|
| Voltage | 100V,220V,380V |
| Overload | Continuous | 1.2In,1.2Un |
|
| Instantaneous | 10In/5s,2Un/1min |
| Absorption power (each phase) | Current | ≤0.2VA |
|
| Voltage | ≤0.2VA |
| Frequency | 45~65Hz | |
Output | Rated value | 0-5V,0-10V,0-5mA,0-20mA,4-20mA (select one)) | |
| Load capacity | Current output load≤ 510Ω, Voltage output load≥20k | |
| Output ripple | ≤ 2 times of basic error | |
| Accuracy | 0.5 | |
Power supply | Working range | AC/DC 80~270V ,DC19~50V | |
| Power consumption | ≤5VA | |
Response time | ≤400ms | ||
