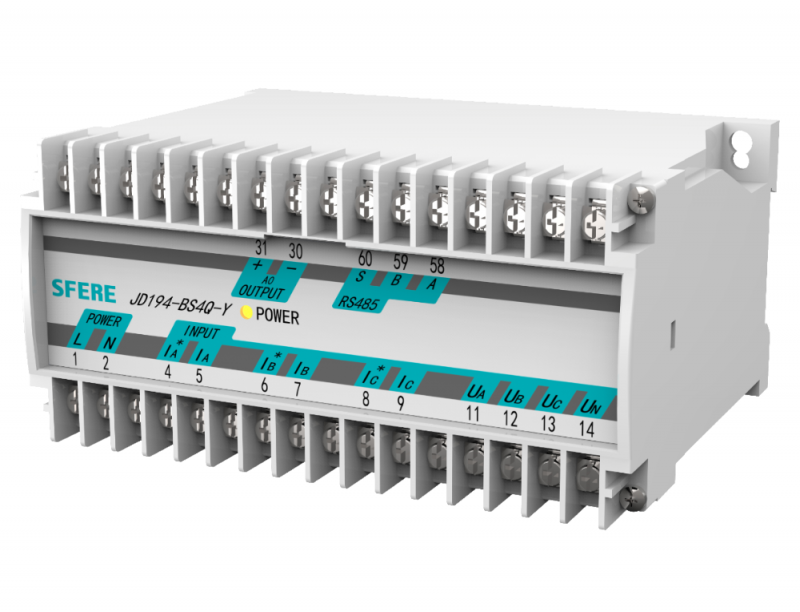

Elecnova JD194-BS4Q RS485 Electrical AC 3 Phase 3 Wire Reactive Power Transducer Sensors

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

JD194-BS4Q are a kind of device to convert the measured parameters such as current, voltage, power, frequency and power factor to DC current, DC voltage and isolate the output analog signal or digital signals. The transmitters accord with the national standard GB/T 13850 – 1998.

Advantage

*Wide range of working temperature range (-40~70℃ )
*EMC better than III level
*Small size and din-rail mounted
*High accuracy(0.5, 0.2)

*RS485 communication interface, Modbus-RTU protocol

Product name	Elecnova JD194-BS4Q RS485 electrical AC 3 phase 3 wire reactive power transducer sensors
Wiring	3P3W
Accuracy	0.2, 0.5(defaulted)
Rated current value	1A, 5A
Overload	Continuous:1.2In, Instantaneous:10In/5s
Rated voltage value	100V,220V,380V
Overload	Continuous:1.2In, Instantaneous:2Un/1min
Transmitting output	0-10V/4-12-20mA/4-20mA
Max. output	12V/24mA
Frequency	45~65Hz
Power supply working range	AC/DC 80~270V ,DC19~50V
Power consumption	≤5VA
Response time	≤400ms

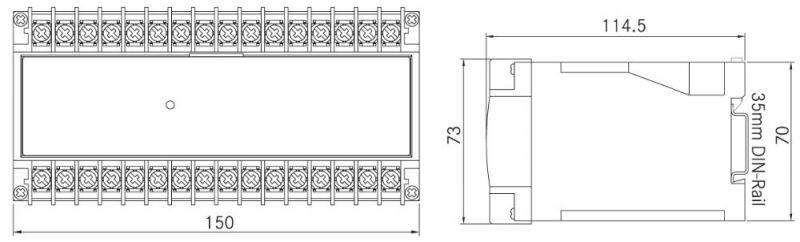

Size

Technical Parameter

Feature/Model			JD194–BS4I3T	JD194–BS4U3T
Input	Rated value		1A, 5A	100V,220V,380V
	Overload	Continuous	1.2In	1.2Un
		Instantaneous	10In/5s	2Un/1min
	Absorption power (each phase)		≤0.2VA	≤0.5VA
	Frequency		45~65Hz
Output	Rated value		0-5V,0-10V,0-5mA,0-20mA,4-20mA (select one)
	Load capacity		Current output load≤ 510Ω, Voltage output load≥20k
	Output ripple		≤ 2 times of basic error
	Accuracy		0.5
Power supply	Working range		AC/DC 80~270V ,DC19~50V
	Power consumption		≤5VA
Response time			≤400ms

Production Process

SMT

AOI Test

Plug-In Mounting

Wave Soldering

Assembling

Inspection

Packing & Delivery

Delivery and Shipment

Delivery time: 5-7days after sales confirmation
Transportation: By Air or by Sea
Port of laoding: Shanghai port, or Any port of China
Product guaranty: 2 years

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory located in Jiangyin City, Jiangsu province.

Q: How long is your delivery time?

A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.

Q: Do you provide samples ? is it free or extra ?

A: Free sample is available, freight collect.

Q: What is your terms of payment ?

A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
