JD194-BS4I electrical 1 phase AC current transducer RS485 CT 0-10V

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

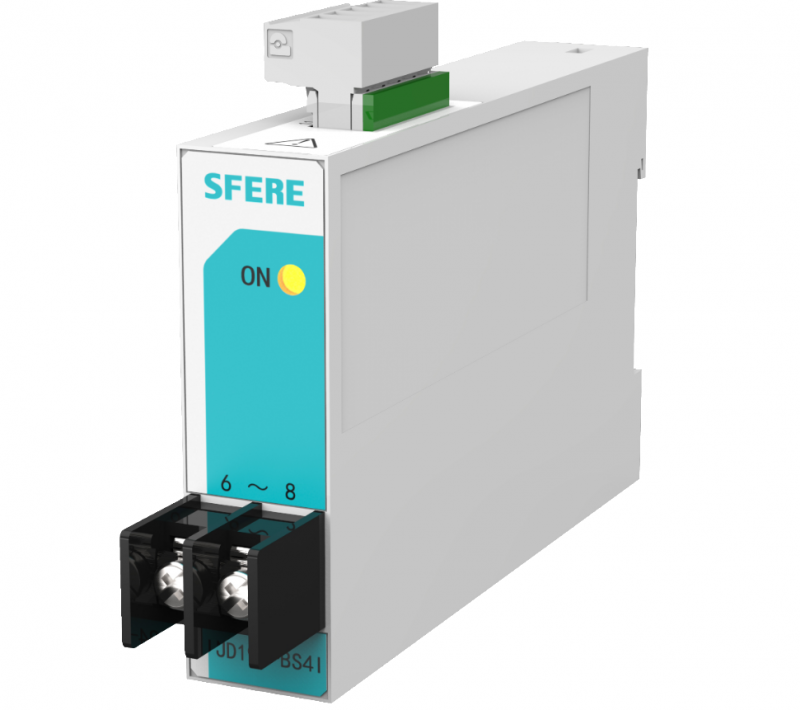

Product Name:JD194-BS4I AC single phase electrical measuring AC CT current transducer

JD194-BS4I is a kind of device to convert the measured parameters such as current, voltage, power, frequency and power factor to DC current, DC voltage and isolate the output analog signal or digital signals. The transmitters accord with the national standard GB/T 13850 – 1998.
This series digital display AC voltage meters have high environment adaptability because their working temperature range is -40~70℃ and EMC better than III level. They can be applied in control systems, distribution automation systems, industrial automation systems and intelligent buildings.

Wiring Instruction

1. Current input: make sure that input current is not larger than rated current, otherwise, please connect CT to meter. For user's convenience, please adopt wiring terminal row.
2. The actual wiring method should be the same with the inner wiring method of the meter.
3. Power supply: AC/DC (80~270)V. User can choose fuse with max. rated current 0.25A.

Technical Parameter

Feature/Model			JD194–BS4I3T	JD194–BS4U3T
Input	Rated value		1A, 5A	100V,220V,380V
	Overload	Continuous	1.2In	1.2Un
		Instantaneous	10In/5s	2Un/1min
	Absorption power (each phase)		≤0.2VA	≤0.5VA
	Frequency		45~65Hz
Output	Rated value		0-5V,0-10V,0-5mA,0-20mA,4-20mA (select one)
	Load capacity		Current output load≤ 510Ω, Voltage output load≥20k
	Output ripple		≤ 2 times of basic error
	Accuracy		0.5
Power supply	Working range		AC/DC 80~270V ,DC19~50V
	Power consumption		≤5VA
Response time			≤400ms

Production Process

SMT

AOI Test

Plug-In Mounting

Wave Soldering

Assembling

Inspection

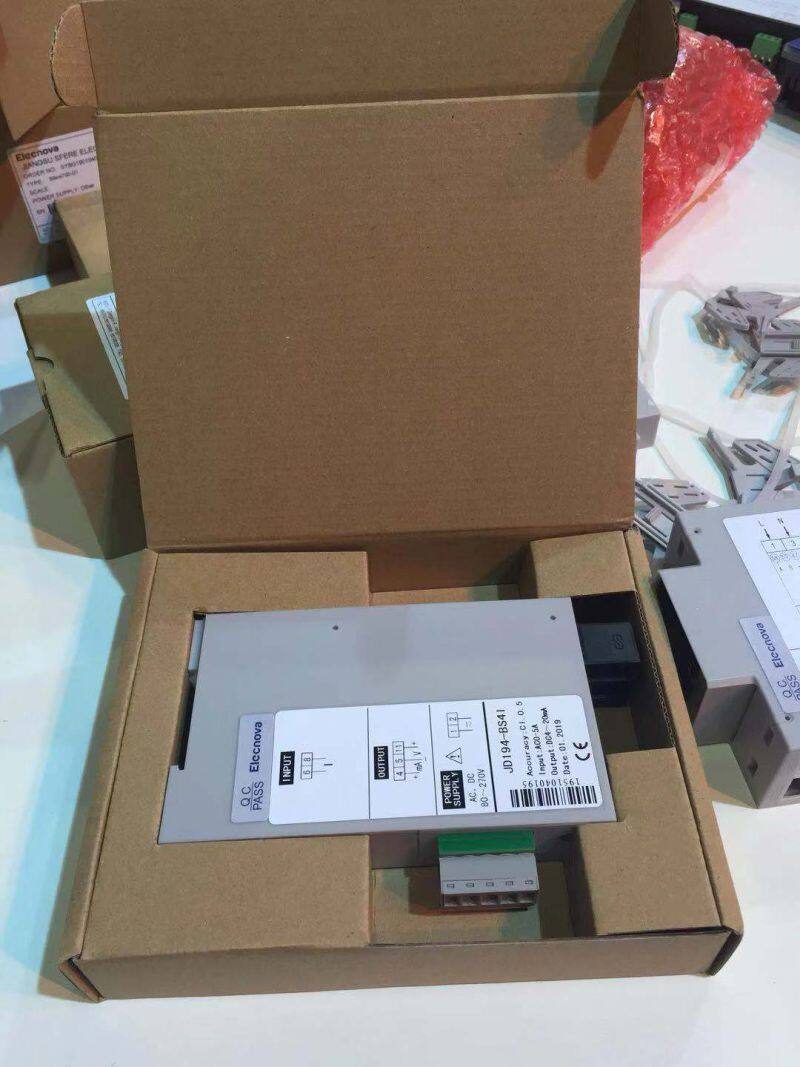

Packing & Delivery

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory located in Jiangyin City, Jiangsu province.

Q: How long is your delivery time?

A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 7-10working days after confirmation.

Q: Do you provide samples ? is it free or extra ?

A: Free sample is available, freight collect.

Q: What is your terms of payment ?

A: Payment<=3000USD,we prefer the transaction via Alibaba Trade Assurance, 100% before delivery, order amount more than 3000USD, 30% T/T in advance ,balance before shippment.
