0.25W DC/DC Converters LOW Power Supply

Summary Description:
" Isolated SMD DC/DC Converters  power supply

 SMD DC/DC Converters

Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required. these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines.

Part Number Nominal Input Voltage Output Voltage

V V

TPAT0303-W2 3.3 ±3.3

TPAT0305-W2 3.3 ±5

TPAT0309-W2 3.3 ±9

TPAT0312-W2 3.3 ±12

TPAT0315-W2 3.3 ±15

TPAT0503-W2 5 ±3.3

TPAT0505-W2 5 ±5

TPAT0509-W2 5 ±9

TPAT0512-W2 5 ±12

TPAT0515-W2 5 ±15

TPAT1203-W2 12 ±3.3

TPAT1205-W2 12 ±5

TPAT1209-W2 12 ±9

TPAT1212-W2 12 ±12

TPAT1215-W2 12 ±15

TPAT1515-W2 15 ±15

Basic Terms:
1 Type    TPAT-W2 Series
2 Efficiency    up to 80%
3 Power density    1.8W/cm3

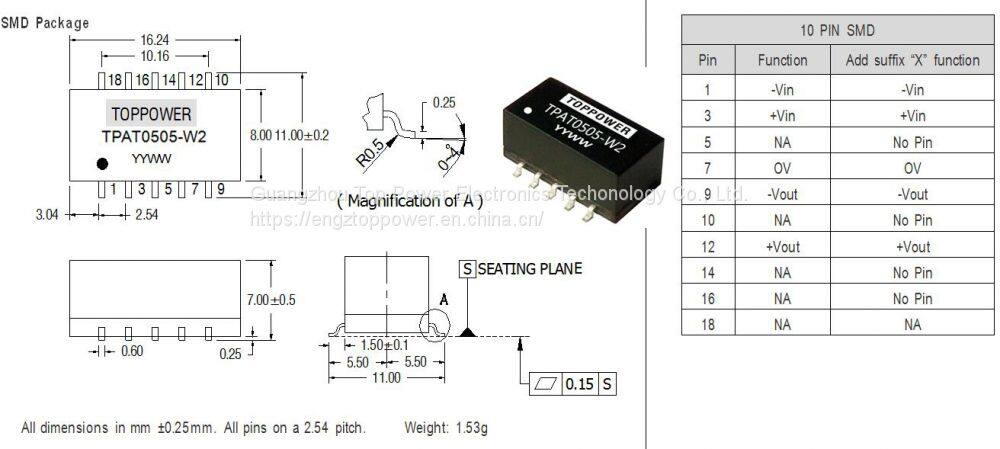

4 Pinout    Footprint over pins
5 Related certificate    RoHS compliant
6 Wide temperature    at full 1 Watt load, -40° C to 105° C
7 Package material    UL 94V-0 package material
8 Input voltage     3.3V, 5V & 12V Input
9 Output voltage    3.3V, 5V, 9V, 12V & 15V output
10 MOQ    1 pc (no ltimited for considered the long coorperation relations)
11 Terms of payment    Western Union,T/T
12 Terms of delivery    DHL / UPS / EMS / TNT
13 Delivery time    7-12 working days
