10W Isolated DC/DC Converters 9-36Vin POWER SUPPLY

10W Isolated DC/DC Converters 9-36Vin POWER SUPPLY thumbnail-1
10W Isolated DC/DC Converters 9-36Vin POWER SUPPLY thumbnail-2
10W Isolated DC/DC Converters 9-36Vin POWER SUPPLY photo-1
10W Isolated DC/DC Converters 9-36Vin POWER SUPPLY photo-2
US$ 0.18 ≥666666667777777900 Pieces
Key Specifications
Get Latest Price
Brand Name:
TOPPOWER
Place of Origin:
China
Model Number:
TP10DC
Contact Supplier Request Quote Chat Now
Guangzhou Top Power Electronics Techonology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
gunagzhou
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TOPPOWER
Place of Origin China
Model Number TP10DC
Output Power 1 - 50W
Output Type Single
Output Current ma
Output Frequency hz
Output Voltage vdc
Input Voltage Other, 3.3-15V

 Isolated  DC/DC Converters 18-36Vin 3.3Vout

10W 1.5KVDC Wide Input Voltage DC/DC Converters

The rated output power of TP10DC converters is 10W,the outline dimensions is "50.8*25.4*11.75", 2:1 and 4:1 wide input voltage range, the voltage range is 9V-18V,18V-36V,36V-72V,9V-36V and 18V-72VDC.The accuracy of the converter can reach ±1%,it can be widely used in telecommunications, railway transportation, instrument and etc.

10W output power 2:1&4:1 input voltage rangeOver load protection

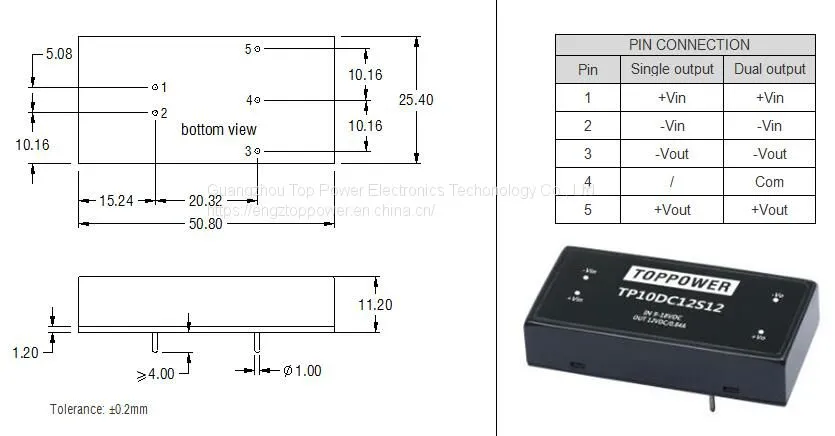

50.8mm*25.4mm*11.2mm standard package

Fixed switching frequency Over voltage protection


Metal shielding package

RoHS compliant Operating temperature: -40℃to 85ºC


SELECTION GUIDE

Part Number Input Voltage Output Efficiency(Typ)% Maximum Capacitive Load


（u F)

voltage（VDC) Voltage（VDC) Current（A）
Rated Range values
TP10DC12S03 12(2:1) 9-18 3.3 2 ≥75 6800
TP10DC12S05 12(2:1) 9-18 5 2 ≥77 4700
TP10DC12S12 12(2:1) 9-18 12 0.84 ≥80 690
TP10DC12S15 12(2:1) 9-18 15 0.66 ≥82 470
TP10DC12D05 12(2:1) 9-18 ±5 ±1 ≥77 ±680
TP10DC12D12 12(2:1) 9-18 ±12 ±0.42 ≥79 ±330
TP10DC12D15 12(2:1) 9-18 ±15 ±0.33 ≥80 ±110
TP10DC24S03 24(2:1) 18-36 3.3 2 ≥76 6800
TP10DC24S05 24(2:1) 18-36 5 2 ≥79 4700
TP10DC24S12 24(2:1) 18-36 12 0.84 ≥81 690
TP10DC24S15 24(2:1) 18-36 15 0.66 ≥83 470
TP10DC24D05 24(2:1) 18-36 ±5 ±1 ≥80 ±680
TP10DC24D12 24(2:1) 18-36 ±12 ±0.42 ≥80 ±330
TP10DC24D15 24(2:1) 18-36 ±15 ±0.33 ≥83 ±110
TP10DC48S03 48(2:1) 36-72 3.3 2 ≥78 6800
TP10DC48S05 48(2:1) 36-72 5 2 ≥81 4700
TP10DC48S12 48(2:1) 36-72 12 0.84 ≥82 690
TP10DC48S15 48(2:1) 36-72 15 0.66 ≥83 470
TP10DC48D05 48(2:1) 36-72 ±5 ±1 ≥81 ±680
TP10DC48D12 48(2:1) 36-72 ±12 ±0.42 ≥82 ±330
TP10DC48D15 48(2:1) 36-72 ±15 ±0.33 ≥83 ±110
TP10DC24S05W 24(4:1) 9-36 5 2 ≥78 4700
TP10DC24S12W 24(4:1) 9-36 12 0.84 ≥80 690
TP10DC24S15W 24(4:1) 9-36 15 0.66 ≥82 470
TP10DC24D05W 24(4:1) 9-36 ±5 ±1 ≥79 ±680
TP10DC24D12W 24(4:1) 9-36 ±12 ±0.42 ≥79 ±330
TP10DC24D15W 24(4:1) 9-36 ±15 ±0.33 ≥82 ±110
TP10DC48S05W 48(4:1) 18-72 5 2 ≥80 4700
TP10DC48S12W 48(4:1) 18-72 12 0.84 ≥81 690
TP10DC48S15W 48(4:1) 18-72 15 0.66 ≥82 470
TP10DC48D05W 48(4:1) 18-72 ±5 ±1 ≥79 ±680
TP10DC48D12W 48(4:1) 18-72 ±12 ±0.42 ≥80 ±330
TP10DC48D15W 48(4:1) 18-72 ±15 ±0.33 ≥81 ±110
TP10DC24D07 24(2:1) 18-36 ±7.1 ±0.69 ≥80 ±680
TP10DC12S24 12(2:1) 9-18 24 0.41 ≥79 660

Product Tags: DC/DC converters , DC-DC converters , isolation power supply
