Summary Description:

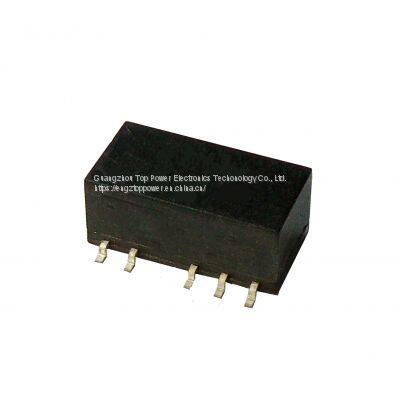

"2W Isolated Single Output SMD DC/DC Converters
Miniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required. these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines.
FEATURES | ||
RoHS compliant、CE certification | Efficiency up to 80% | Operating temperature：-40℃to 105℃ |
Input voltage：3.3V,5V,12V | Plastic encapsulated | |
Dual isolated output | Output voltage：±5V,±9V,±12V,±15V / 3.3V,5V,9V,12V,15V | Power density 1.37W/cm3 |
3KVDC isolation (1 minute) | Custom solutions available | / |
SELECTION GUIDE | ||||
Part Number | Nominal Input Voltage | Output Voltage | Output Current (Max./Min) | Efficiency |
V | V | m A | % | |
TPVT0503-2W | 5 | ±3.3 | ±303/±30.3 | 70
|
TPVT0505-2W | 5 | ±5 | ±200/±20
| 70
|
TPVT0509-2W | 5 | ±9 | ±111±/11.1
| 72
|
TPVT0512-2W | 5 | ±12 | ±83/±8.3
| 75
|
TPVT0515-2W | 5 | ±15 | ±67/±6.7
| 80
|
TPVT1205-2W | 12 | ±5 | ±200/±20
| 70
|
TPVT1209-2W | 12 | ±9 | ±111±/11.1
| 72
|
TPVT1212-2W | 12 | ±12 | ±83/±8.3
| 75
|
TPVT1215-2W | 12 | ±15 | ±67/±6.7
| 80
|
TPVT0303A-2W | 3.3 | 3.3 | 606/60.6 | 70 |
TPVT0305A-2W | 3.3 | 5 | 400/40
| 70 |
TPVT0505A-2W | 5 | 5 | 400/40
| 70
|
TPVT0509A-2W | 5 | 9 | 222/22.2
| 72
|
TPVT0512A-2W | 5 | 12 | 167/16.7
| 75
|
TPVT0515A-2W | 5 | 15 | 133/13.3
| 80
|
TPVT1203A-2W | 12 | 3.3 | 606/60.6 | 70 |
TPVT1205A-2W | 12 | 5 | 400/40
| 70
|
TPVT1209A-2W | 12 | 9 | 222/22.2
| 72
|
TPVT1212A-2W | 12 | 12 | 167/16.7
| 75
|
TPVT1215A-2W | 12 | 15 | 133/13.3
| 80
|
Add suffix “P” for continuous short circuit protection, for example TPVT0505P-2W. | ||||
