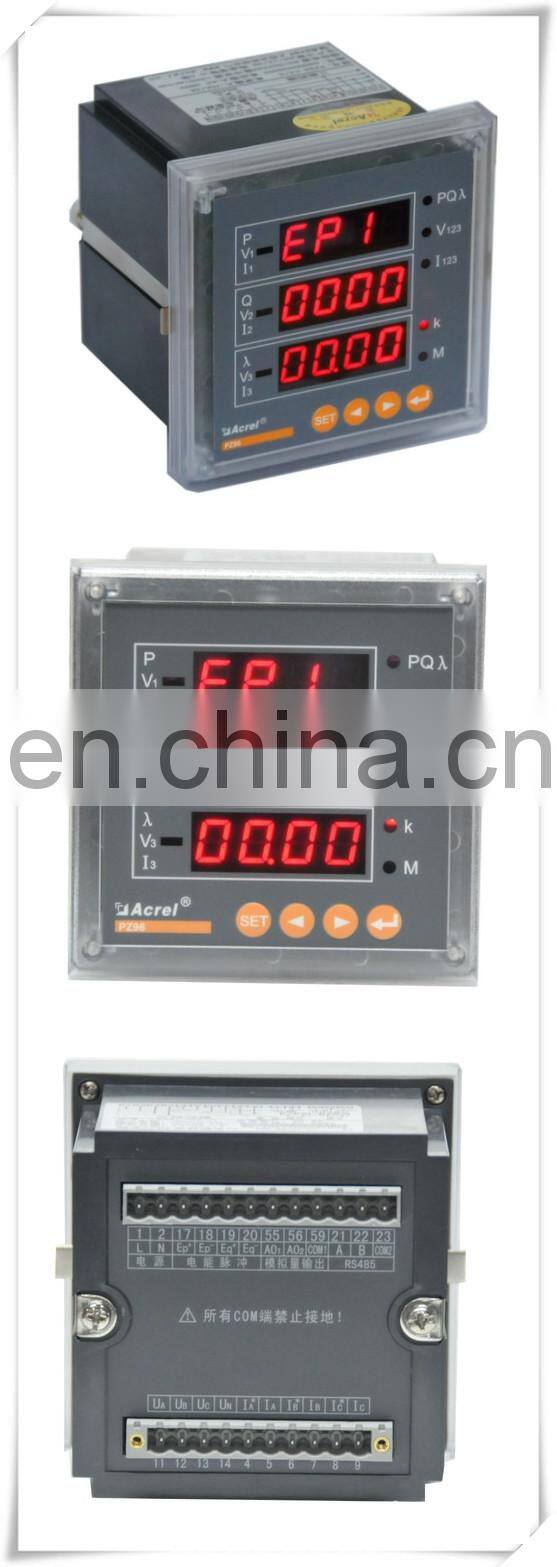

PZ80-E4 LED Display Digital Energy Meter AC Smart Power Analyzer
- T/T Credit Card
You May Like
-
PZ80-E4/C Acrel LED Display Digital AC Energy Meter With RS485
-
Three-phase DIN Rail Multifunction 7 Moudules KWh Energy Meter With RS485 ADL3000-E/C
-
Smart Three-phase DIN Rail Prepaid Energy Meter ADL300-EY
-
Three-phase DIN Rail Multifunction 7 Moudules KWh Energy Meter
-
Smart Three-phase Electric Network Power Meter APM800
-
ACREL APM800 Three Phase Smart Power Quality Energy Analyser Meter High Accuracy Class 0.5S With RS485 Modbus
Product Description

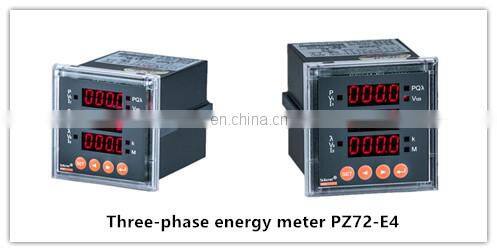

Three phase PZ series AC electric energy meter
PZ Series electric energy meters, adopting AC sampling technology, can measure many single phase or three phase grid electrical parameters such as current, voltage, power, electric energy etc. directly or indirectly. It can be used for local display, and also can be connected with the control equipment to form measuring and controlling system.
Fitted with RS-485 communication port, adopting compatible Modbus-RTU protocol, meters can switch electric parameter signal into standard analog output, with four-channel (two-channel) switching input / two-channel switching output. Based on different requirements, by keys on the faceplate, electric parameters for transformation ratio, alarm, communication etc. can be set up and controlled.

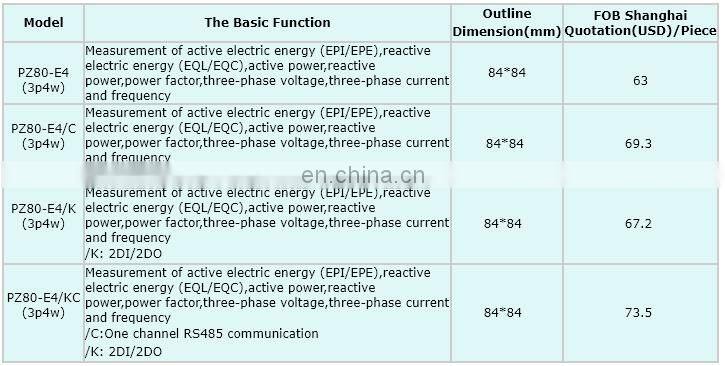

Product Specification
Technical Feature
| Technical Parameters | Value | ||
| Input | Network | 3phase-4wire | |
| Frequency | 45Hz~65Hz | ||
| Voltage | Rating | AC 100V,400V | |
| Overload | 1.2 times(continuous),2 times/1s; | ||
| Power Consumption | <0.5VA | ||
| Current | Rating | AC 1A,5A | |
| Overload | Current:1.2 times(continuous),10 times/s | ||
| Power Consumption | <0.5VA | ||
| Accuracy | Current,Voltage: 0.2 class ; power,active electric energy: 0.5 class; frequercy: 0.01Hz; reactive electric energy:1 class | ||
| Function | Switching
| input | 2 channels or 4 channels passive dry contact input mode |
| ouput | 2 channels relay NO contact outputcontact capacity :AC 250V/3A DC 30V/3A | ||
| Analog output | output mode | 1 or 2 channels,0~20mA,4~20mA,programmable(Specified by the uesr) | |
| load capacity | ≤500Ω | ||
| Power Supply | Voltage range | AC85~265V or DC100-350V | |
| Power consumption | <5VA | ||
| Output | Electric energy pulse | Output mode | open-collector photocoupler pulse |
| pulse constant | can be set | ||
| Communication | RS485 | ||
| Display | LED | ||
| Environment | Temperature | Operation: -10~+55℃(LED display) -10~+45℃(LCD display) Storage: -20~+70℃ | |
| Relative Humidity | 5%~95% non-condensing | ||
| Altitude | ≤2500m | ||
Outline and Size of Cut Out:
| Model | Pannel size | Housing size | Cutout size | ||||
| Height | width | Height | Width | Depth | Width | Height | |
| PZ80-E4 | 84 | 84 | 75 | 75 | 98 | 76 | 76 |

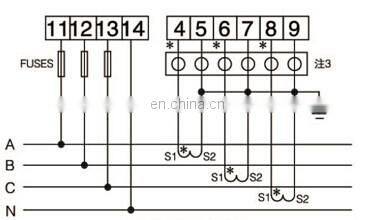

Installation:
