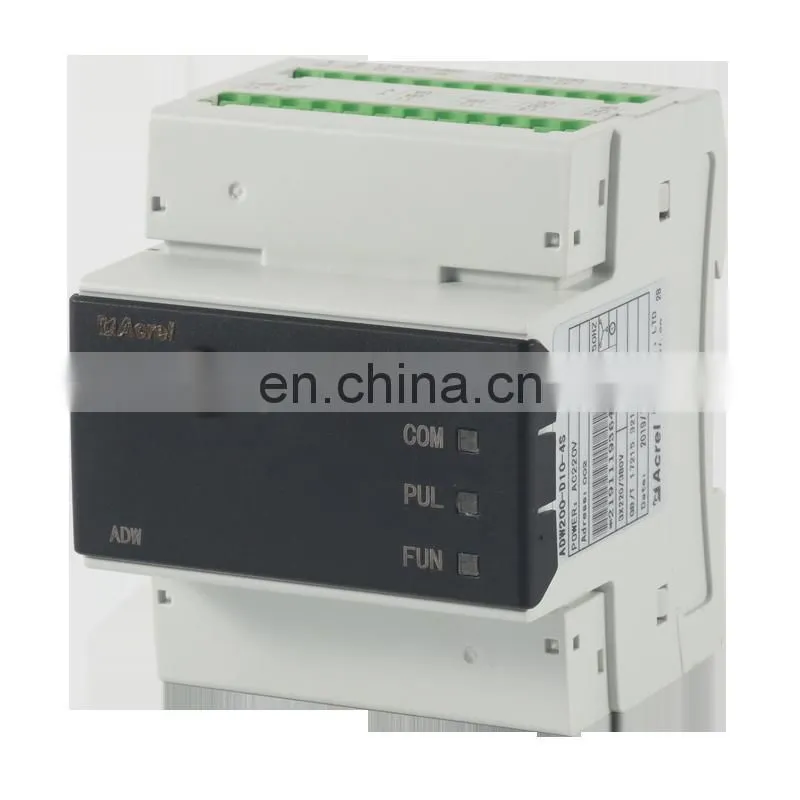

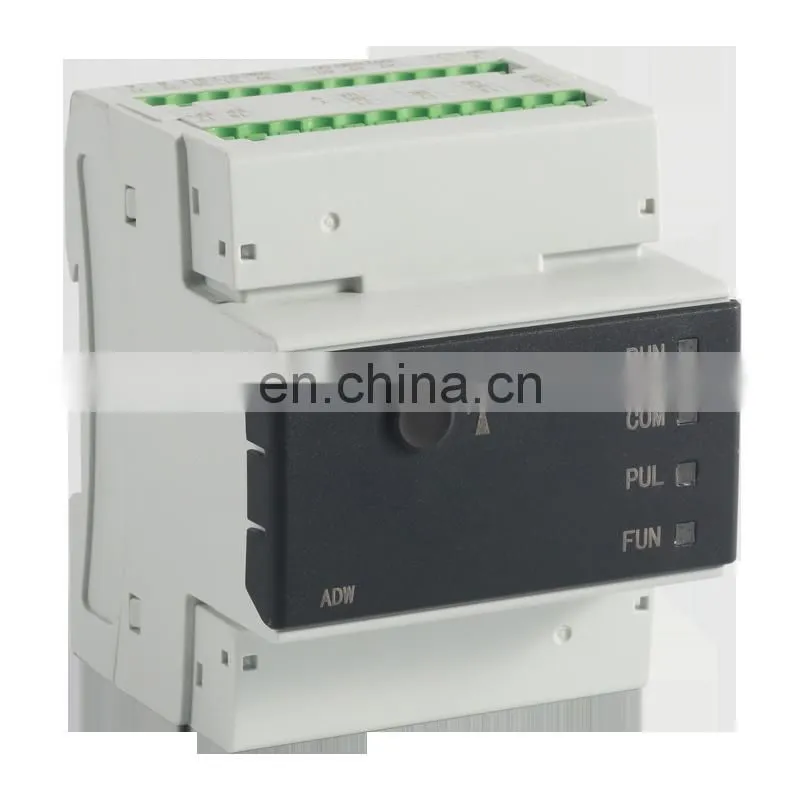

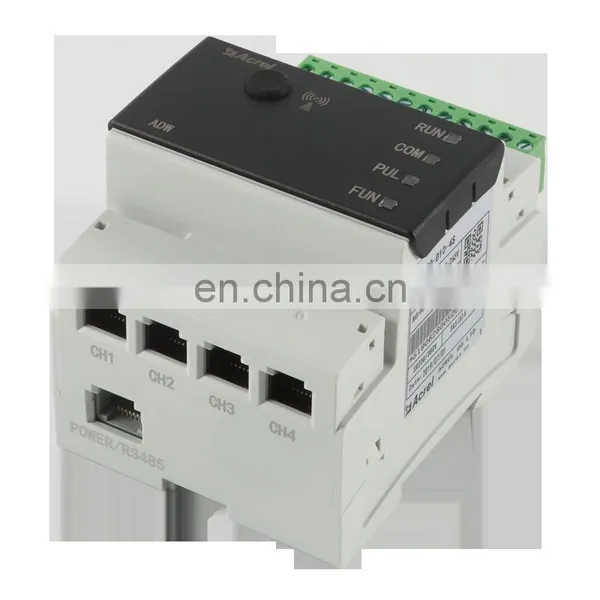

ADW200 Series Multi-Loop Power Meter
|
|

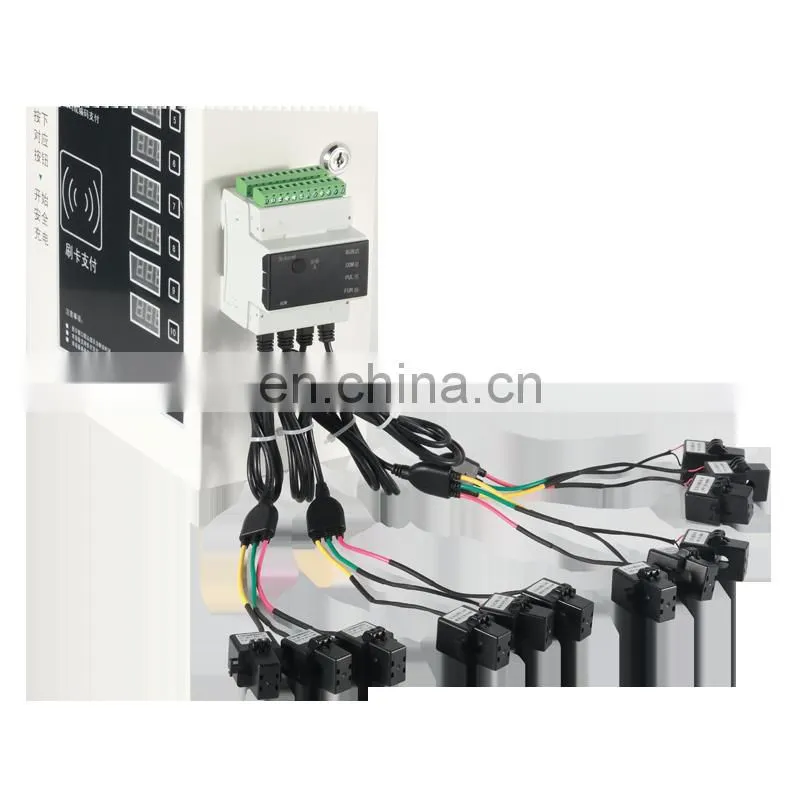

ADW200 series multi-loop power meter is mainly used for the measurement of all electric parameters of three-phase circuit. Colleagues can select the current input of the maximum four circuits.
|
| Information | parameter | Company profile | Certificate |
Characteristic
* Rated U and I: 3×220/380V,3×380V, 3×57.7/100V,3*1(6)A,3×100V
* Communication: RS485 (Modbus-RTU)
| Option Functions |
* NTL : 12 external NTC temperature measurement + 4 residual current measurement
* MK : 12 switching input + 4 switching output
* 1S : 1 channel
* 2S : 2 channels
* 3S : 3 channels
* 4S : 4 channels

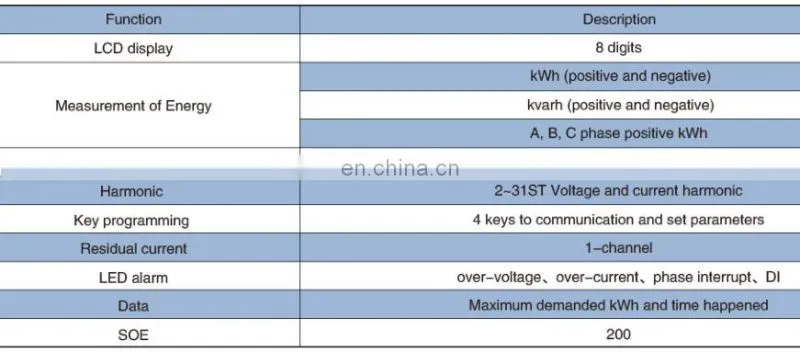

Function
|
Accuracy Active energy: Class 1 Reactive energy: Class 2 Frequency 50/60HZ(Optional),range: 45~65HZ Pulse output Active pulse output and Reactive pulse output(or Clock pulse output) Consumption <0.5VA(every phase) |
|
|
|
Installation:
DIN 35mm
Starting current
0.4%Ib
|
| Information | parameter | Company profile | Certificate |
Parameter

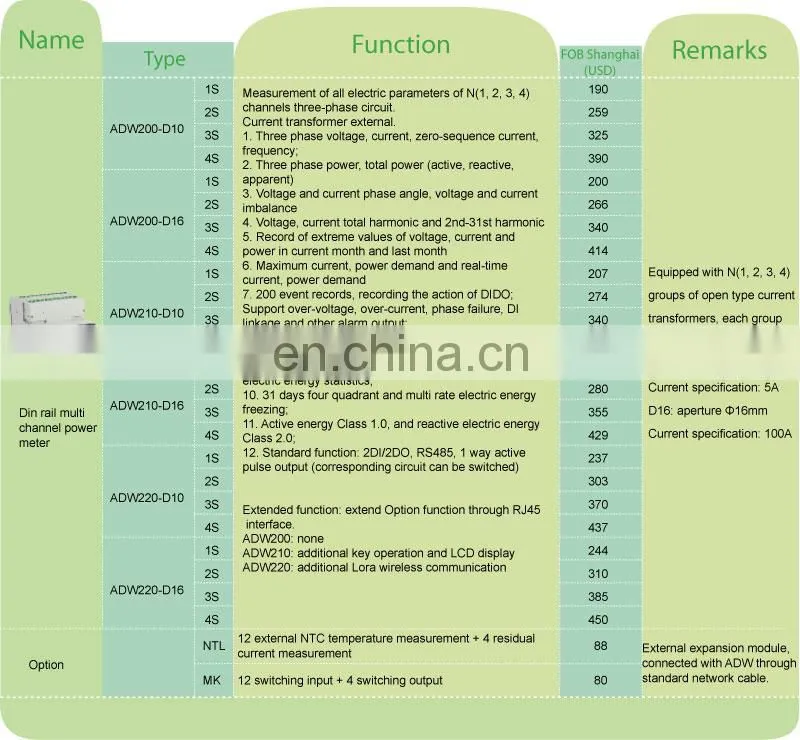

| Quotation |
| Information | parameter | Company profile | Certificate |
