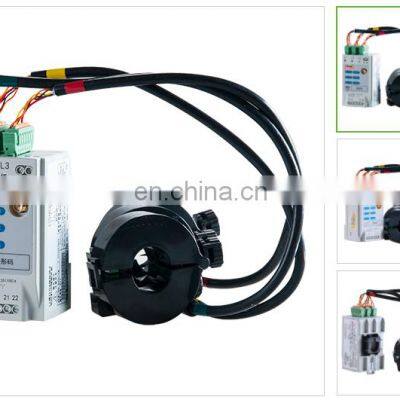

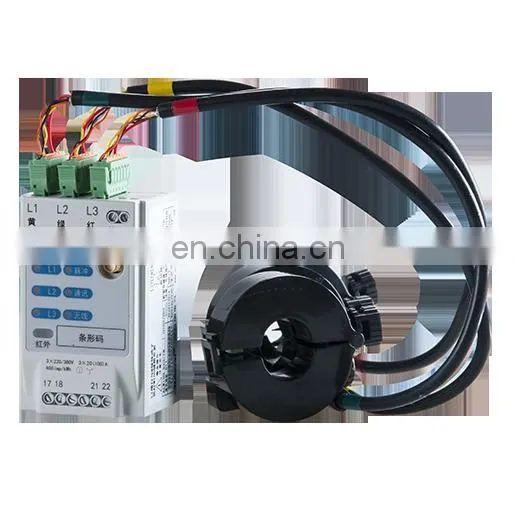

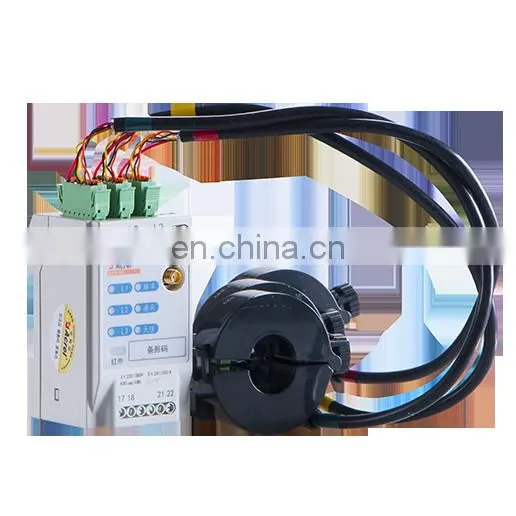

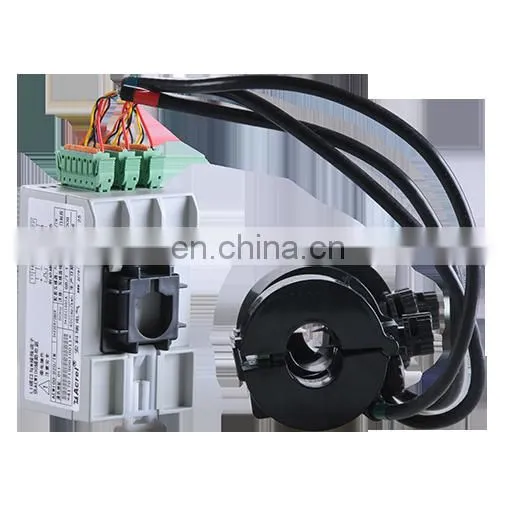

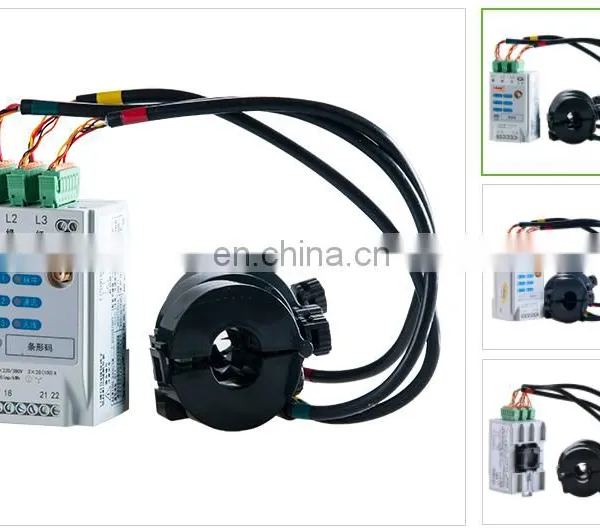

AEW100 wireless measurement meter
Product Description
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.

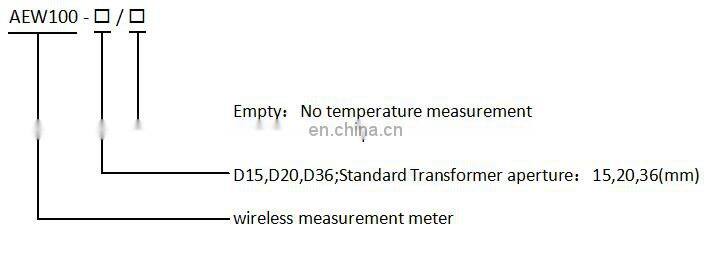

Product specification
Note:
1. Type D15 do not adapt the function of temperature measurement;
2. There is a mobile antenna lay outside can be chosen, and the length of wire is 2 meters.
Main function
| Function | Function description |
| Energy metering | Active kWh (positive and negative) |
| Electrical measurement | U,I, P,Q,S,PF,F |
| Pulse output | Active pulse output |
| LED display | (L1,L2,L3)powered display, pulse, communication, wireless status |
| Communication | Wireless transmission on 470MHz |
| Infrared communication | |
| Communication interface: RS485 |
Electrical performance
| Voltage input | Rated voltage | 3×220/380V |
| Reference frequency | 50Hz | |
| Consumption | <2VA(Each phase) | |
| Current input | Input current | 3×1.5(6)A,3×20(100)A, 3×40(200)A,3×80(400)A,3×120(600)A |
| Start current | 1‰Ib(1.5(6)A) ,4‰Ib | |
| Consumption | <2VA (In maximum current circumstance) | |
Measurement performance | Standard | CE, GB/T17215.321-2008,GB/T17215.322-2008 |
| Active energy accuracy | 1 Class, 0.5S Class(using AKH-0.66/K-15) | |
| Temperature accuracy | ±2℃ | |
| Pulse | Width of pulse | 80±20ms |
| Pulse constant | 6400imp/kWh ,400imp/kWh,200imp/kWh,100imp/kWh,60imp/kWh | |
| Communication | Wireless | Transmission on 470MHz and maximum distance in open space is 1km |
| Infrared communication | The constant baud rate is 1200 | |
| Interface | RS485(A+,B-) | |
| Connection mode | Shielded twisted pair conductors | |
| Protocol | MODBUS-RTU |
Work environment
| Temperature range | Operating temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ | |
| Humidity | ≤95%(No condensation) | |
| Altitude | <2000m | |
Dimension and installing description
| Metering module | L×W×H | 88mm×54mm×50mm | / |
| AKH-0.66/K-15 Mutual inductor | 41mm×35mm×29mm | Secondary terminal wire length 1500mm | |
| AKH-0.66/K-20 Mutual inductor | 90mm×57mm×35mm | Secondary terminal wire length 350mm | |
| AKH-0.66/K-36 Mutual inductor | 109mm×71mm×35mm | Secondary terminal wire length 500mm |

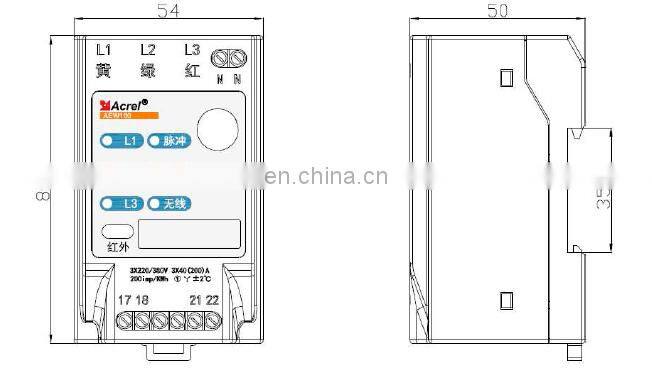

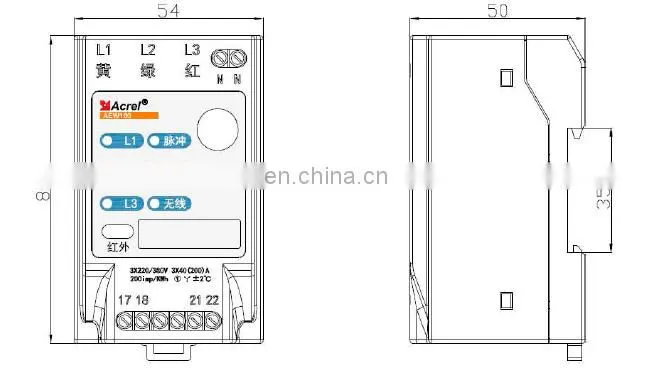

Fig 1 Dimension of AEW100

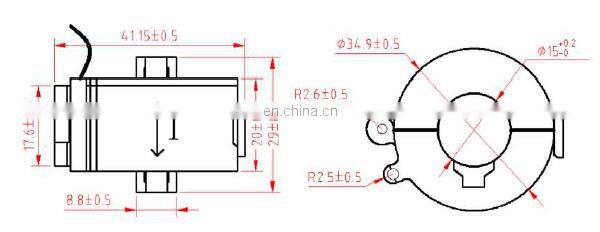

Fig 2 Dimension of mutual inductor AKH-0.66/K-15
Fig 3 Dimension of mutual inductor AKH-0.66/K-20

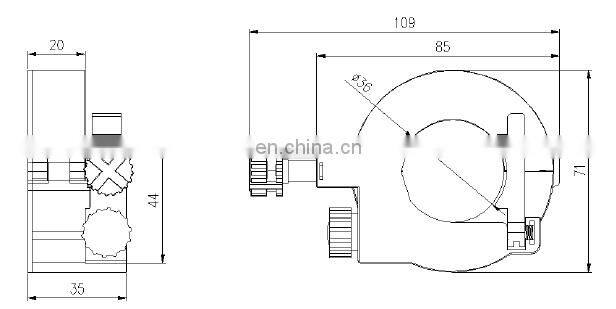

Fig 4 Dimension of mutual inductor AKH-0.66/K-36

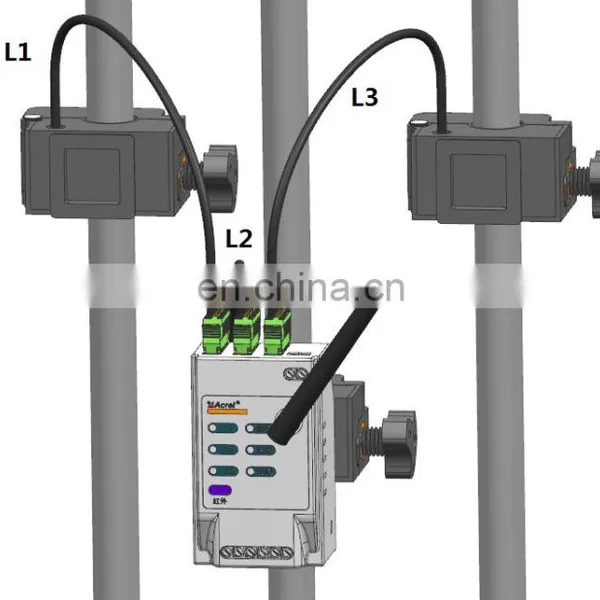

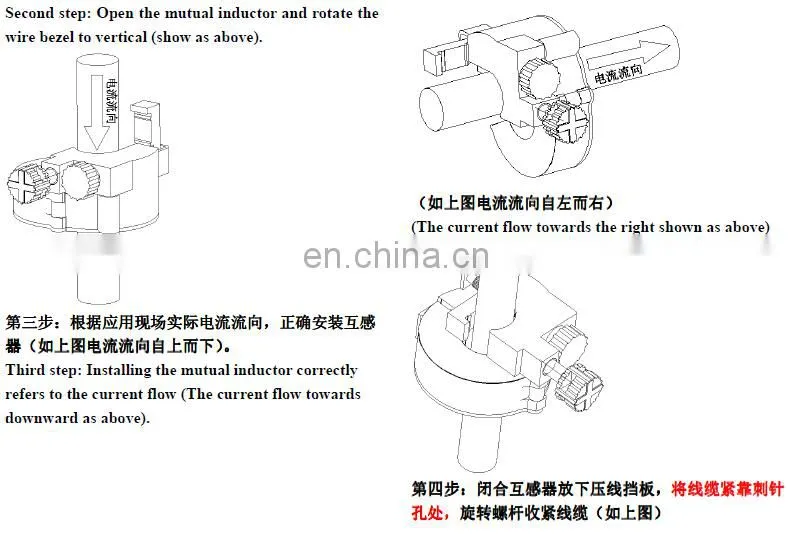

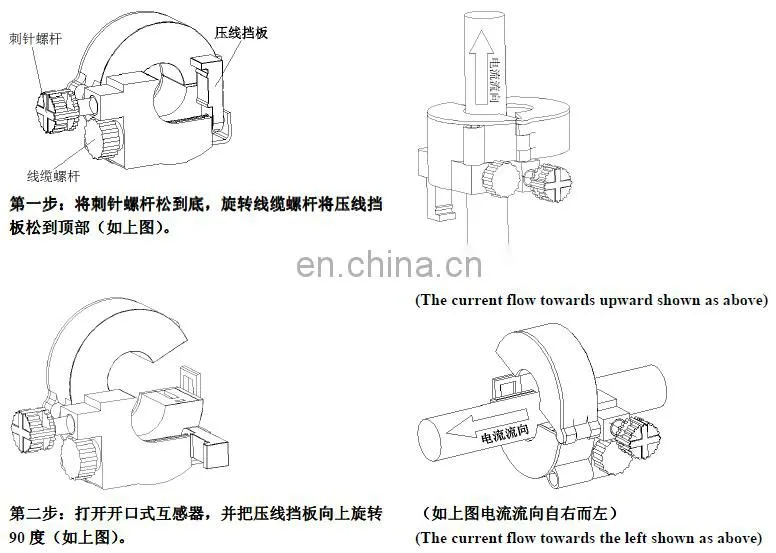

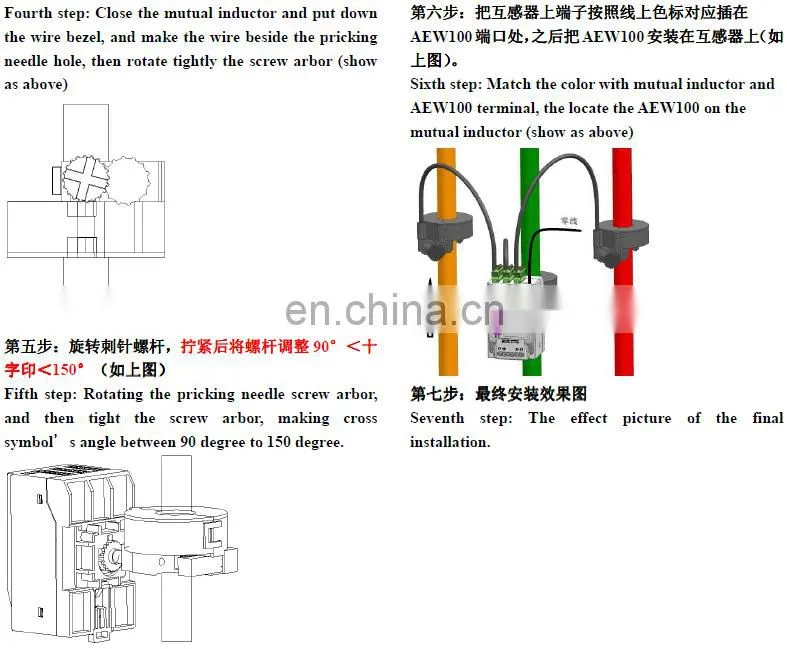

Installing description

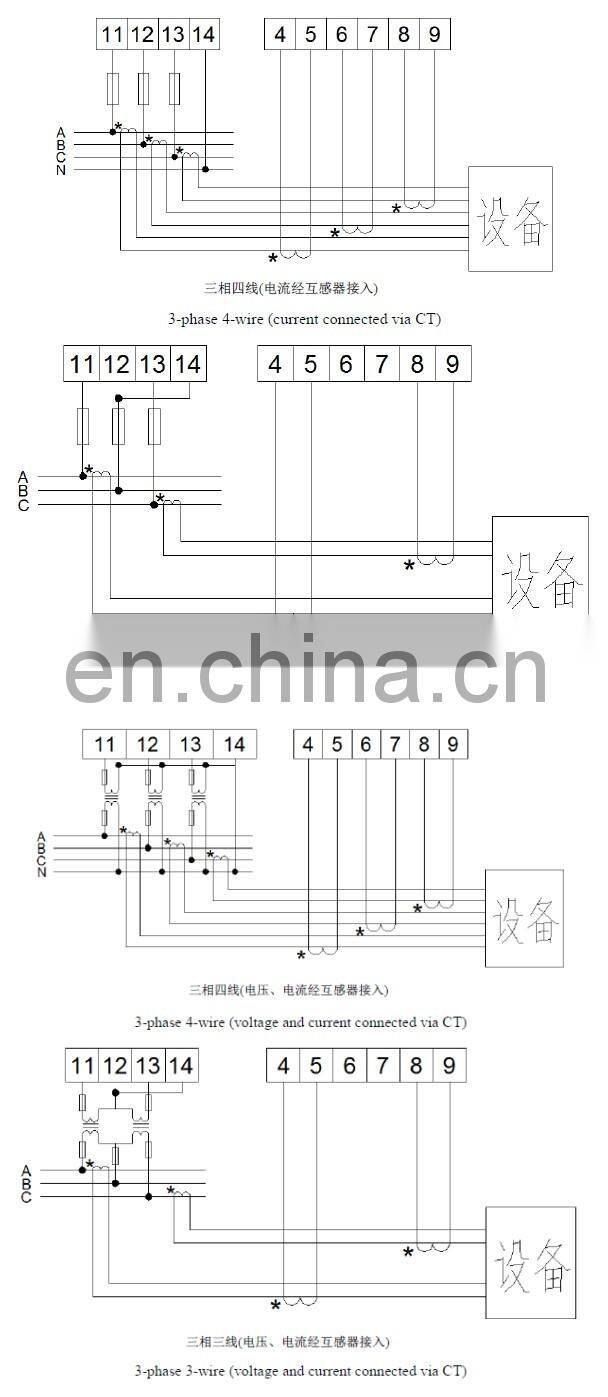

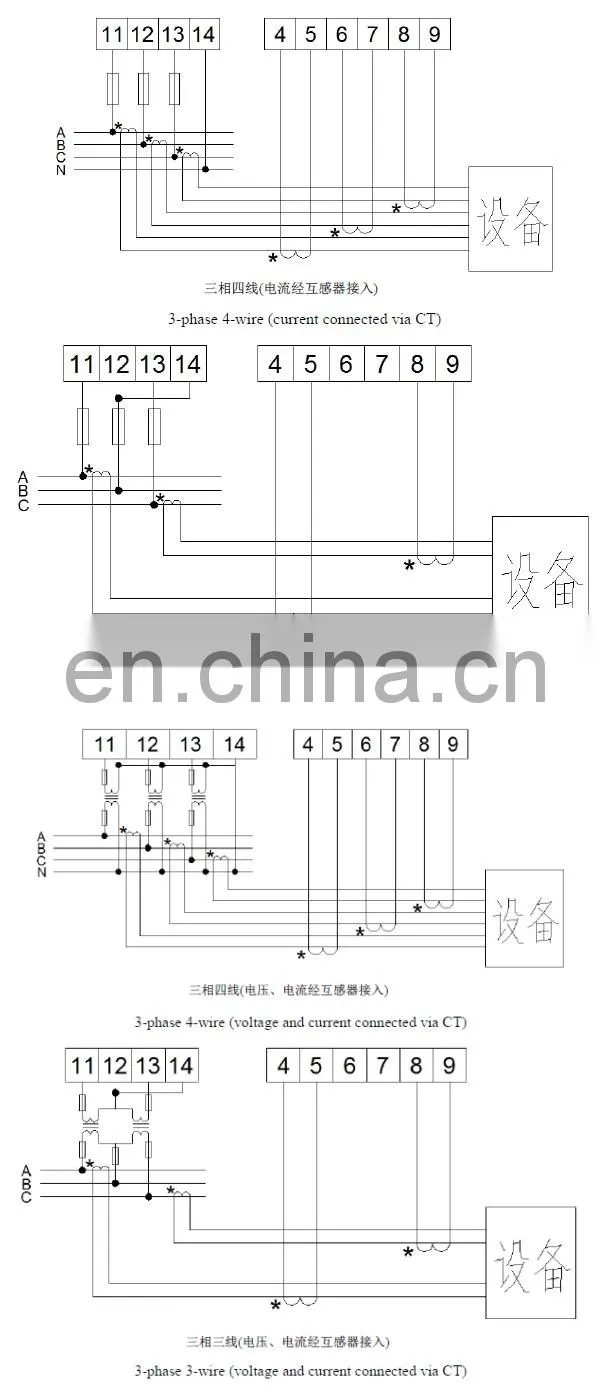

Wiring description
1 The mutual inductor adapts the specification of AKH-0.66/K-20 and AKH-0.66/K-36.
L1, L2, L3 prick in to A, B, C phase respectively, and especially the A phase and N terminal powered for the AEW100. And A, B, C phase transmits the voltage and current to AEW100 by mutual inductor, and
then the AEW100 transmits the single to PC via RS485.
2 The mutual inductor adapts the specification of AKH-0.66/K-10 and AKH-0.66/K-15.
