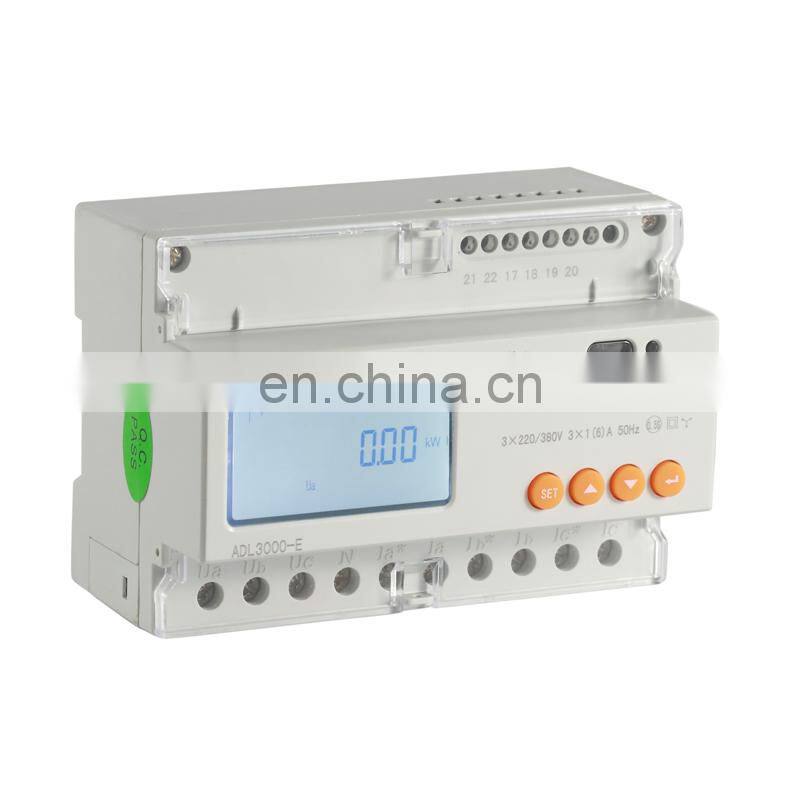

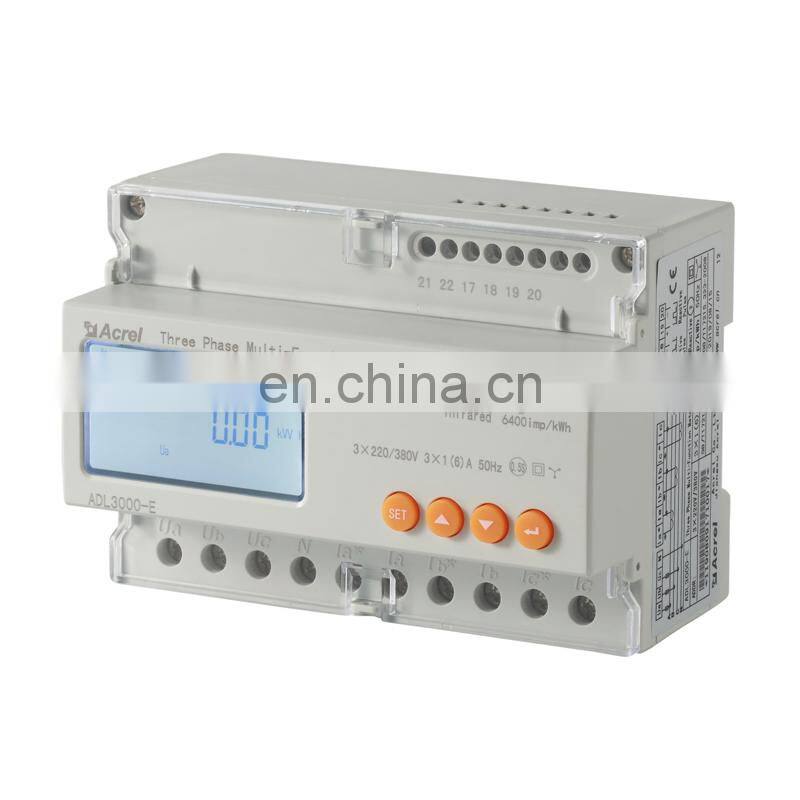

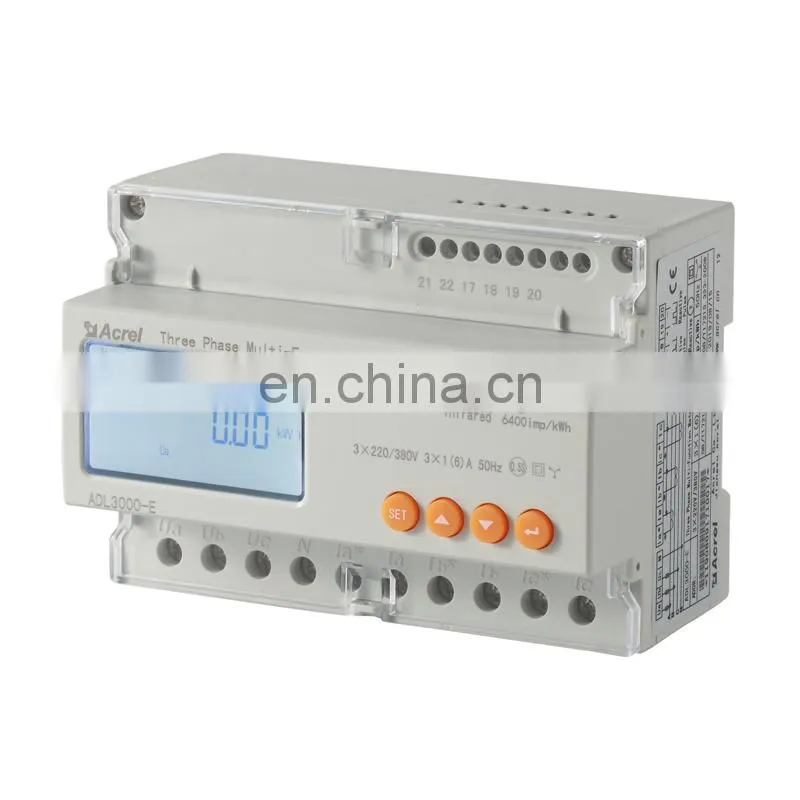

3 Phase Energy Meter LCD Display Din Rail Modbus Energy Meter ADL3000-E/C
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ADW300 Wireless Power Meter LCD Display
-
Acrel ADW300/LR DIN Rail Wireless Harmonic Energy Meter With LORA Communication
-
Acrel ADW200-D10 Three Phase DIN-Rail Multi Circuit Power Meter With Rs485
-
AEW100-D20X Wireless Power Meter LORA Kwh Energy Meter With Split CT
-
Factory Supply ADL300-EY/F Prepaid Electricity Smart ic Three Phase Prepare Meter
-
Din Rail Single-phase Active Power Energy Meter ADL10-E
Product Description

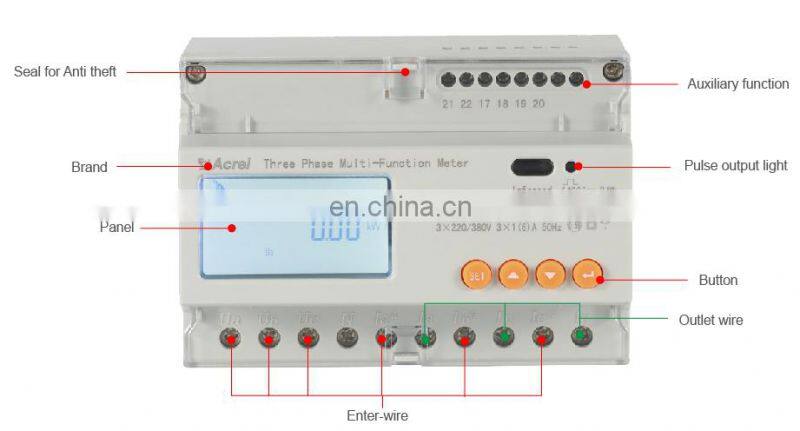

ADL3000-E/C Three Phase Multi-function Energy Meter
Product Description
ADL3000 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU. DTSD1352 can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22
standards.
standards.
Characteristic
* AC3×220V/380V,3×380V,3×57.7V/100V,3×100V
* 3×1(6)A,3×10(80)A* U,I,P,Q,S,PF,kWh,kvarh
* RS485,MODBUS-RTU
* LCD display
* Frozen data
* 2-31st Harmonics
* Alarm
* kWh Class 0.5S,kVarh Class 2
kWh: Class 0.5S,kVarh:Class 2
Frequency
50/60HZ(Optional),range: 45~65HZ
Pulse output
Pulse output kWh/kvarh
Consumption
<10VA(Single phase)
Dimension(L*W*H): 126.5*88*69.5mm
Switch relay:
Magnetic latching relay(ADL3000-E build-in)
Clock: ≤0.5S / per day
Starting current: 0.1%Ib
Specification

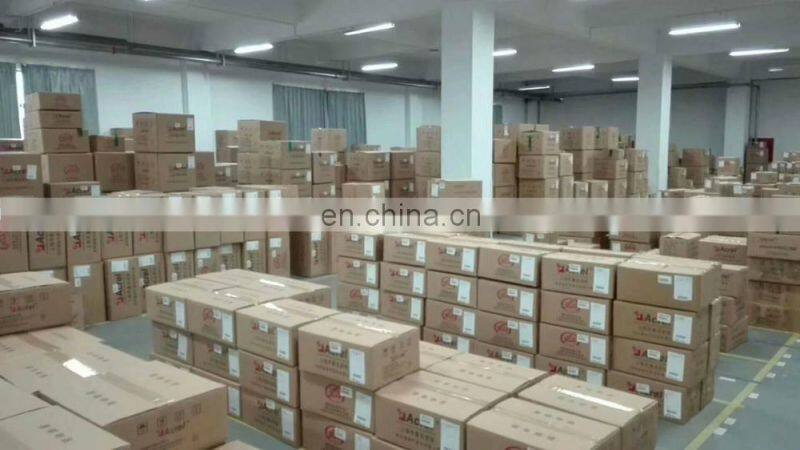

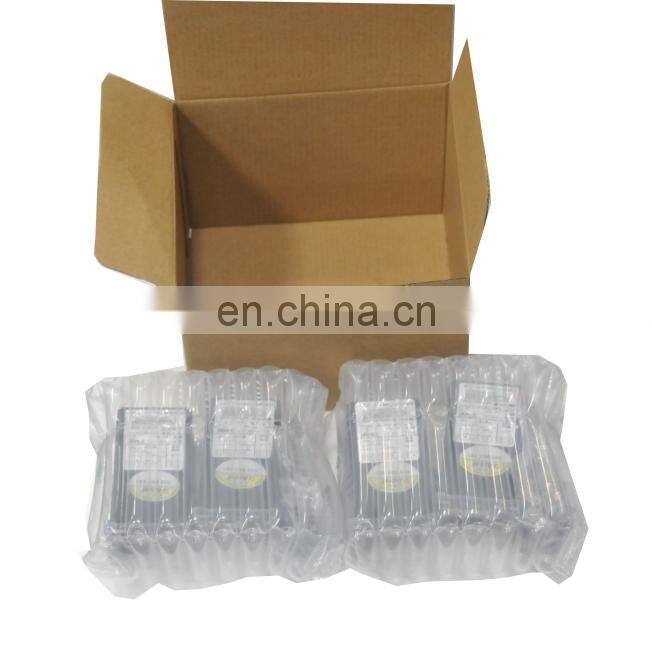

Packing & Delivery
