ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.

Product specification

 Note:
1. Type  D15 do not adapt the function of temperature measurement;
2. There is a mobile antenna lay outside can be chosen, and the length of wire is 2 meters.

Main function

 Electrical performance

 Work environment

Dimension and installing description

Fig 1 Dimension of AEW100

Fig 2 Dimension of mutual inductor AKH-0.66/K-15

Fig 3 Dimension of mutual inductor AKH-0.66/K-20

Fig 4 Dimension of mutual inductor AKH-0.66/K-36

Installing description

Wiring description

1 The mutual inductor adapts the specification of AKH-0.66/K-20 and AKH-0.66/K-36.

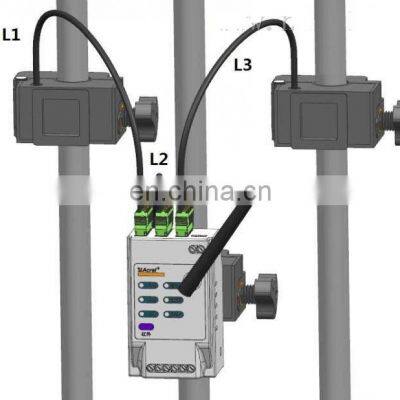

L1, L2, L3 prick in to A, B, C phase respectively, and especially the A phase and N terminal powered for the AEW100. And A, B, C phase transmits the voltage and current to AEW100 by mutual inductor, and
then the AEW100 transmits the single to PC via RS485.
2 The mutual inductor adapts the specification of AKH-0.66/K-10 and AKH-0.66/K-15.
