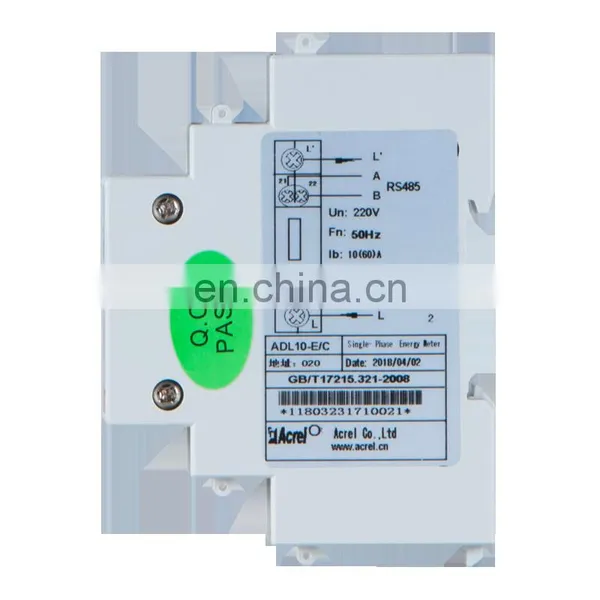

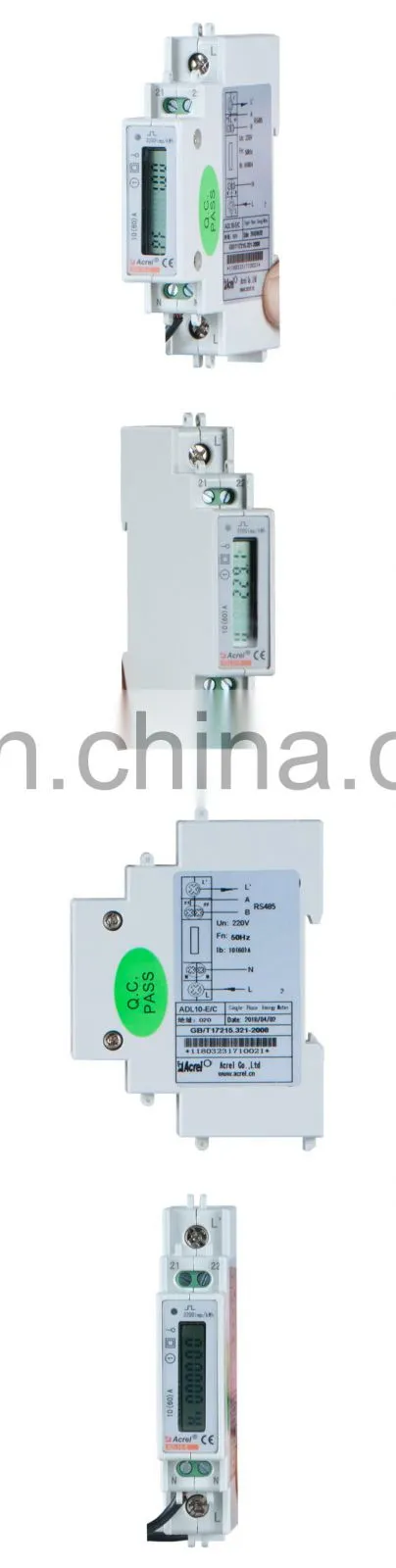

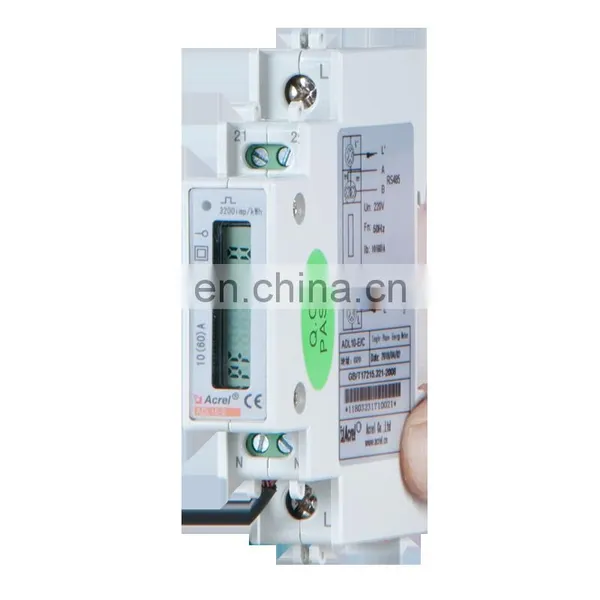

Help CenterADL10-E/C Din Rail Single Phase Energy Meter With RS485 Modbus
Related Products
-
ADL10-E/C Modbus Din Rail Single Phase Energy Meter With 10(60)A 220V InputNegotiableMOQ: 1 -
Single-phase Active Power Reactive Power Measurement Din Rail Energy MeterNegotiableMOQ: 1
-
Multi Tariff Three Phase Electric Meter Din Rail Watt Kwh Power Meter ADL3000-E/FNegotiableMOQ: 1
-
Three Phase Din Rail Kwh Power Meter ADL3000-E LCD DisplayNegotiableMOQ: 1
-
ADL3000-E/C Three Phase Multi-function Energy MeterNegotiableMOQ: 1 Piece
ADL rail- installation Electricity meters
ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC 62053-21,IEC 62053-22 standard.
Technical Feature
| Technical Parameter | ADL10-E/C | |
| Accuracy class | 1class | |
| Rated voltage | AC220V | |
| Current specification | 10(60)A | |
| Reference frequency | 50Hz | |
| Starting current | Direct connecting | 0.004lb |
| Via CT connecting | / | |
| Power consumption | Voltage line | <10VA |
| Current line | <4VA | |
| Electricity pulse output | 80ms±20ms | |
| Digital communication | RS485/MODBUS-RTU | |
| Clock error | ≤0.5s/D | |
| Temperature range |
Normal working temperature:-20~60℃ storage temperature:-30~70℃ |
|
| Relative humidity | ≤95%(No condensation) | |
| Outline (L*W*H) | 18*96*70 | |
| Installation method | TS35mm guide rail | |
Function Description
Measurement of kWh : Single-phase active kWh (positive ane negative)
Measurement of electrical paramenters : Voltage,Current,Power and Power factor
Installation
Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.
Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.

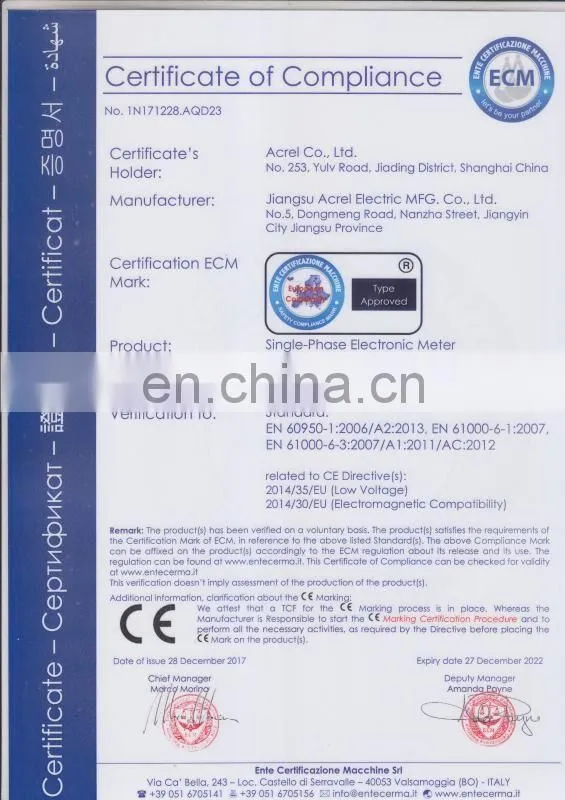

Certificate
Packing
Shipping
